5. INSTALLING AND PIPING THE DSP

5.1 Unpacking the Air Compressor

■ After unpacking the crate, verify that the air compressor is what you have ordered, by referring to Section 15.
"STANDARD SPECIFICATIONS
■ Verify that product is not damaged or deformed during transportation.
Model Nameplate
Main Standard Accessories
Foundation bracket, Foundation bolt/nut (M20)
Output (kW)
Bolt (M20) for Foundation bracket
Fork slot cover
Model
Bolt (M6) for Fork slot cover
Motorized isolation valve
Motorized water isolation valve (※)
Frequency (Hz)
Handle
※ Provided only with

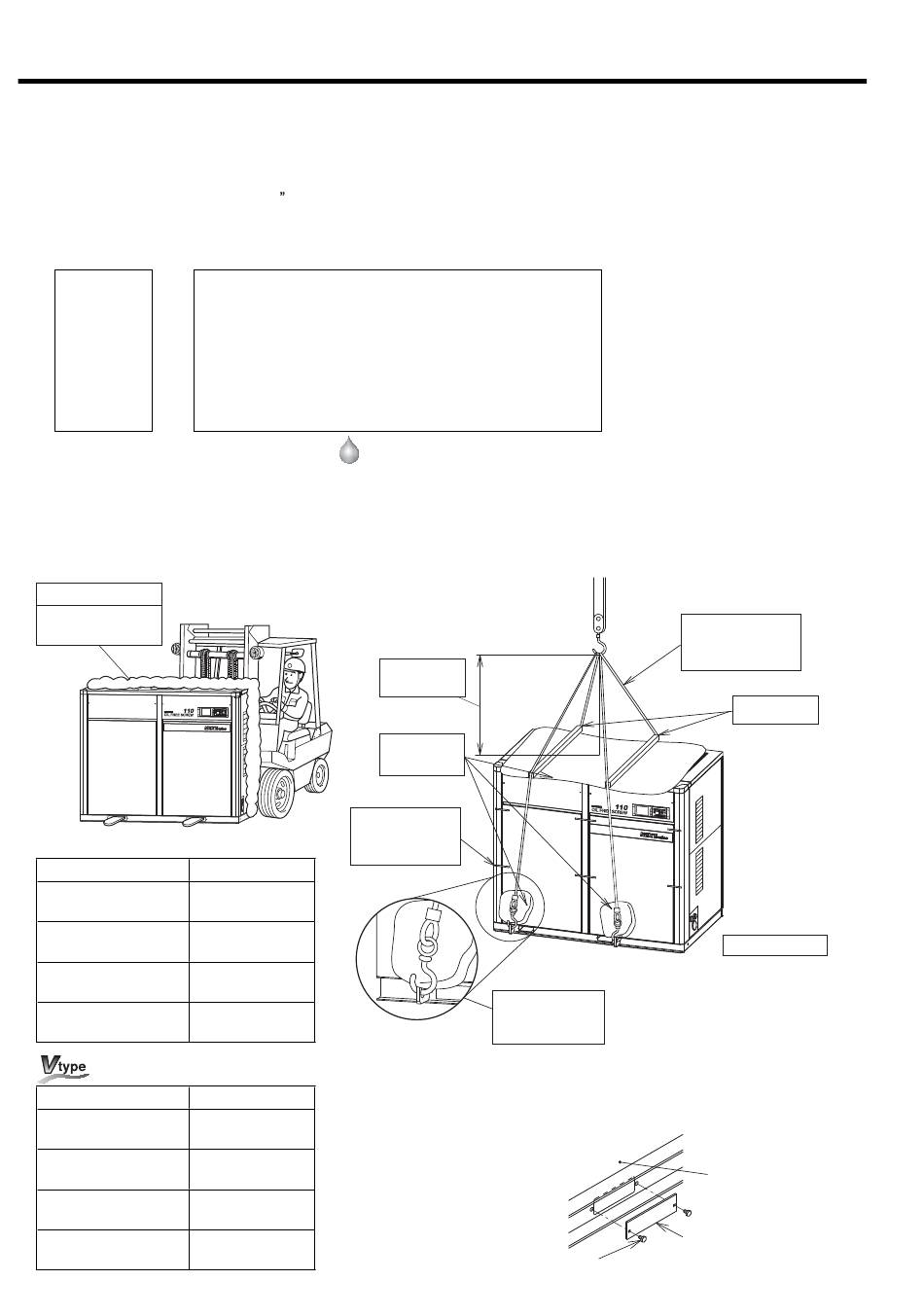

5.2 Conveying the Air Compressor

■  With a Forklift
Pad
Use a pad to protect
the enclosure.
Model
DSP-90A6N
DSP-110A6N
DSP-90W6N
DSP-110W6N
Model
DSP-90VA6N
DSP-110VA6N
DSP-90VW6N
DSP-110VW6N
40
and also by checking the model nameplate.
.
Water-Cooled
Keep the distance of
59 inch (1500 mm)
or more.
Use a pad to
protect the
enclosure panel.
Use the adhesive tapes
to prevent the front door
from detached during
conveyance.
Total Mass
5,250 lbs
(2,380kg)
5,600 lbs
(2,540kg)
5,030 lbs
(2,280kg)
5,380 lbs
(2,440kg)
Total Mass
5,470 lbs
(2,480kg)
5,580 lbs
(2,530kg)
5,250 lbs
(2,380kg)
5,360 lbs
(2,430kg)
4 pieces
4 pieces
4 pieces
8 pieces
1 piece
1 piece
1 piece
■ With a Shop Crane
Use the adhesive tapes
to prevent the front door
from detached during
conveyance.
■ After installing the air compressor, plug the fork slots
with the fork slot covers.
Bolt (M6×15)
Use the strong wires.
Adjust the wire length to
keep the balance when
hoisting it.
Use the attached
tie frame.
Lift the unit balanced.
Common Base
Fork Slot Cover
