Hitachi NEXT Series Instruction Manual page 115
Oil-free rotary screw air compressor
Hide thumbs
Also See for NEXT Series:
- Instruction manual (110 pages) ,
- Service manual (85 pages) ,
- Instruction manual (144 pages)
Advertisement
Table of Contents
14
Control Air Pipe
Water-Cooled
D79
898
H63
E40
A98
849
A92
D26
D99
H83
H91
H90

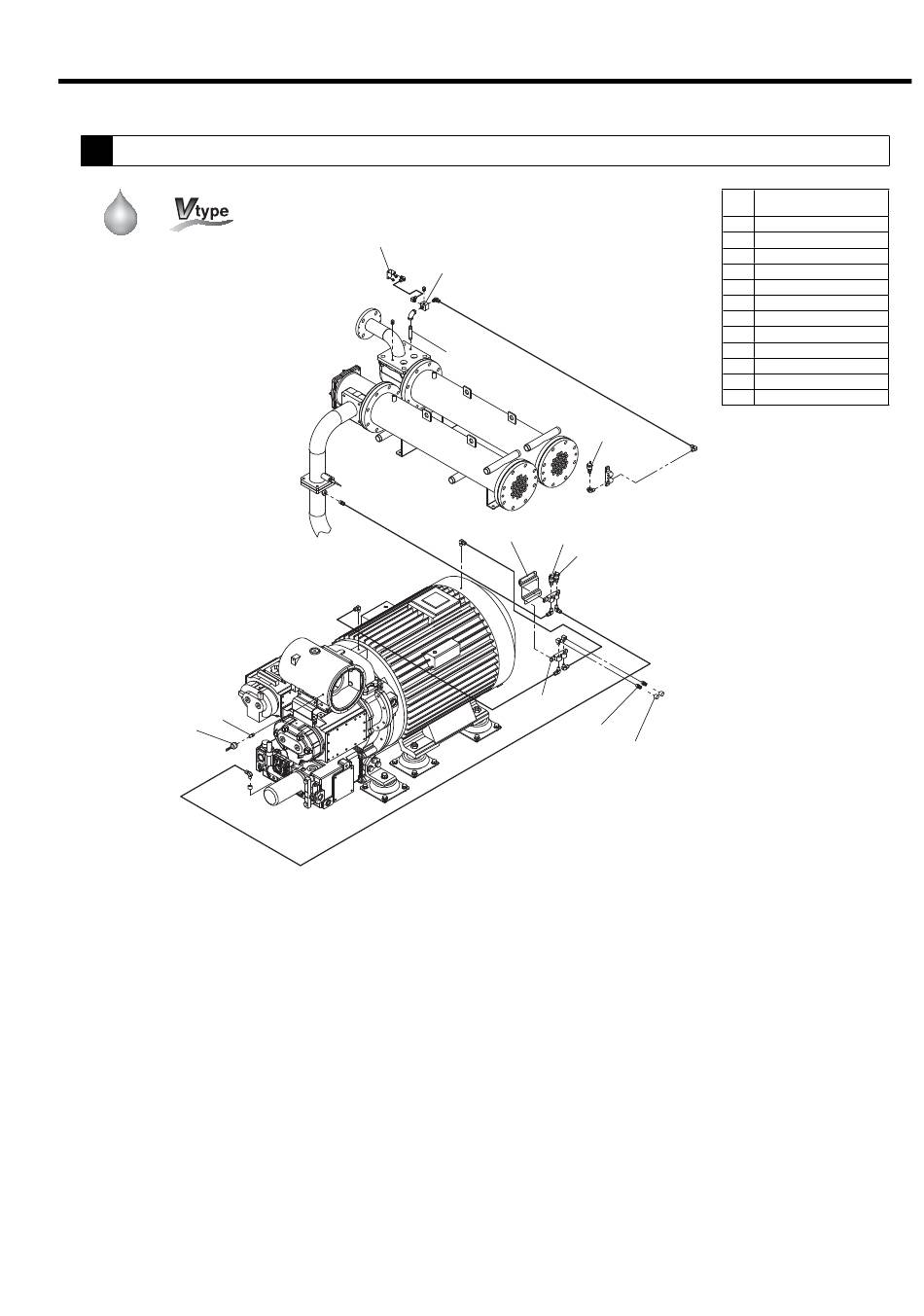

11. PARTS LIST
Ref.
Description
No.
849 Support, pressure sensor
898 Pressure Differential Indicator
A92 Seat, sensor
A98 Nipple
D26 Pressure Sensor (discharge air)
D79 Filter Nipple
D99 Pressure Sensor (interstage)
E40 Seat (1), pressure detecting pipe
H63 Seat (2), pressure detecting pipe
H83 Pressure Sensor (oil)
H90 Grease Cap
H91 Grease Nipple
