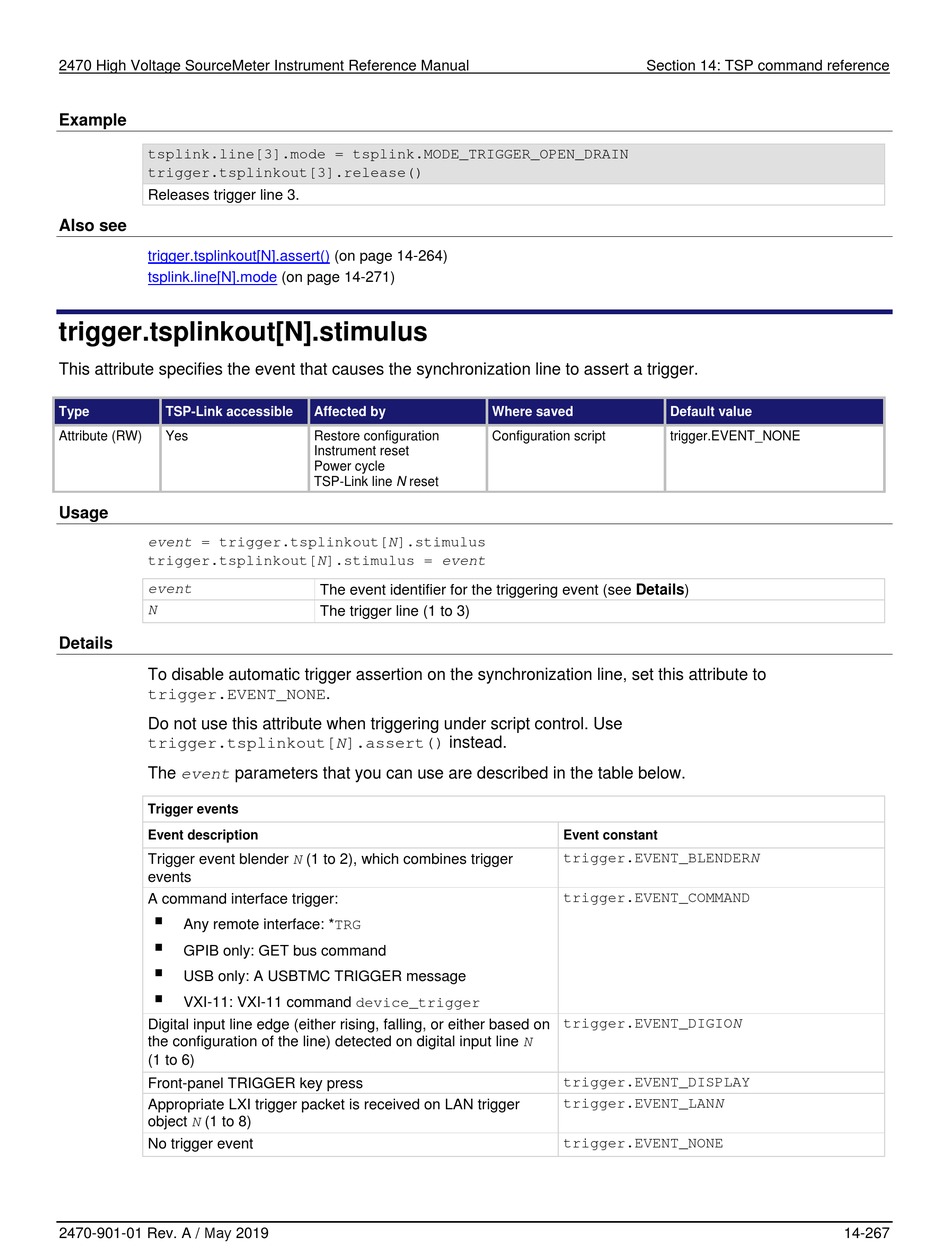

Trigger.tsplinkout[N].Stimulus - Tektronix Keithley SourceMeter 2470 Reference Manual

2470 High Voltage SourceMeter Instrument Reference Manual
Example
tsplink.line[3].mode = tsplink.MODE_TRIGGER_OPEN_DRAIN
trigger.tsplinkout[3].release()
Releases trigger line 3.
Also see
trigger.tsplinkout[N].assert()
tsplink.line[N].mode

trigger.tsplinkout[N].stimulus

This attribute specifies the event that causes the synchronization line to assert a trigger.
Type TSP-Link accessible
Attribute (RW) Yes
Usage
event = trigger.tsplinkout[N].stimulus
trigger.tsplinkout[N].stimulus = event
event
N
Details
To disable automatic trigger assertion on the synchronization line, set this attribute to
trigger.EVENT_NONE.
Do not use this attribute when triggering under script control. Use
trigger.tsplinkout[N].assert() instead.
The event parameters that you can use are described in the table below.
Trigger events
Event description
Trigger event blender N (1 to 2), which combines trigger
events
A command interface trigger:

Any remote interface: *TRG

GPIB only: GET bus command

USB only: A USBTMC TRIGGER message

VXI-11: VXI-11 command device_trigger
Digital input line edge (either rising, falling, or either based on
the configuration of the line) detected on digital input line N
(1 to 6)
Front-panel TRIGGER key press
Appropriate LXI trigger packet is received on LAN trigger
object N (1 to 8)
No trigger event
2470-901-01 Rev. A / May 2019
(on page 14-264)
(on page 14-271)
Affected by
Restore configuration
Instrument reset
Power cycle
TSP-Link line N reset
The event identifier for the triggering event (see Details)
The trigger line (1 to 3)
Section 14: TSP command reference
Where saved Default value
Configuration script trigger.EVENT_NONE
Event constant
trigger.EVENT_BLENDERN
trigger.EVENT_COMMAND
trigger.EVENT_DIGION
trigger.EVENT_DISPLAY
trigger.EVENT_LANN
trigger.EVENT_NONE
14-267
