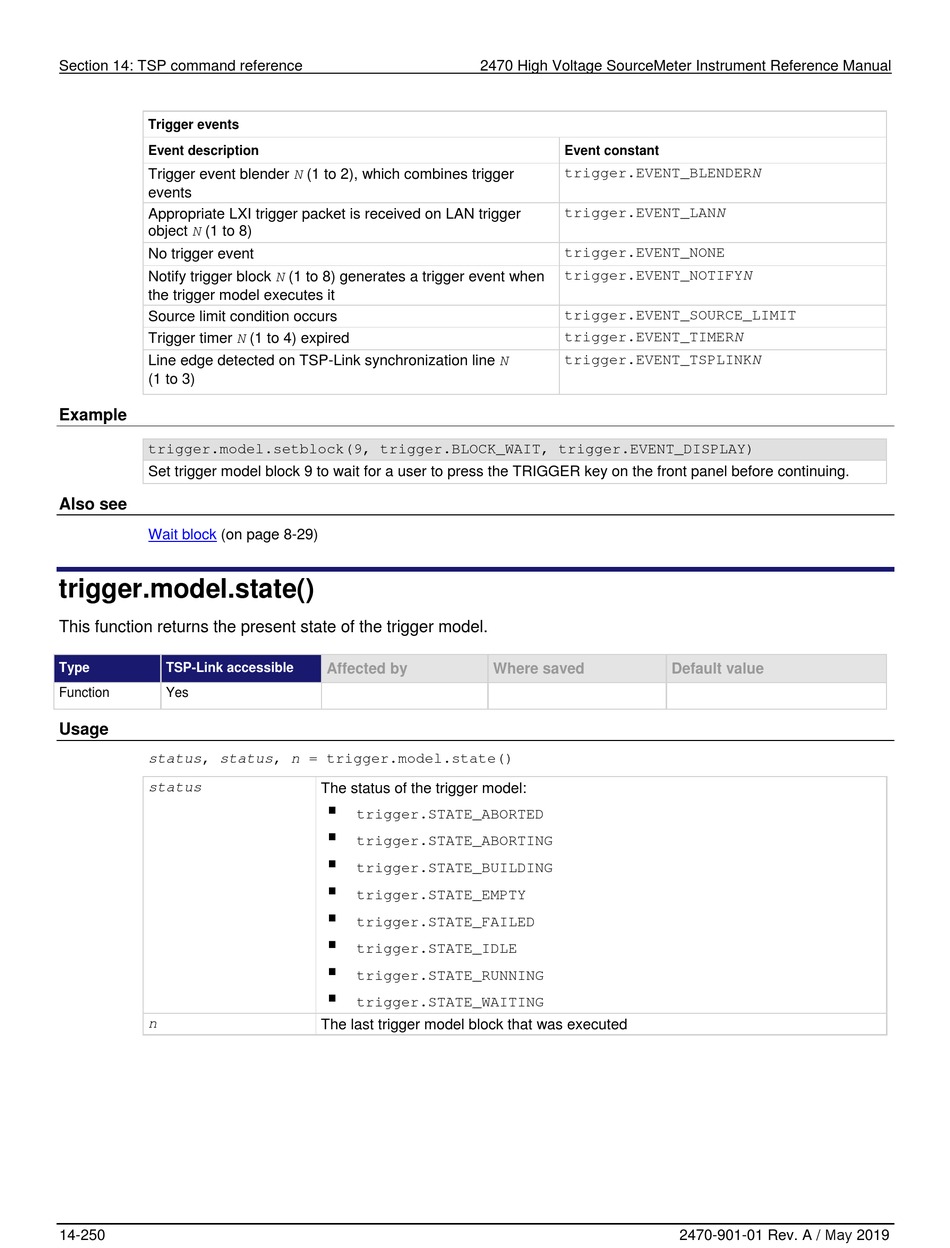

Section 14: TSP command reference
Trigger events
Event description
Trigger event blender N (1 to 2), which combines trigger
events
Appropriate LXI trigger packet is received on LAN trigger
object N (1 to 8)
No trigger event
Notify trigger block N (1 to 8) generates a trigger event when
the trigger model executes it
Source limit condition occurs
Trigger timer N (1 to 4) expired
Line edge detected on TSP-Link synchronization line N
(1 to 3)
Example
trigger.model.setblock(9, trigger.BLOCK_WAIT, trigger.EVENT_DISPLAY)
Set trigger model block 9 to wait for a user to press the TRIGGER key on the front panel before continuing.
Also see
Wait block (on page 8-29)

trigger.model.state()

This function returns the present state of the trigger model.
Type TSP-Link accessible
Function Yes
Usage
status, status, n = trigger.model.state()
status
n
14-250
2470 High Voltage SourceMeter Instrument Reference Manual
Affected by Where saved
The status of the trigger model:

trigger.STATE_ABORTED

trigger.STATE_ABORTING

trigger.STATE_BUILDING

trigger.STATE_EMPTY

trigger.STATE_FAILED

trigger.STATE_IDLE

trigger.STATE_RUNNING

trigger.STATE_WAITING
The last trigger model block that was executed
Event constant
trigger.EVENT_BLENDERN
trigger.EVENT_LANN
trigger.EVENT_NONE
trigger.EVENT_NOTIFYN
trigger.EVENT_SOURCE_LIMIT
trigger.EVENT_TIMERN
trigger.EVENT_TSPLINKN
Default value
2470-901-01 Rev. A / May 2019
