Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW

Chapter 3:

NOTE

2085-OX32-SC

Tab on CCW

Before you start, if needed, install the latest version of Rockwell Automation's

Connected Components Workbench (CCW) Standard Edition.

NOTE

You can directly control channel output through the CCW output variable

or your own ladder program. No default configuration is required. The

modules do NOT use the third-party, MCC tool for configuration.

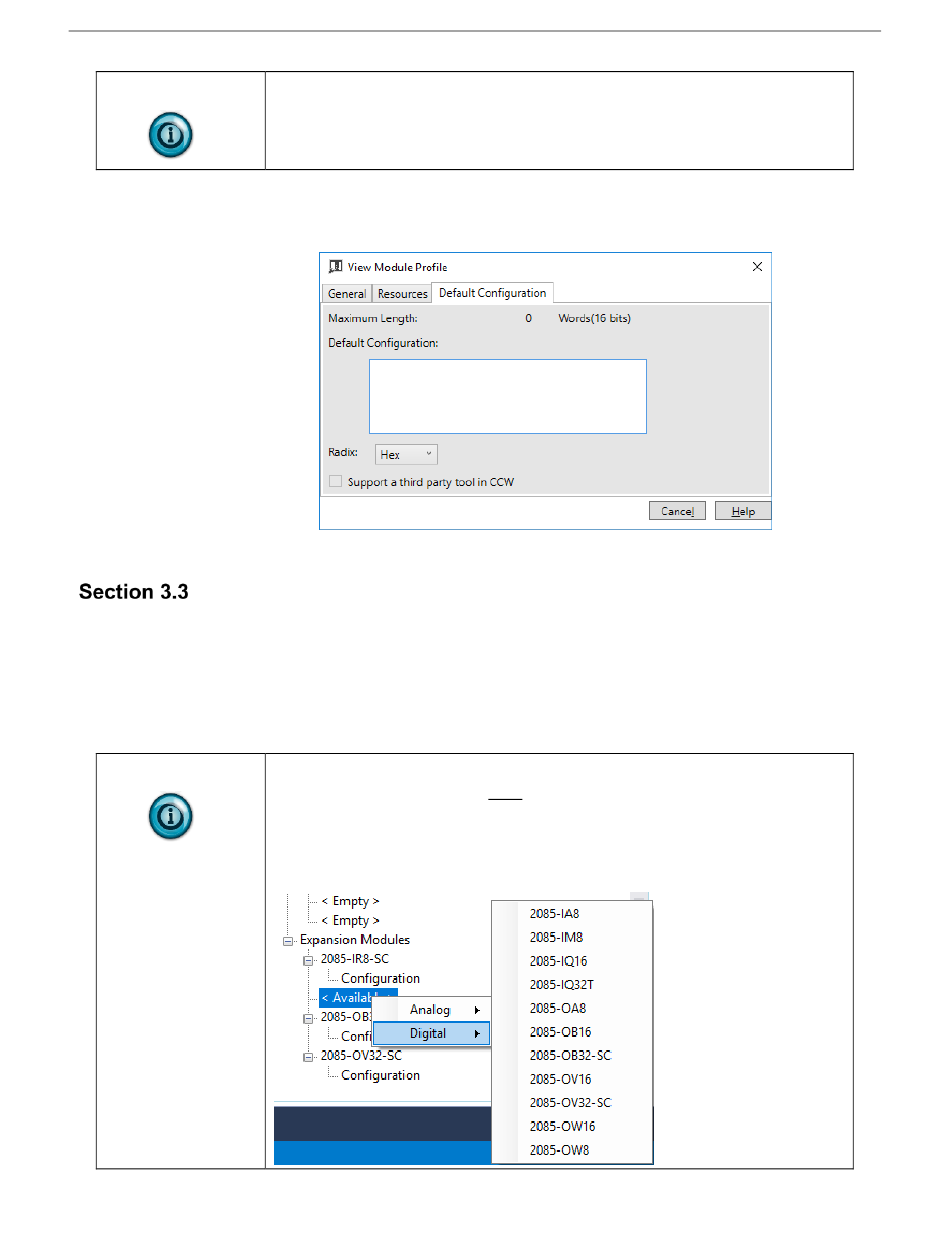

5. To view default configuration information, click the Default

Configuration tab:

The modules do not use the third-party, MCC tool for configuration.

Using the Module Profile Tool to import the 2085-OX32-SC AOP into

CCW software is necessary only if you are using a CCW version earlier

than 11.00.00. For information on manually importing an AOP file, see

Appendix A. For Version 11.00.00 and later, the modules are already

available as a selection from the CCW Expansion Modules drop-down

menu:

User's Manual Pub. 0300309-01 Rev. A

3-5
