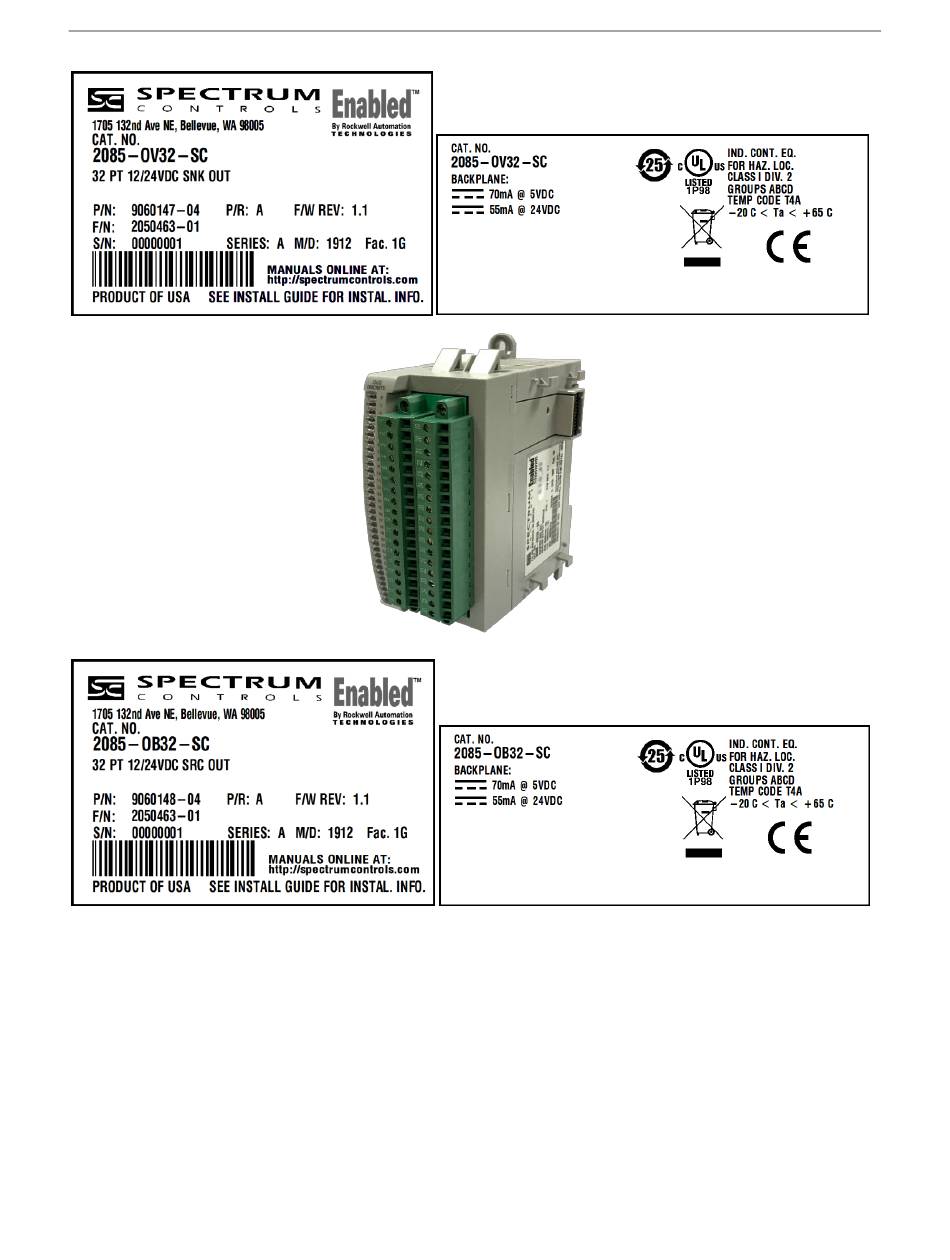

The discrete module supports:
•
32 Discrete Sink Output Channels (applies to 2085-OV32-SC)
•
32 Discrete Source Output Channels (applies to 2085-OB32-SC).
Both discrete modules control discrete outputs based on commanded outputs
from a controller. The controller monitors to see if any of the 32 output channels
is to be activated:
•
If a channel is determined to be commanded to be ON, the 2085-OB32-
SC module provides for an electronic switch to close between the
channel output control pin and the +24 VDC POWER pin on the terminal
block.
