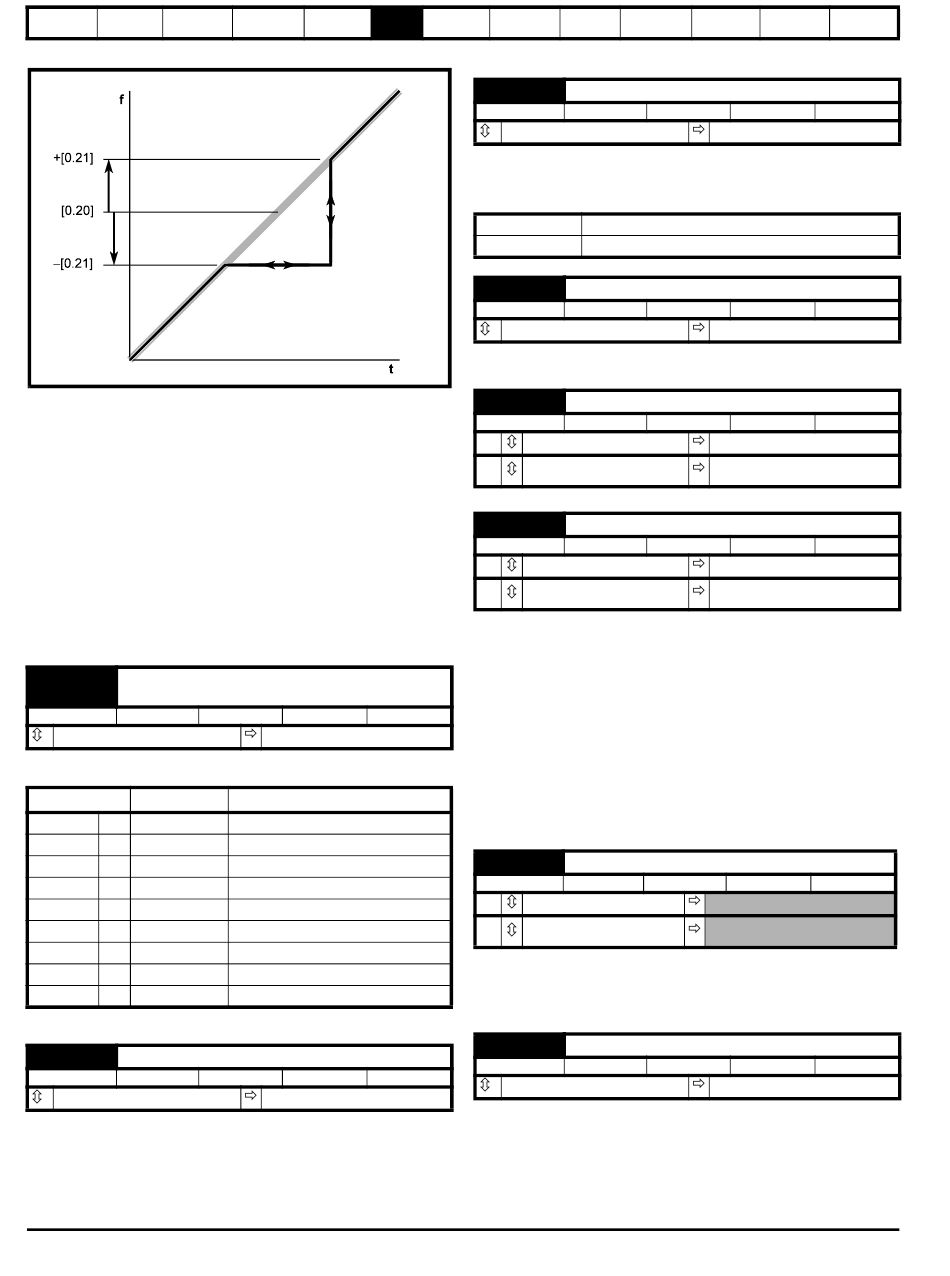

Figure 6-5 Action of skip frequency/speed 1 and skip band 1
When the frequency/speed (input) reference ascends into a skip band,
the resulting (output) reference remains at the lower edge of the band
until the input reference has reached the upper edge of the band. The
output reference then jumps to the value of the input reference.
When the frequency/speed (input) reference descends into a skip band,
the resulting (output) reference jumps immediately to the lower edge of
the band.
Example
Skip speed 1 = 250rpm
Enter 250 in Pr 0.20
Required skip band = 60rpm
Enter 30 in Pr 0.21
(Skip band = 2 x Value of skip-band parameter.)
6.2.9 Analog input modes
0.24 {7.06} Analog input 1 mode selector
0.25 {7.11} Analog input 2 mode selector
RW Txt
0 to 8
Set the required mode as follows:
Setting Input signal
VOLt (0) ±10V
0-20 (1) 0 to 20mA
20-0 (2) 20mA to 0
4-20.tr (3) 4mA to 20mA
20-4.tr (4) 20mA to 4mA
4-20.Lo (5) 4mA to 20mA
20-4.Lo (6) 20mA to 4mA
4-20.Pr (7) 4mA to 20mA
20-4.Pr (8) 20mA to 4mA
0.26 {7.14} Analog input 2 destination parameter
RW Txt
Pr 0.00 to Pr 21.50 (Menu param.)
A signal applied to an input terminal is converted into a value which is
applied to a parameter. The function of this parameter determines the
function of the terminal.
By default, terminal 7 (Analog input 2) is assigned to Pr 1.37 Analog
reference 2. Use Pr 0.26 to change the function of terminal 7.
