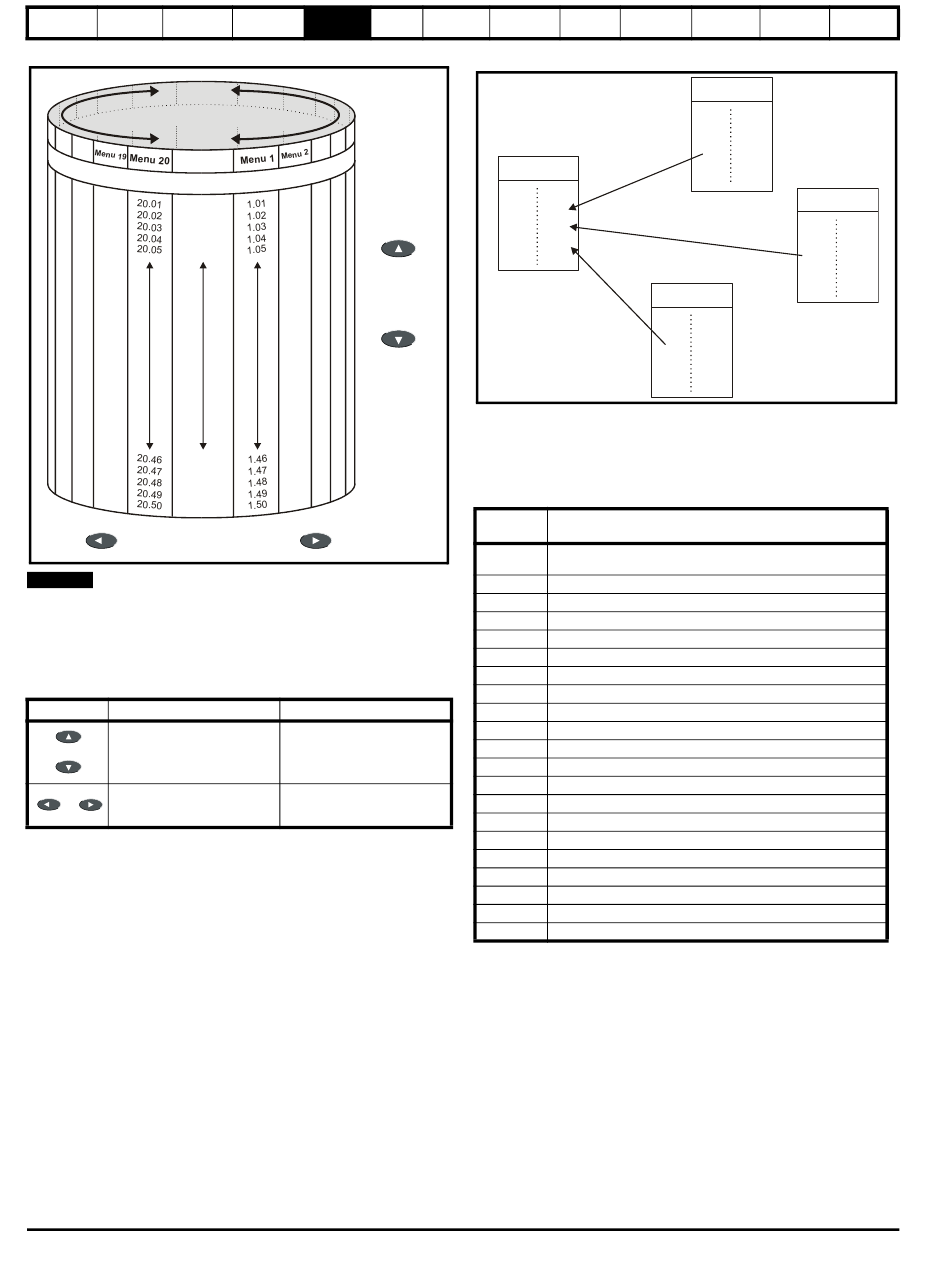

Figure 5-3 Menu Structure

Menu 0

....xx.00....
0.01
0.02
0.03
0.04
0.05
0.46
0.47
0.48
0.49
0.50
Moves between Menus
NOTE
Menu 20 is only present when a large option module is present.
5.4

Advanced keypad functions

The following short-cuts can be used to speed up navigation of the drive
parameters and editing of parameters.
Key Press Parameter View Mode
xx.00
+ jumps to
+ 00.yy
jumps to
5.5 Menu 0
Menu 0 is used to bring together various commonly used parameters for
basic easy set up of the drive.
Appropriate parameters are cloned from the advanced menus into menu
0 and thus exist in both locations.
60
Electrical Getting
Menu 0
Installation Started
Moves
between
parameters
Parameter Edit Mode
Sets value to 0
Jumps to LSB
www.controltechniques.com
Running
Optimisation Macros
the motor
Figure 5-4 Menu 0 Cloning
Menu 0
0.04 5
0.05 0
0.06 150
5.6

Advanced menus

The advanced menus consist of groups or parameters appropriate to a
specific function or feature of the drive as follows:
Menu
Description
number
Commonly used basic set up parameters for quick / easy
0
programming
1 Speed references and limits
2 Ramps (accel / decel)
3 Speed feedback / frequency slaving
4 Current control
5 Machine control
6 Sequencing logic
7 Analog I/O
8 Digital I/O
9 Programmable logic
10 Status flags / trip log
11 Menu 0 customisation / drive specific ratings
12 Programmable thresholds
13 Digital lock / orientation
14 Programmable PID function
15 Regen
16 Small option module set up
17 Large option module set up
18 Application menu 1
19 Application menu 2
20 Large option module set up
