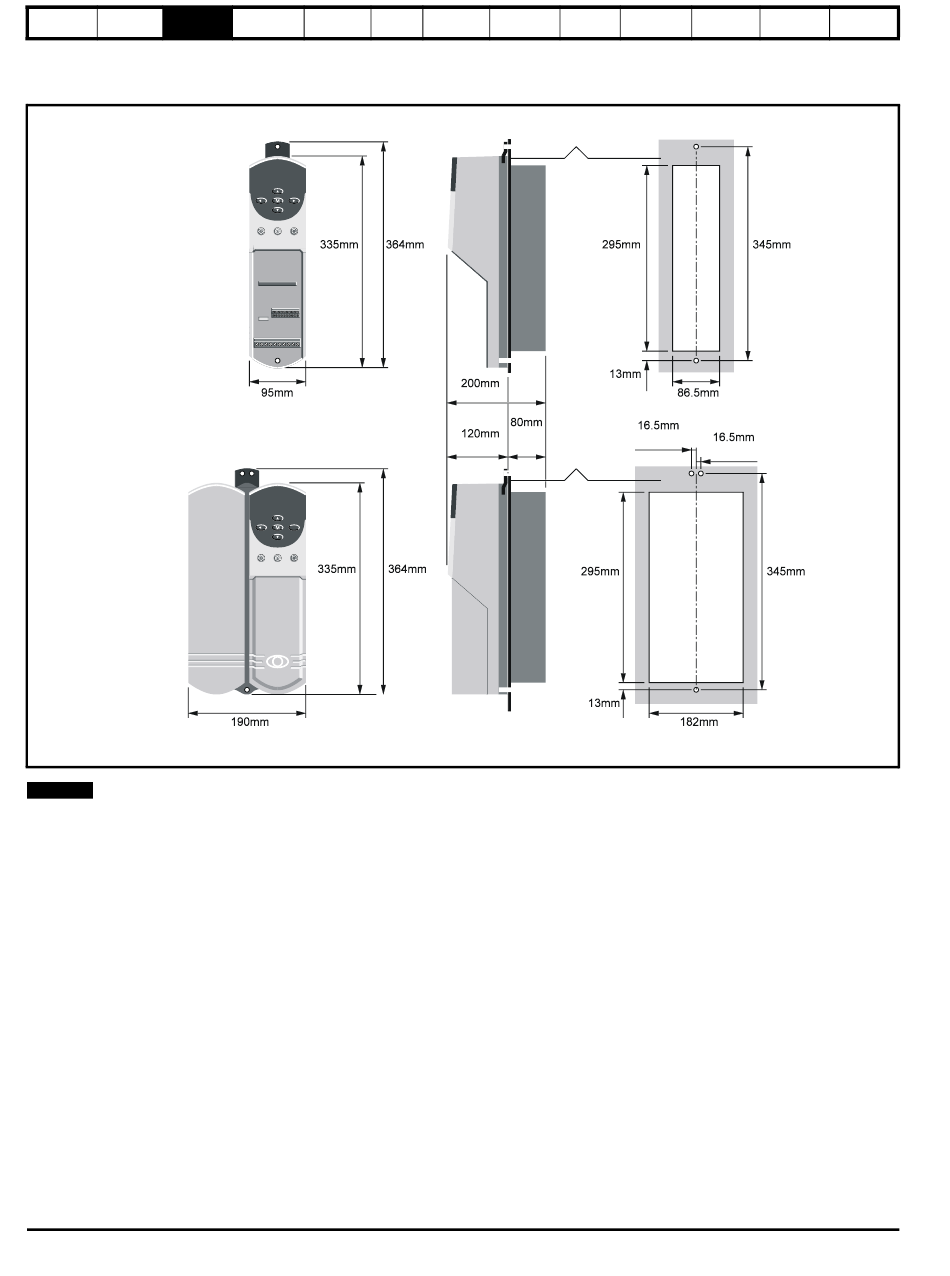

Figure 3-8 Through-panel mounting of model sizes 1 and 2
Model
size 1
Model
size 2
N
NOTE
When drives are through-panel mounted, a baffle plate is required to
ensure the correct level of air-flow is maintained through the heatsink.
For further information, please refer to section 3.9 Baffle plates on
page 28.
18
Electrical Getting
Menu 0
Installation Started
13.189in 14.331in
3.740in
13.189in 14.331in
7.480in
www.controltechniques.com
Running
Optimisation Macros
the motor
Back-plate
11.614in
0.512in
7.874in
3.150
4.724in
in
Back-plate
11.614in
0.512in
Advanced Technical
Diagnostics
Parameters Data
13.583in
3.406in
0.650in
0.650in
13.583in
7.165in
