Danfoss Cascade Operating Instructions Manual page 16

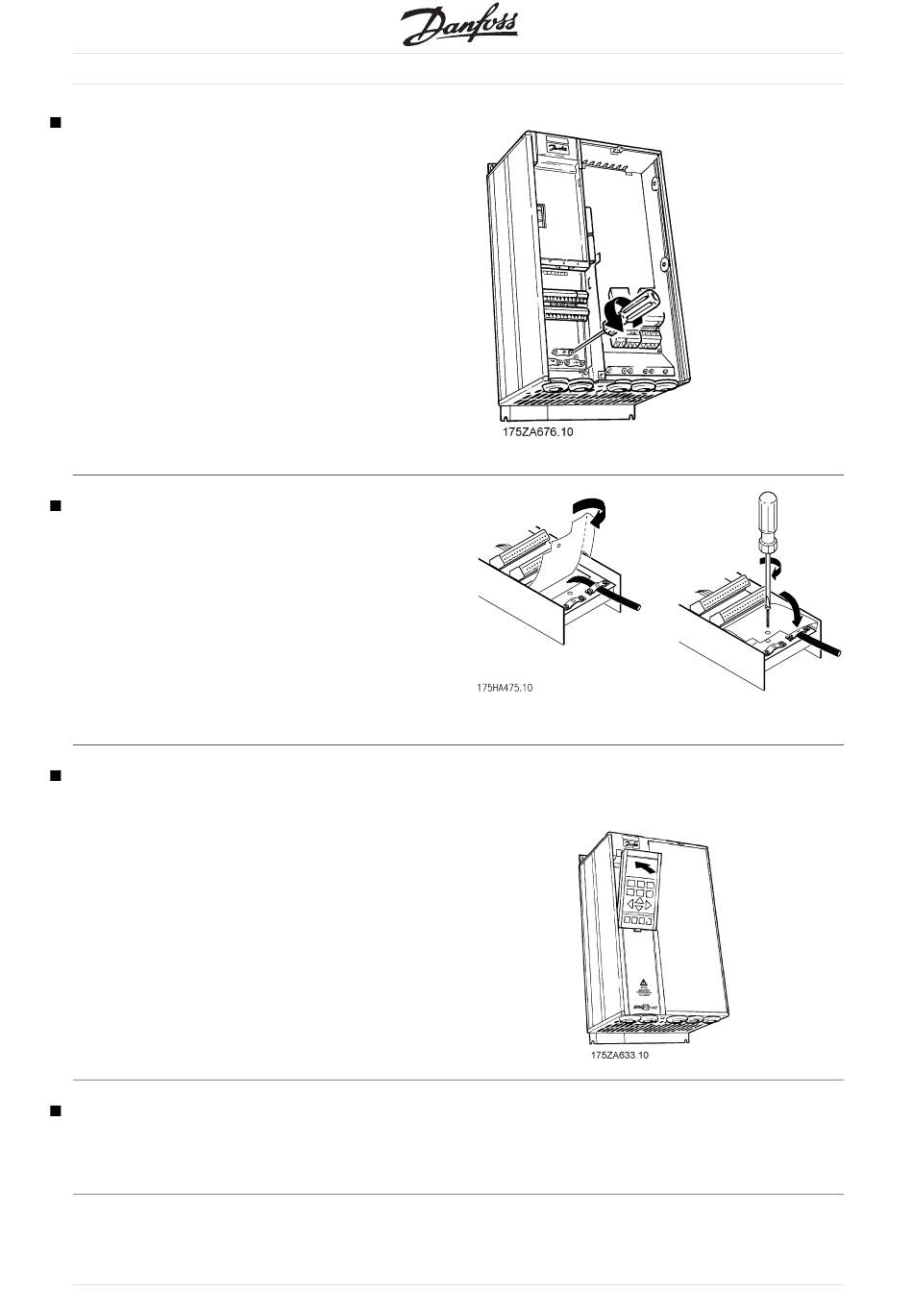

12. Remove Wiring Clamp Mounting Fixture
• Option card insulation pad is designed to use top
most cable wiring clamp screw hole for attaching.
•
Use screw driver to remove top most wiring clamp.
13. Reconnect VLT Control Terminals and
Secure Option Card InsulationPad
• Reconnect VLT control terminals removed in step
2 by pressing firmly into corresponding
terminal socket.
• Crease option card insulation pad flap and insert
into slot in side of control card cassette.
• Attach insulation pad to top most clamp position
with one screw from removed wiring clamp.
•
Route VLT control terminal wiring through
bottom left wiring clamp and fasten.
14. Final Reassembly
• Secure access cover to internal VLT components.
• Replace LCP keypad by positioning guide slots
at bottom of cradle and snaping into place.
• Attach terminal protective cover by positioning
guide pins at bottom of cover into control card
cassette and snaping into place.
Transmitter wiring
Please refer to chapter 10, Feedback
Transmitter Wiring.
16
Cascade Controller Option
MG.60.I3.02 - VLT is a registered Danfoss trademark
