Danfoss Cascade Operating Instructions Manual page 12

5. Cascade OptionCard Ribbon Cable Routing
Electronic components of VLT and
cascade controller option card are
sensitive to electrostatic discharge
(ESD). Follow proper ESD procedures to
prevent component damage. ESD procedures
to prevent component damage.

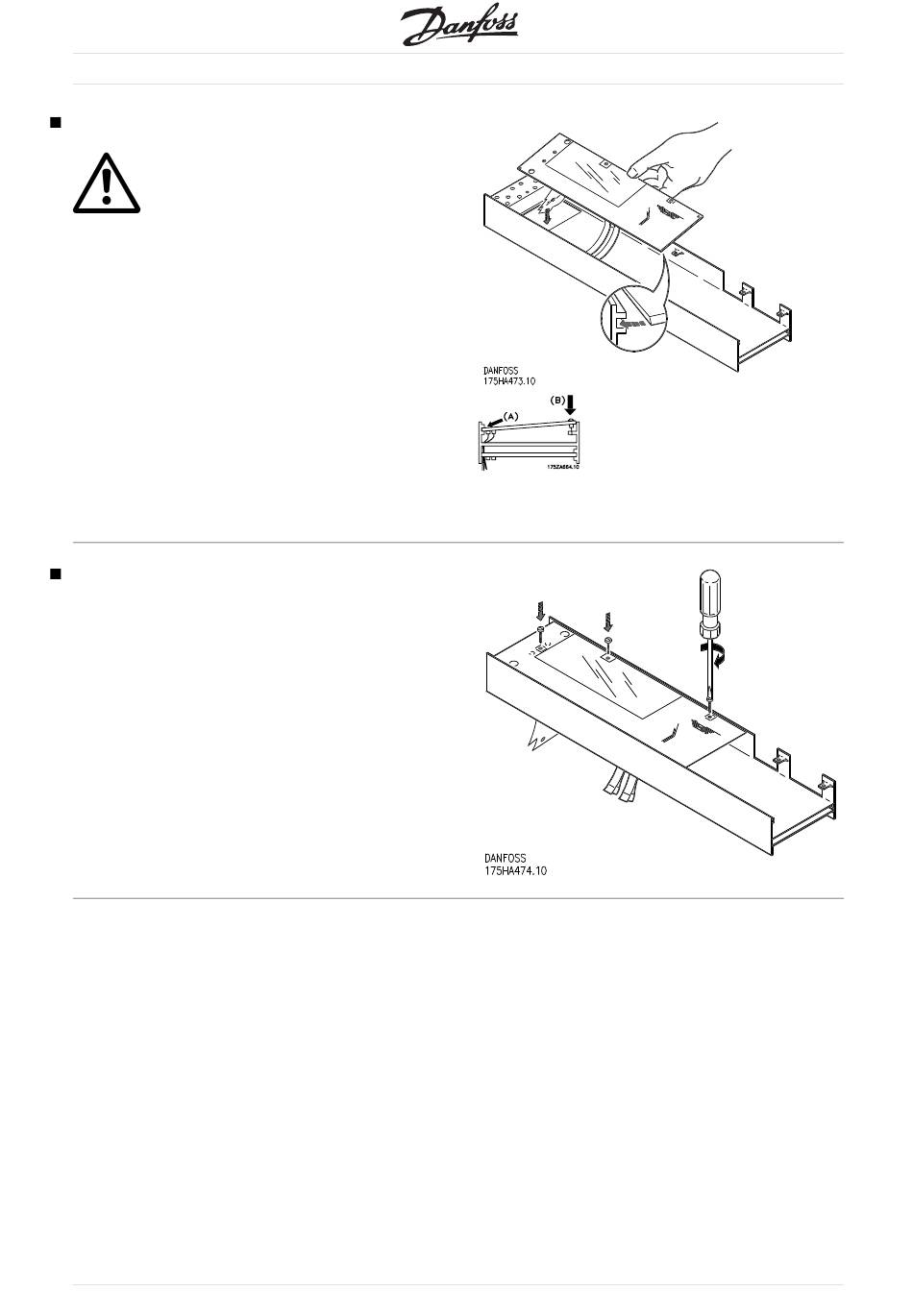

• Route ribbon cables from cascade controller
option card through slot at side of VLT
control board cassette. Option card mounts
with component side down.
•
Feed plastic option card insulation pad through
terminal opening in control board cassette.
•
Insert edge of option card into slot (A)
in side of cassette.
•
Align opposite side of card with mounting
holes (B) provided.
6. Secure Option Card
• Secure option card to control board cassette
with 3 self-tapping screws and washers provided.
Use a Torx T-10 screw driver.
12
Cascade Controller Option
MG.60.I3.02 - VLT is a registered Danfoss trademark
