Feedback Transmitter Wiring

Connecting feedback transmitters

Terminal 12 and 13 of the VLT provide access to a
24 VDC, 200 mA power supply. This can be used
to power remote transmitters, so an external power
supply is generally not needed. The diagrams below
show how to wire two- and three-wire transmitters.

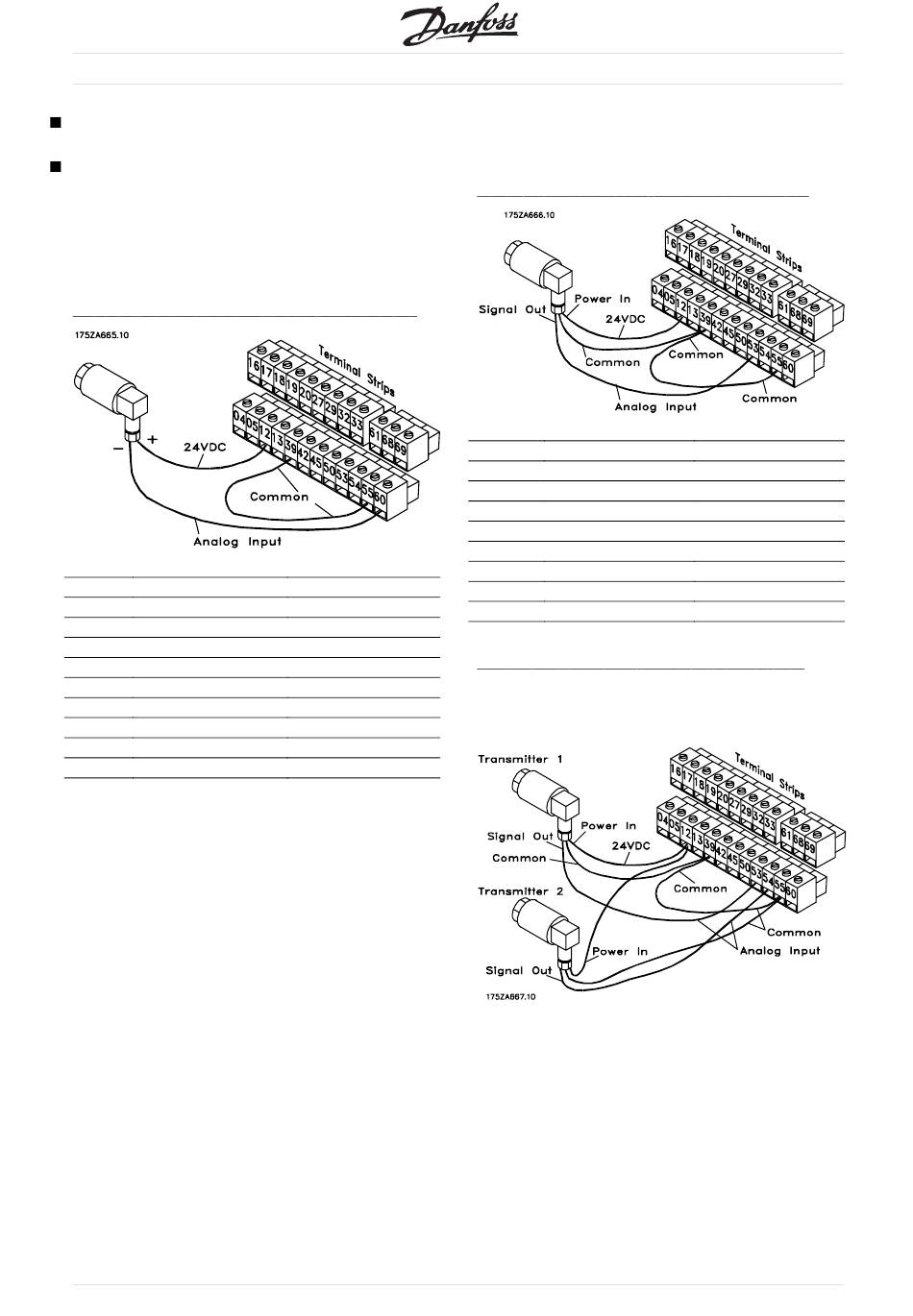

Single 4 - 20 mA feedback transmitter connection:
Programming:
Parameter Parameter
Number Description
415 REF./FDBK UNIT
413 MIN. FEEDBACK
414 MAX. FEEDBACK
308 AI [V] 53 FUNCT.
311 AI [V] 54 FUNCT.
314 AI [mA] 60 FUNCT
315 AI 60 SCALE LOW
316 AI 60 SCALE HIGH
54
Parameter
Value
Process unit
Transmitter low limit
Transmitter high limit
NO OPERATION
NO OPERATION
FEEDBACK
4 mA
20 mA
Cascade Controller Option

Single 0 - 10 V feedback transmitter connection:

Programming:
Parameter Parameter
Number Description
415 REF./FDBK UNIT
413 MIN. FEEDBACK
414 MAX. FEEDBACK
308 AI [V] 53 FUNCT.
309 AI 53 SCALE LOW
310 AI 53 SCALE HIGH
314 AI [mA] 60 FUNCT

Two 0 - 10 V feedback transmitter connections:

When two feedback signals are used with the
VLT, both signals must be voltage signals. Both
transmitters must also have the same range.
MG.60.I3.02 - VLT is a registered Danfoss trademark
Parameter
Value
Process unit
Transmitter low limit
Transmitter high limit
FEEDBACK
0 V
10 V
NO FUNCTION
