Cascade Controller Option

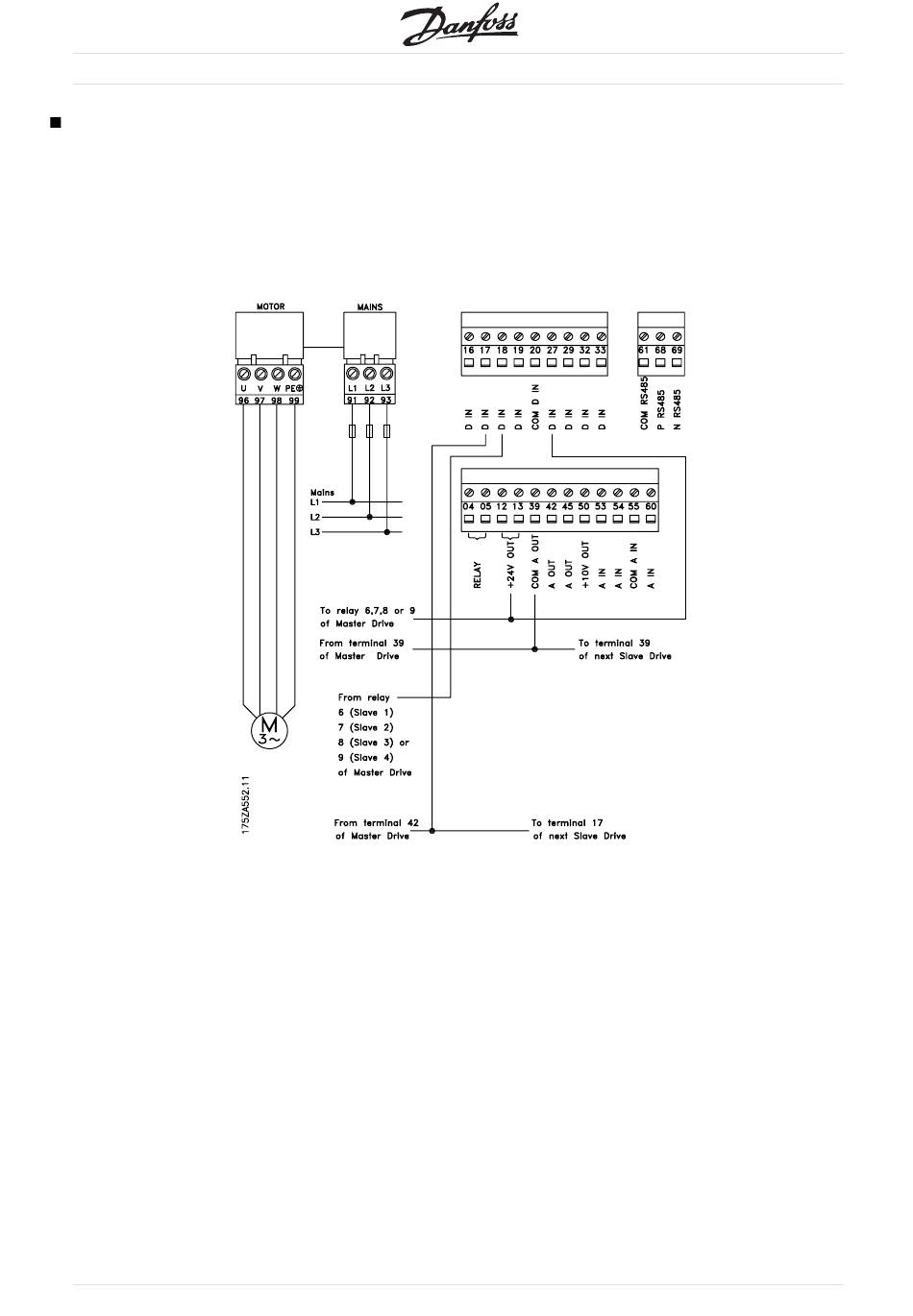

Slave drive in master/slave control wiring diagram

Each slave drive is wired in the same way, receiving
the Start/Stop command and a pulse speed reference
from the master drive. The speed reference and its
common are typically looped from Slave-to-Slave.
Power terminal connections
Control board terminal connections
Slave Drive
MG.60.I3.02 - VLT is a registered Danfoss trademark
20
