- Page 1 ERC 112D VSC for variable speed compressor This user guide is intended to be used by OEMs for the purpose of programming ERC 112D VSC. It may also be useful for technicians. However, it is not intended as a user guide for end users. www.danfoss.com/erc...
- Page 2 User Guide | ERC 112D VSC Refrigeration Controller Introduction Temperature control for refrigeration appliances. Application Speed control of variable speed compressor. Front panel mounting. The latest generation CPU, plenty of memory Advantages and high-end electronic components allow for a uniquely versatile software. Three separate...
-
Page 3: Typical Application
User Guide | ERC 112D VSC Refrigeration Controller Typical application Glass Door Merchandiser Gastro No-frost freezer/sub-zero cooler No-frost freezer/Cooler © Danfoss | DCS (vt) | 2019.07 BC286552322855en-000201 | 3... -
Page 4: Product Overview
User Guide | ERC 112D VSC Refrigeration Controller Product overview Display The ERC 112D VSC is an electronic refrigeration controller with an LED display especially developed for bottle coolers and commercial fridges and freezers where a Variable speed compressor is installed. It is particularly suited... -
Page 5: Quick Programming
User Guide | ERC 112D VSC Refrigeration Controller Quick programming Software for PC KoolProg Software from Danfoss for programming the ERC-controller via a PC rather than with the front panel buttons. https://www.danfoss.com/en/service-and- support/downloads/dcs/koolprog/ USB gateway USB gateway The USB Gateway is a laboratory tool, offering fast and easy programming of any ERC controller connected directly to the PC. -
Page 6: Technical Specs
Max 10 A total "DO4-6" S4: Frequency Signal for Variable speed 5 V, 0-200 Hz Probes Danfoss NTC sensors and Danfoss ECO accessories (Light, Motion and Door sensors) Modular connector system for OEM customers, with optional output screw terminal adapter; Connectors S1-S4 &... - Page 7 User Guide | ERC 112D VSC Refrigeration Controller Connections (Inputs and outputs are configurable) Application: Light / Motion, Door Application: Condenser, Door / Motion © Danfoss | DCS (vt) | 2019.07 BC286552322855en-000201 | 7...
-
Page 8: Code Numbers
User Guide | ERC 112D VSC Refrigeration Controller Code numbers I-Pack I-Pack Type Type Qty. Code no. Qty. Code no. ERC 112D VSC, Blue LED, with 080G3414 Light-sensors buzzer S3, 1000 mm, 3-pole 080G3311 S3, 2000 mm, 3-pole 080G3313 Temperature sensors... -
Page 9: Operation
User Guide | ERC 112D VSC Refrigeration Controller Operation "KoolProg Software" is licenced Danfoss software Software tool/Gateway The controller can be controlled in three ways: offering easy parameter set up via a USB gateway. Using "KoolProg Software", the Danfoss Docking Station or manually by means of the buttons on This software is supplied separately;... -
Page 10: Fan Settings
Min. -100.0°C In standard operation the set point is changed by simply pressing the Max. 200.0°C "temperature up/down" buttons on ERC 112D VSC; for laboratory and Default 2.0°C assembly line you may opt for software controlled set point adjustment (speed improvement) "SPr"... - Page 11 User Guide | ERC 112D VSC Refrigeration Controller "Fdt" Fan stop time on door open The delay with wich the fan will be stopped after the door has been opened. Min. 0 s "0": fan stop immediately when door open.
- Page 12 User Guide | ERC 112D VSC Refrigeration Controller "PLt" Pull Down Limit Temperature This parameter sets the minimum allowed temperature during pull-down. Min. -55.0°C In order to protect valuable contents you must always specify the absolute Max. 55.0°C minimum temperature allowed in your application.
- Page 13 User Guide | ERC 112D VSC Refrigeration Controller "dot" Drip OFF Time This parameter can be set to between 0 and 60 minutes and defines how long the delay is between the heater being switched Min. 0 min OFF and the compressor starting again. Drip off time is generally configured to ensure there is no water droplet on the evaporator Max.
-
Page 14: Maximum Frequency
User Guide | ERC 112D VSC Refrigeration Controller Compressor settings "CSL" Min speed Minimum operating speed of variable speed compressor. The actual rpm is multiplied by 10 to the selected value, Min. 50 rpm hence read actual rpm=value*10. Max. 500 rpm Default 200 rpm "CSH"... - Page 15 User Guide | ERC 112D VSC Refrigeration Controller "EoF" Frequency during Sensor error Frequency at which compressor must run during cab air sensor error. In case of cab air sensor error controller will send this Min. 0 Hz frequency to compressor drive during Error run time "Ert". and during error stop time it will send the Off frequency "CoF"...
-
Page 16: Display Unit
The controller can have its display intensity (brightness) set in one of Min. 2 two ways: Max. 10 A) With a Danfoss ambient light sensor attached, the brightness of the Default 10 display is adjusted automatically according to the ambient light level (see the assignments section). - Page 17 User Guide | ERC 112D VSC Refrigeration Controller "doF" Display Offset This parameter is a relative value and allows the temperature displayed Min. -10.0 K to be different to the temperature measured. Max. 10.0 K For instance, at a measured temperature of 7°C and "doF" set to -2K, the Default 0.0 K...
- Page 18 User Guide | ERC 112D VSC Refrigeration Controller "Ltd" Alarm delay on low temperature alarm The number of minutes to wait before sounding an alarm once the Min. 0 min low temperature alarm temperature is reached. Max. 240 min Default 0 min "Pdd"...
- Page 19 Default 2.0 K ECO strategy NOTE: some of these parameters require the installation of the Danfoss Ambient Light Sensor. The Danfoss USB Gateway in combination with "KoolProg Software" allows for real time measurement of the current light intensity. Danfoss recommends test- ing and adjusting "SLd"...
- Page 20 User Guide | ERC 112D VSC Refrigeration Controller "Euu" EWU active on/OFF Enable or disable early wake up. Min. no Max. yes Default yes "CLH" Shop close hour Shop is assumed to be closed when staying in ECO mode longer than shop close hour.
- Page 21 Please contact your local Danfoss representative for information about default settings. NOTE: coded sensors will impact on the number of possible configurations. For instance: Danfoss supplies only 2-pole defrost sensors, so input "S3" will most likely be used as a defrost/evaporator temperature sensor input. "S1C" S1 Config/S1C...
- Page 22 You may not therefore have access to change all the passwords. Passwords are entered by using the up and down arrow buttons. Min. 0 Max. 999 Danfoss advises against using passwords which are easy to remember Default 0 or enter, for example 111, 222, 123 etc. "PS3"...
- Page 23 User Guide | ERC 112D VSC Refrigeration Controller "Sdi" physcial DI pin state (ON; OFF). "uAC" Voltage value Current main power supply voltage. "ouS" DOs Status Current relay open closed status. "IIII" = all relay ON (Upper bar for on, Lower bar for OFF).
- Page 24 User Guide | ERC 112D VSC Refrigeration Controller "Fot" Frequency Output Actual output frequency of the controller "AtP" Weighted Average Temperature Weighted average temperature of cabinet air and evaporator sensors "AuS" AUX Temp. Temperature of the AUX sensor. invisible. "LLu"...
-
Page 25: Troubleshooting
User Guide | ERC 112D VSC Refrigeration Controller Troubleshooting Problem Probable cause Remedy Compressor does not start Faulty frequency table Check the frequency cable continuity. Wrong / loose connection of frequency cable Check the connection of frequency cable at controller and drive side... -
Page 26: Sensor Placement
User Guide | ERC 112D VSC Refrigeration Controller Sensor placement Control sensor The control sensor must always be connected and is used for controlling the cut-in and cut-out of the compressor according to the set point. The sensor is also used for the displayed temperature. -
Page 27: Condenser Sensor
User Guide | ERC 112D VSC Refrigeration Controller Condenser sensor The condenser sensor is used to protect the compressor against high pressure when the condenser is blocked or the condenser fan fails. Condenser sensor Place the sensor at the liquid side of the condenser. -
Page 28: Typical Applications
User Guide | ERC 112D VSC Refrigeration Controller Typical applications Glass Door Merchandiser, Gastro No-frost freezer No-frost freezer/sub-zero cooler Note: this is a typical (default) wiring diagram since both inputs (AI/DI’s) and outputs (DO’s) can be assigned differently. Please see "ASi", assignment... - Page 29 User Guide | ERC 112D VSC Refrigeration Controller © Danfoss | DCS (vt) | 2019.07 BC286552322855en-000201 | 29...
- Page 30 © Danfoss | DCS (vt) | 2019.07 BC286552322855en-000201 | 30...
Need help?
Do you have a question about the ERC 112D VSC and is the answer not in the manual?
Questions and answers

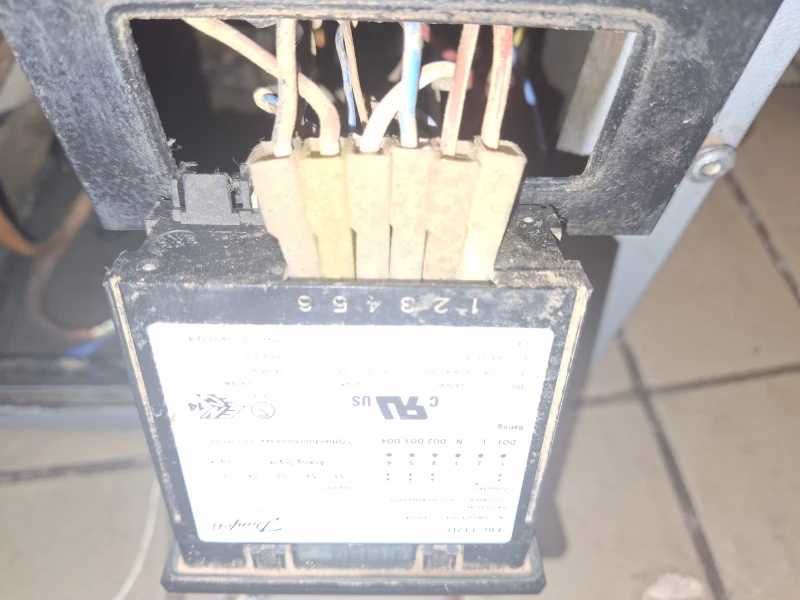

What does 4.5.6 connect to ?
Mostrador do controlar, fica travado , não mostra a temperatura real
The Danfoss ERC 112D VSC display may be stuck and not showing the actual temperature due to the "rLt" (Display Range Limit) parameter being set to restrict the displayed temperature to the cut-in / cut-out limits instead of the actual temperature. If "rLt" is set to "yes," it will not show the real temperature. To display the actual temperature, "rLt" must be set to "nO".
Additionally, the display might update slowly if a "ddL" (Display Delay) is set, causing a delay in showing temperature changes. Also, temperature updates can be blocked during fan OFF periods and only resume after the fan has been running for a while.
This answer is automatically generated
como entrar no parâmetro "rLt" (Limite da Faixa de Exibição) e fazer alteração?
To access and change the "rLt" (Display Range Limit) parameter on the Danfoss ERC 112D VSC, follow these steps:
1. Enter the parameter configuration mode.
2. Navigate through the parameter list to find "rLt".
3. Select "rLt" to view or change its value.
4. Set the value to “nO” to display the actual temperature or “yes” to restrict the display to cut-in/cut-out limits.
5. Confirm the selection to save the change.
The default setting is “nO”.
This answer is automatically generated
