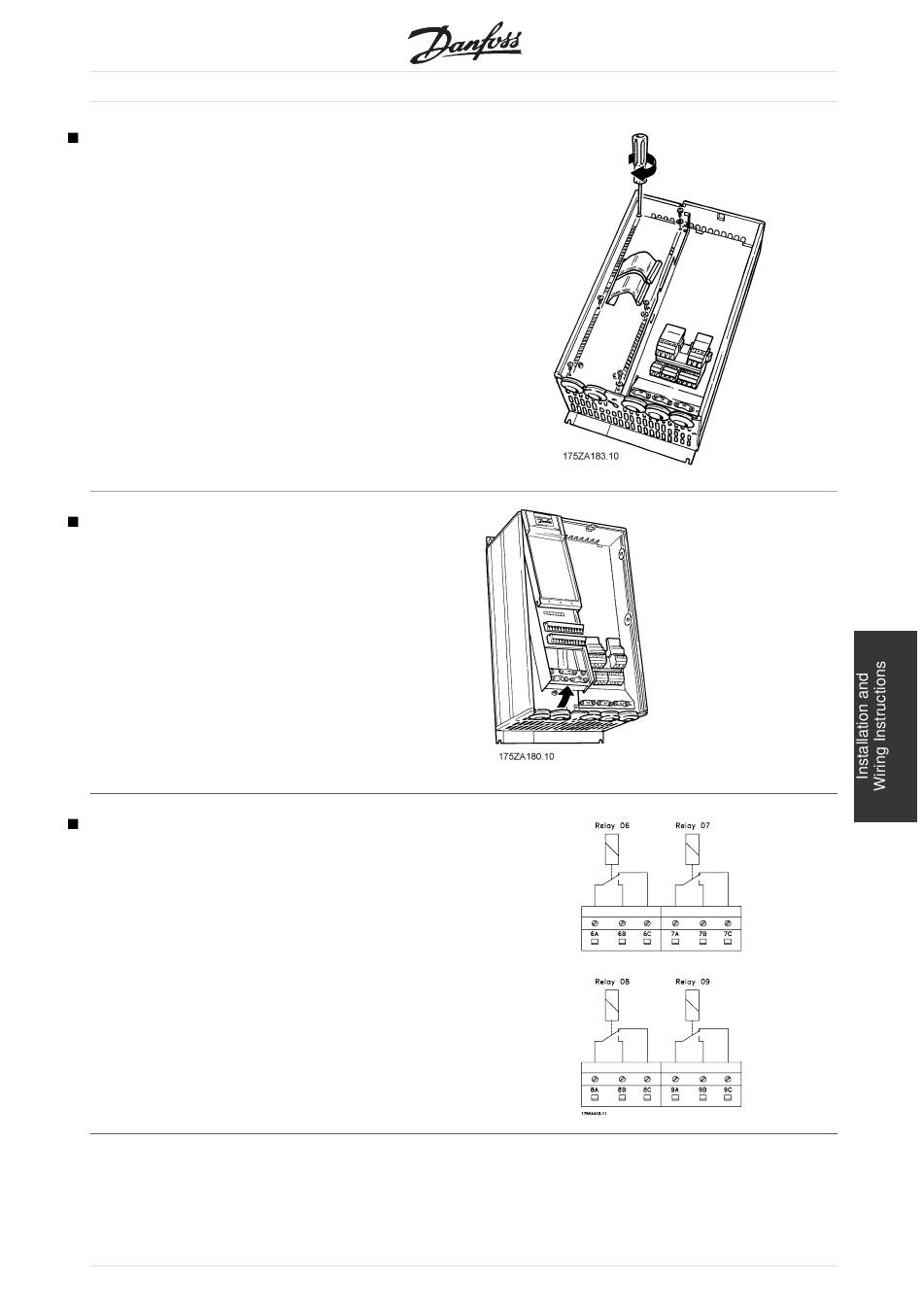

9. Install Chassis Ground Connections
• Align ground strips over corresponding screw
holes. (Strip with fewest contact points mounts
on right side of chassis.)
•
Replace screws removed and add additional
screws provided, as necessary. Use a
Torx T-20 screw driver.
10. Replace VLT Control Board Cassette
• Attach LCP keypad craddle to VLT control
board cassette removed in step 4. Ensure not
to crimp option card ribbon cables.
•
Connect two ribbon cables to control board in
corresonding connectors as removed in step 3.
• Hinge VLT cassette at top of VLT chassis and
reposition into place. Use Torx T-20 screwdriver
to fasten two captive screws. Ensure not to
crimp control board ribbon cables.
11. Relay Output Connection
• Connect relay output cables to terminal blocks
provided as required by application. (See
wiring diagrams in this chapter.)
•
Insert relay terminal blocks firmly into corresponding
terminal sockets on control board.
• Secure relay wiring with bottom right wiring
clamp and fasten.
Relay 6-9: A-B make, A-C break
Max. 240 VAC, 2 A
Max. cross-section: 1.5 mm
Torque: 0.22 - 0.25 Nm
