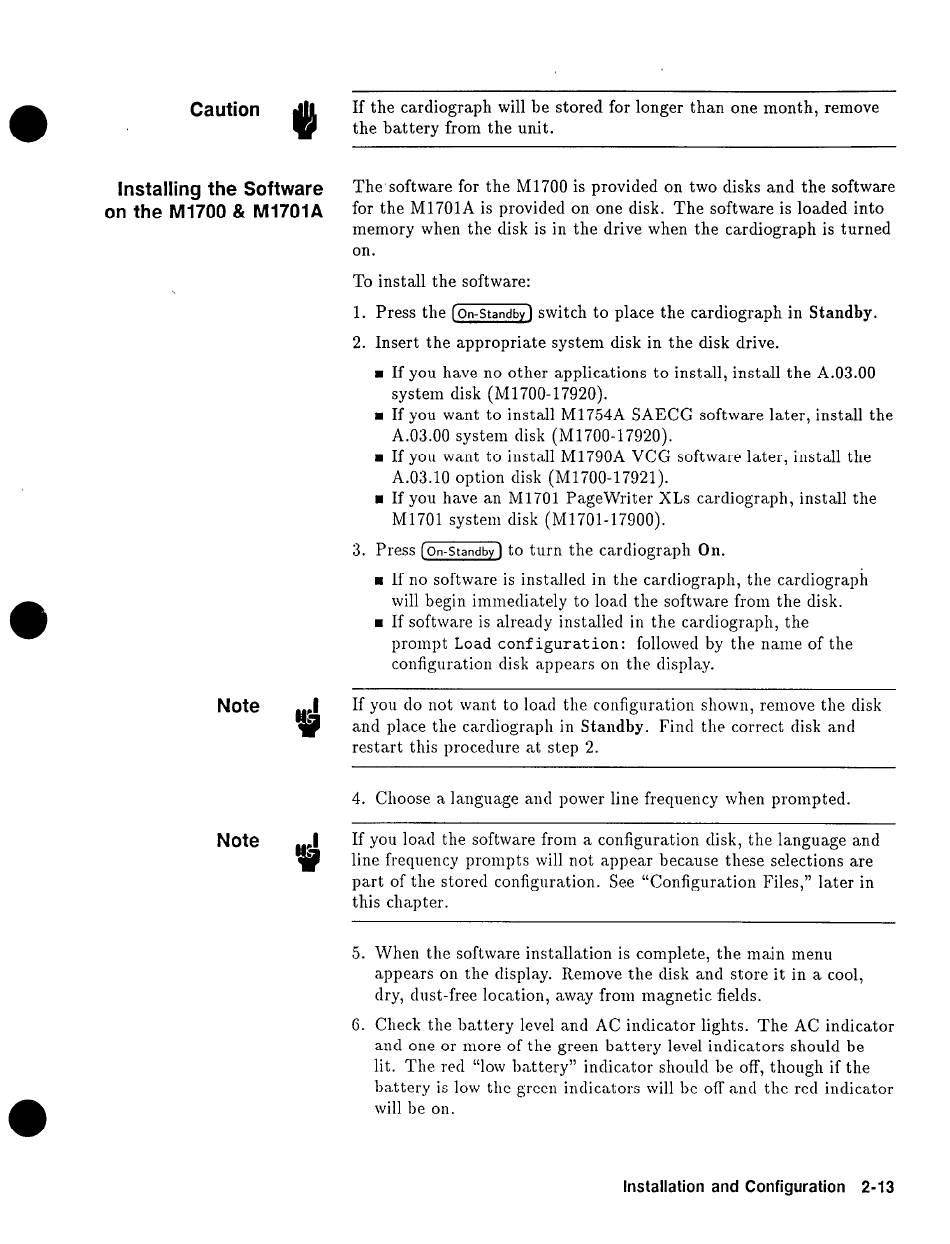

HP PageWriter XL M1705B Service Manual page 44

Caution
If the cardiograph will be stored for longer than one month, remove
the battery from the unit.
Installing the Software
The,software for the Ml700 is provided on two disks and the software
on the Ml700 & M1701A
for the M1701A is provided on one disk. The software is loaded into
memory when the disk is in the drive when the cardiograph is turned
on.
To install the software:
1. Press the [On-Standbd switch to place the cardiograph in Standby.
2. Insert the appropriate system disk in the disk drive.
n
If you have no other applications to install, install the A.03.00
system disk (M1700-17920).
n
If you want to install Ml754A SAECG software later, install the
A.03.00 system disk (M1700-17920).
H If you want to install M1790A VCG software later, install the
A.03.10 option disk (M1700-17921).
H If you have an Ml701 PageWriter XLs cardiograph, install the
Ml701 system disk (M1701-17900).
3. Press [On-Standby) to turn the cardiograph On.
n
If no software is installed in the cardiograph, the cardiograph
will begin immediately to load the software from the disk.
n
If software is already installed in the cardiograph, the
prompt Load configuration : followed by the name of the
configuration disk appears on the display.
Note .I
t?
If you do not want to load the configuration shown, remove the disk
.
and place the cardiograph in Standby. Find the correct disk and
restart this procedure at step 2.
4. Choose a language and power line frequency when prompted.
Note
:'
u
If you load the software from a configuration disk, the language and
line frequency prompts will not appear because these selections are
part of the stored configuration. See "Configuration Files," later in
this chapter.
5. When the software installation is complete, the main menu
appears
on
the display. Remove the disk and store it in a cool,
dry, dust-free location, away from magnetic fields.
G. Check the battery level and AC indicator lights. The AC indicator
and one or more of the green battery level indicators should be
lit. The red "low battery" indicator should be off, though if the
battery is low the green indicators will be off and the red indicator
will be on.
Installation and Configuration 2-13
