Multi PRO – Operating Manual
10.4.1.9
MaxiBIO board
Maxibio is the input/output board allowing to interface Multi PRO with the car wash system.
The flexibility in configuring the inputs and outputs to be used, their communication mode
and their default level allows Multi PRO to assure fully compatibility with all the gantry car
washes on the market.
10.4.1.9.1 Maxibio inputs

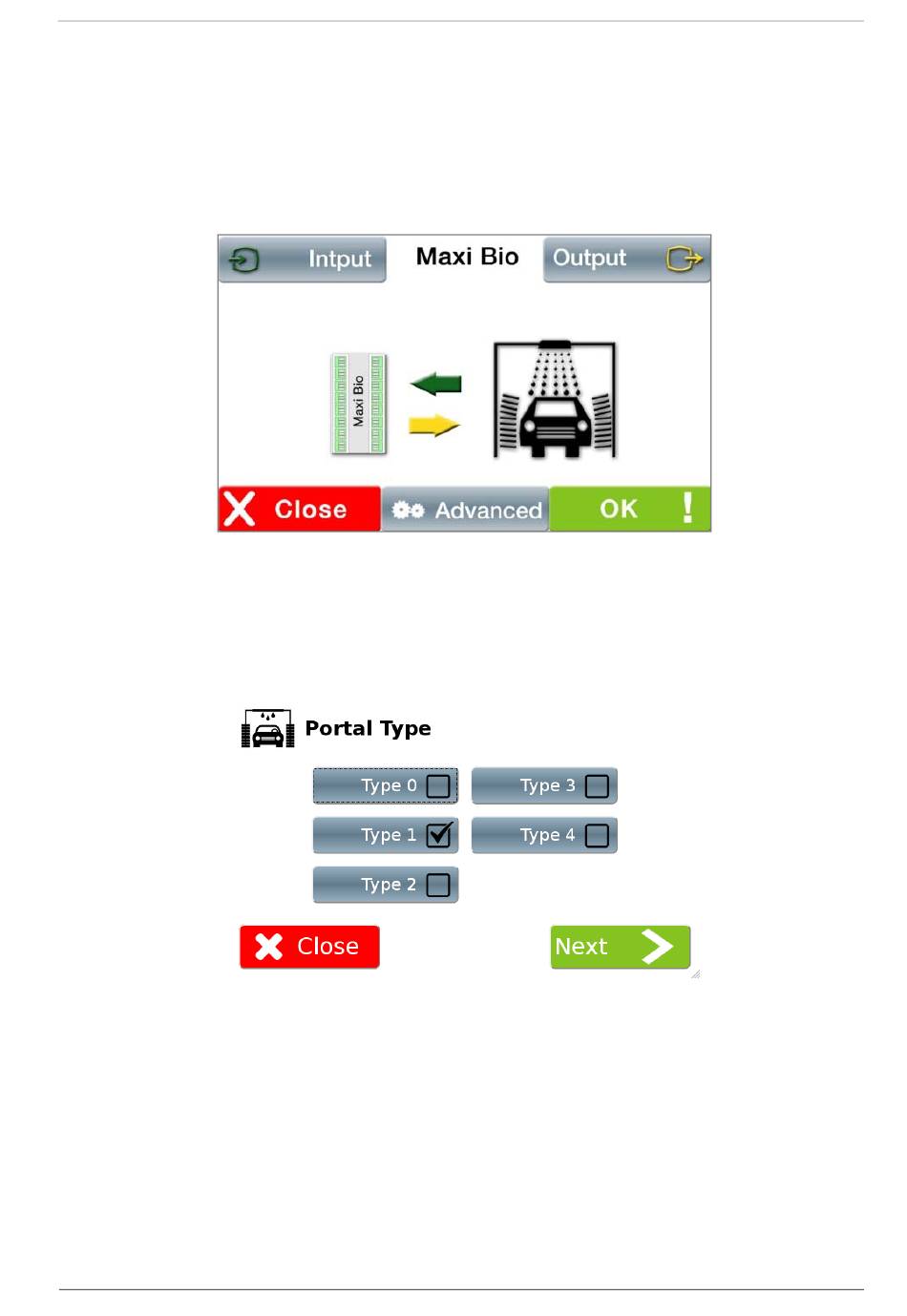

You can define the type of gantry car wash the Multi PRO starter is interfaced with through the
"Portal type" screen shown in Figure 76 below.
The tick next to each "Type" checkbox indicates the type of gantry car wash the MaxiBio is
connected to (check the corresponding box to select the type).
69
Figure 75
Figure 76
