Comestero Suzohapp Multi PRO Operating Manual page 63

Multi PRO – Operating Manual

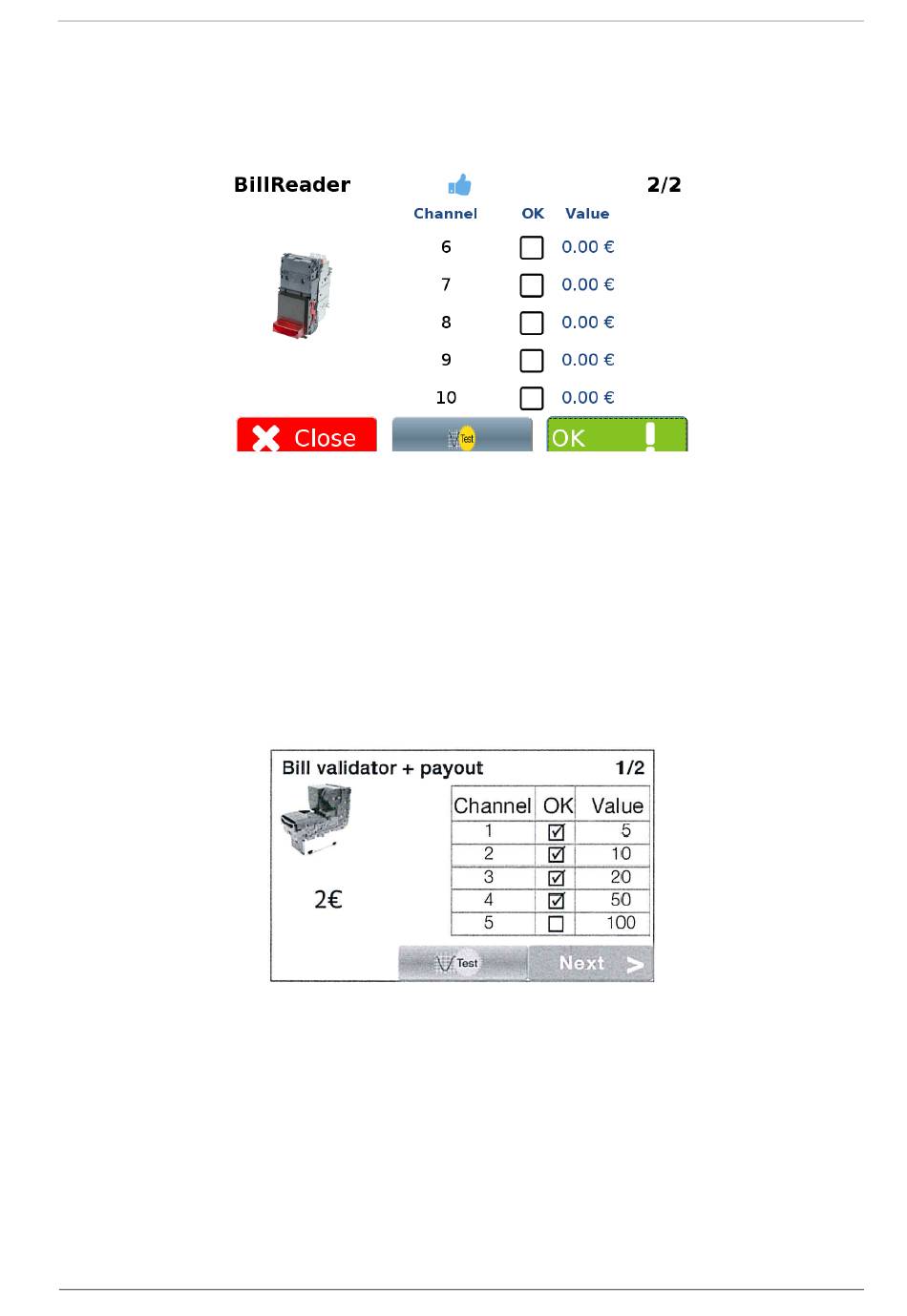

Touching the "Next >" button will display the screen shown in Figure 63 below.
The screen includes a "Test" button used to check that the banknote validator is working
properly.
10.4.1.4 Banknote recycler NV11
If you have chosen to purchase a NV11 banknote recycler instead of the standard NV9
validator, the screen shown in Figure 64 below will allow you to modify its acceptance
channels. The acceptance channels will be listed in the table inside the "OK" column. You will
be able to set the banknote denominations that will be accepted Inside the "Value" column.
This will allow you to enable or disable the acceptance channels without directly intervening
on the device.
63
Figure 63
Figure 64
