Comestero Suzohapp Multi PRO Operating Manual page 66

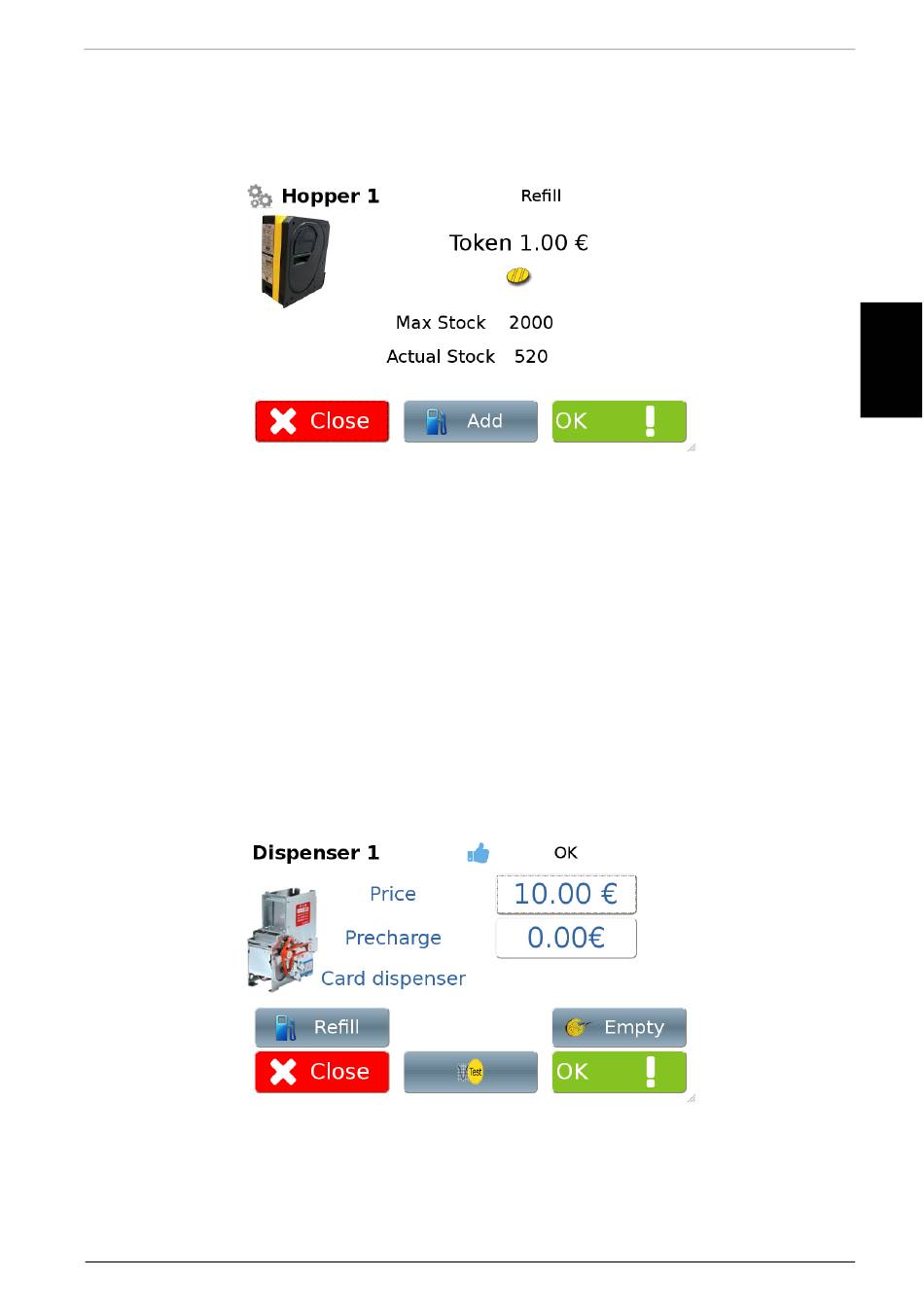

To define the number of coins/tokens inserted manually when filling the hopper, press the
"Refill" button in the screen shown in Figure 67. The system will display the screen shown in
Figure 69 below.
Pressing the "Add" button will allow to set the number of tokens/coins that were inserted.
10.4.1.7 Card or key dispenser
You can install two card or key dispensers in the machine. The screen, shown in Figure 70
below, allows to define some dispenser parameters. Touching the "Price" field, for example,
will allow to define the value, expressed in Euro, of the card provided by the dispenser.
If the card is empty, the user can pre-recharge it by using an external device (for example, the
Desktop Unit with the Unico Software).
The screen also includes a "Test" button, used to check that the dispenser is working properly
(each time you click the button the device will dispense a card or a key). The "Empty" button
will allow to completely empty the dispenser.
Figure 69
Figure 70
