Multi PRO – Operating Manual

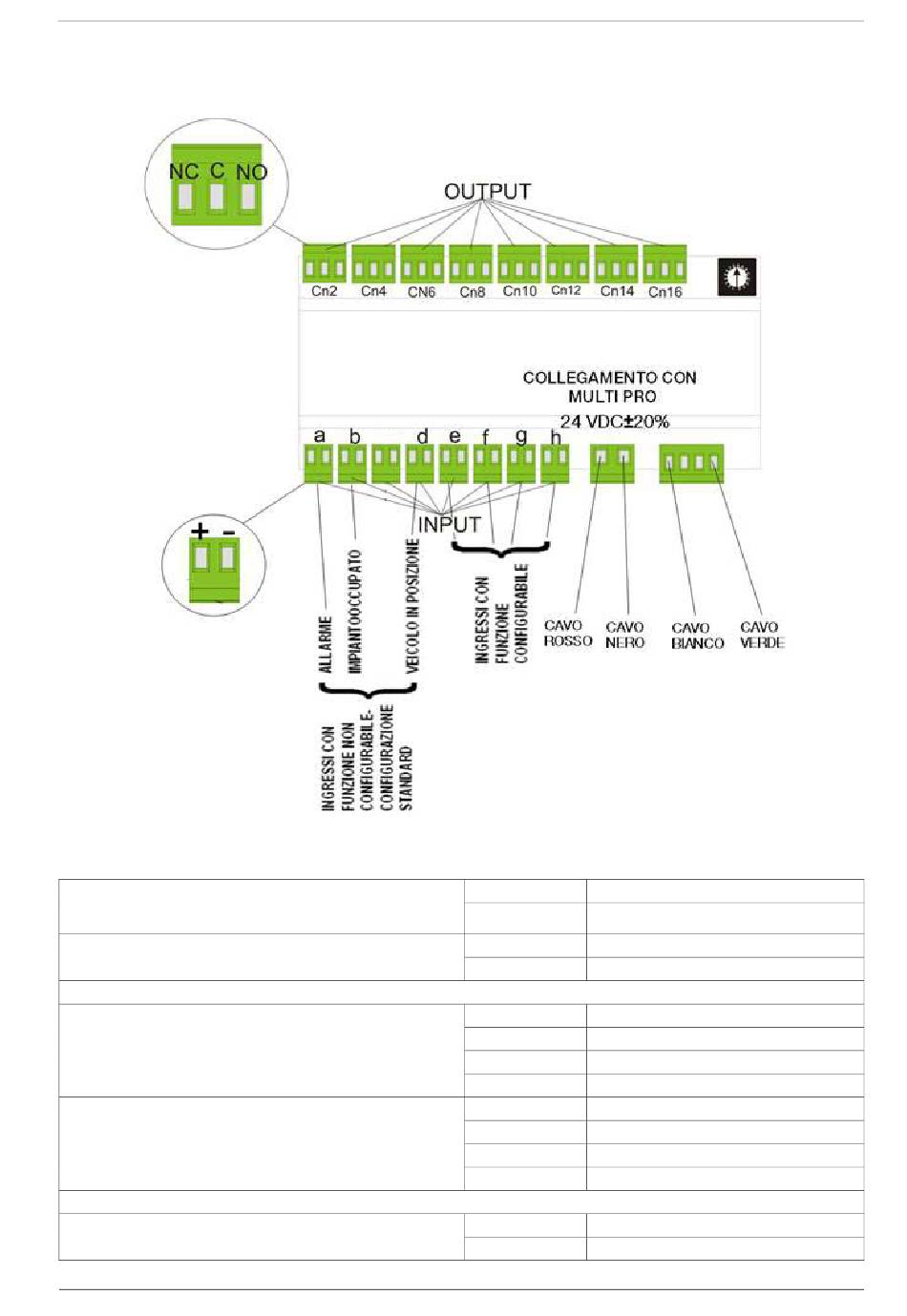

Multi PRO connection
24 Vdc ± 20%
Non-configurable inputs
(STANDARD version)
Configurable inputs
OUTPUTS
37
MaxiBio
Fig. 25
wr
wb
ww
wg
INPUTS
a
b
c
d
e
f
g
h
OUTPUTS
Cn2
Cn4
red wire
black wire
white wire
green Wire
Alarm
Plant busy
Extra height
Vehicle in position
General purpose input
General purpose input
General purpose input
General purpose input
Program1
Program2
SET AS
ADDRESS 1
