C1000H-SLK11/SLK21-V1 Components

2-1

C1000H-SLK11/SLK21-V1 Components

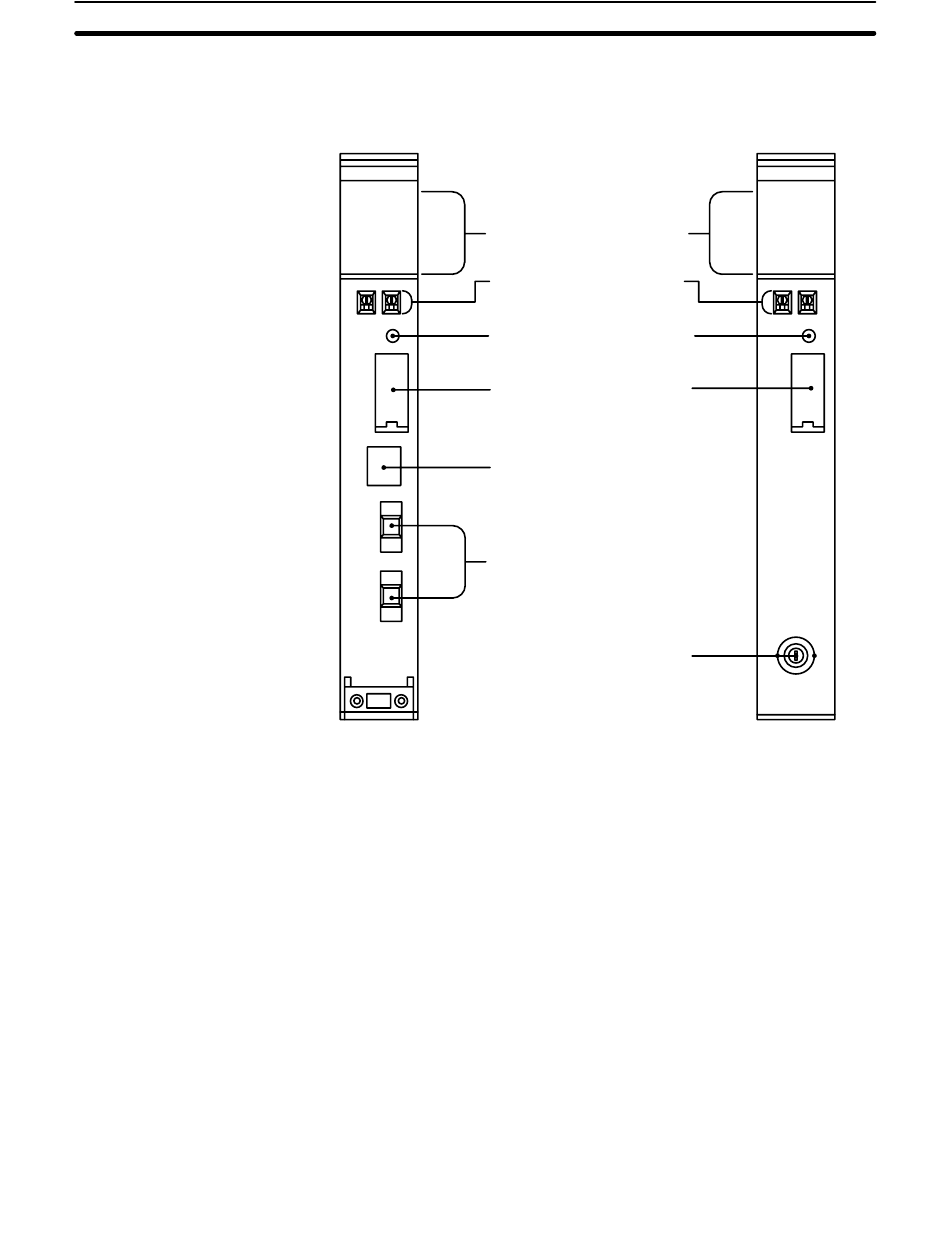

Front
10
C1000H-SLK11
SLK11
RUN P/S
ERC ERH
INS M/S
SD RD
TS LNK
Note Do not push the Reset Switch on SYSMAC LINK Units when the RUN indicator is
not lit (watchdog timer error).
Indicators
Indicate operational status.
Node number switches
Used to set the node number.
Reset switch
Used to reinitialize the SYSMAC
LINK Unit.
DIP switch 1
Remove this cover to gain access to
DIP switch 1. The switch is used to set
a variety of operating parameters.
Power supply connector
Connect to the Auxiliary Power
Supply Unit.
Optical fiber connectors
Used to connect optical fiber cables.
Coaxial connector
Used to connect coaxial cable.
Section 2-1
C1000H-SLK21-V1
SLK21-V1
RUN
ERC ERH
INS M/S
SD RD
TS LNK
