2. Introduction

2.1.1. FC Identification
Below is an example of the frequency converter nameplate sticker. This sticker is located on the top of each frequency converter and shows the ratings,
serial number, warnings catalog number, and other relevant data for each unit. See following tables for details, how to read the Type code string.

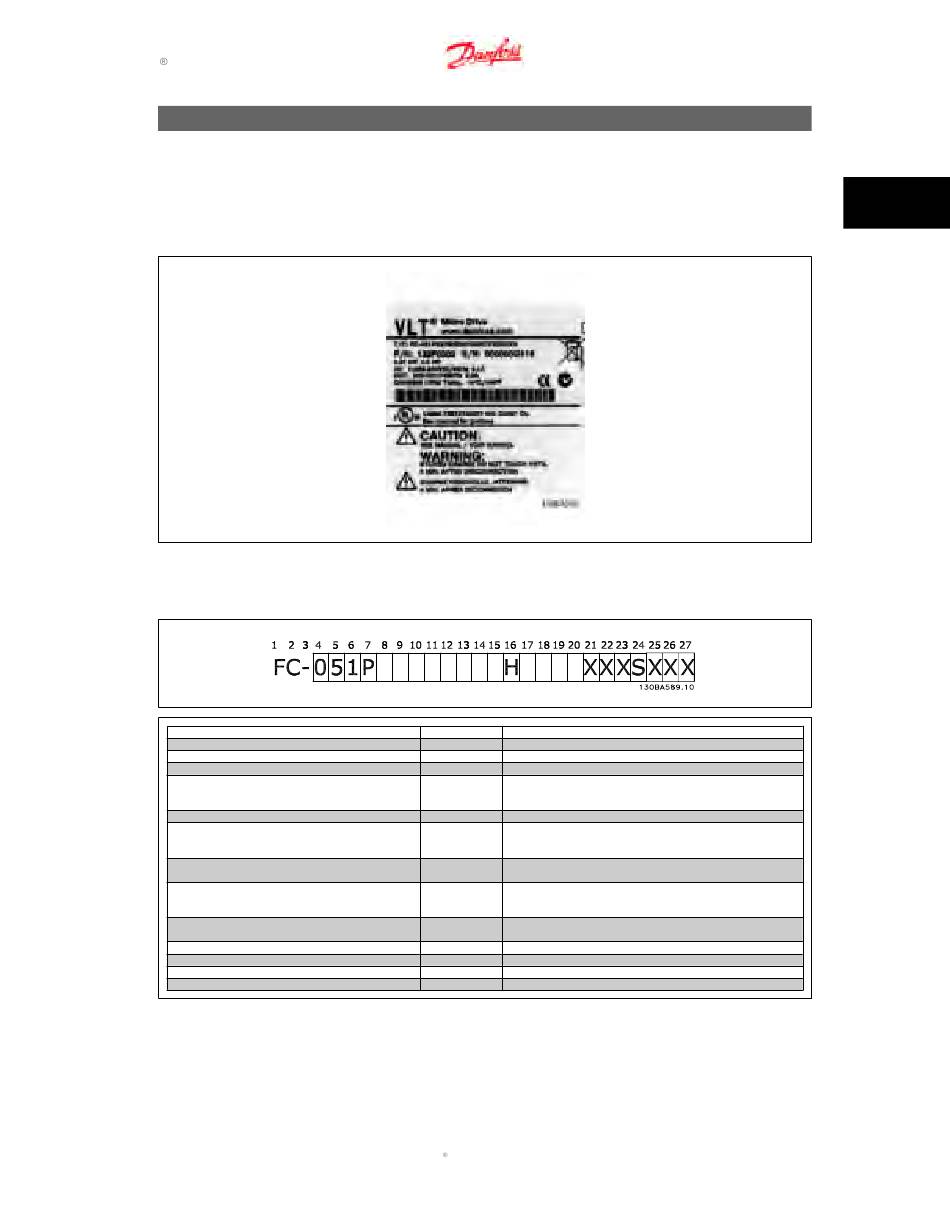

Illustration 2.1: This example shows the identification sticker.

2.1.2. Type Code

Description
Product group
Series and product type
Power size
Mains voltage
Enclosure
RFI filter
Brake
Display
Coating PCB
Mains option
Adaptation A
Adaptation B
Software release
Table 2.1: Type code description
Pos Possible choice
1-3 Adjustable Frequency Converters
4-6 Micro Drive
7-10 0.18 - 7.5 kW
11-12 S2: Single phase 200 - 240 V AC
T 2: Three phase 200 - 240 V AC
T 4: Three phase 380 - 480 V AC
13-15 IP20/Chassis
16-17 HX: No RFI filter
H1: RFI filter class A1/B
H3:RFI filter A1/B (reduced cable length)
18 B: Brake chopper included
X: No brake chopper included
19 X: No Local Control Panel
N: Numerical Local Control Panel (LCP)
P: Numerical Local Control Panel (LCP) with potentiometer
20 C: Coated PCB
X. No coated PCB
21 X: No mains option
22 X: No adaptation
23 X: No adaptation
24-27 SXXX: Latest release - std. software
