VLT Micro Drive FC 51
6-92 Terminal 42 Digital Output
Option:
No Operation
*
[0]
[80] SL Digital Output A
6-93 Terminal 42 Output Min. Scale
Range:
0.00 % [0.00 - 200.0%]
6-94 Terminal 42 Output Max. Scale
Range:
*
100.00% [0.00 - 200.00%]
Function:
Relays
See par. 5-4*, , for choices and descriptions.
See par. 13-52 SL Control Action . When Smart Logic Action
high. When Smart Logic Action Set dig. out. A low
Function:

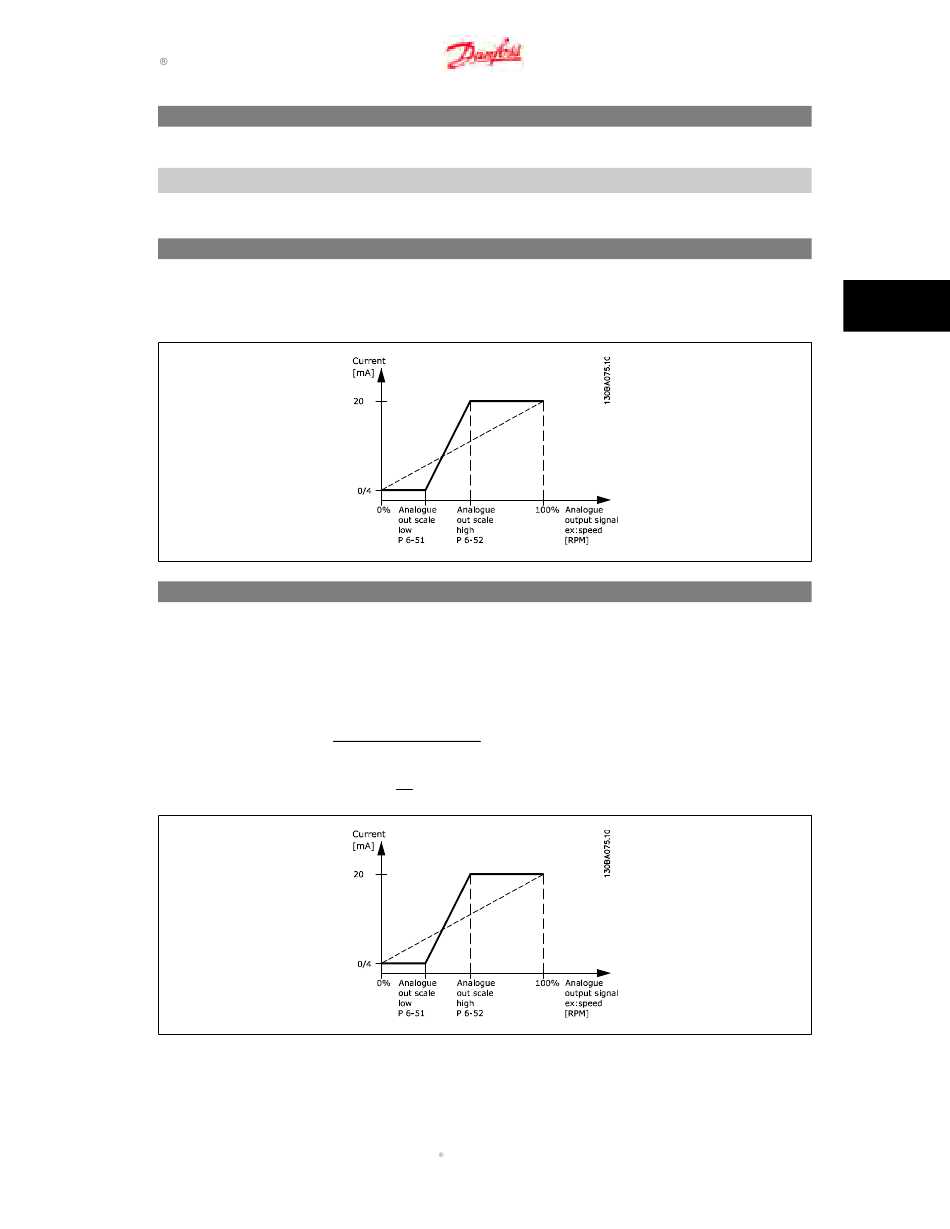

Scale minimum output of selected analog signal at terminal 42 as percentage of maximum signal value. E.g. if 0
mA (or 0 Hz) is desired at 25% of maximum output value, programme 25%. Scaling values up to 100% can
never be higher than corresponding setting in par. 6-52.
Function:
Scale maximum output of selected analog signal at terminal 42. Set value to maximum value of current signal
output. Scale output to give a current lower than 20 mA at full scale; or 20 mA at an output below 100% of
maximum signal value.
If 20 mA is the desired output current at a value between 0 - 100% of the full-scale output, programme per-
centage value in the parameter, i.e. 50% = 20 mA. If a current between 4 and 20 mA is desired at maximum
output (100%), calculate percentage value as follows:
m A
20
× 100 %
desired maximum current
i.e.
20
m A
10 = × 100 = 200 %
10
MG.02.C4.02 - VLT is a registered Danfoss trademark
4. Parameter Descriptions
Set dig. out. A high [38] is executed, input goes
[32] is executed, input goes low.
