Step 4. Connect the SWD-10P port to the BCE-GENTRX32-001 firmware download port.
Step 5. Connect the e-Writer 32 to the computer using a USB cable. Start the
HOPE3000F or HT32 software and click the "File" followed by the "Open and
Download" icons to select a desired programming file. After this an IC select
dialog will pop up and then select the "HT32F52352" device.
Step 6. Execute the programming operations using the HOPE3000F or HT32
programming user interface.
AN0519E V1.00
Board Programming Firmware Manual

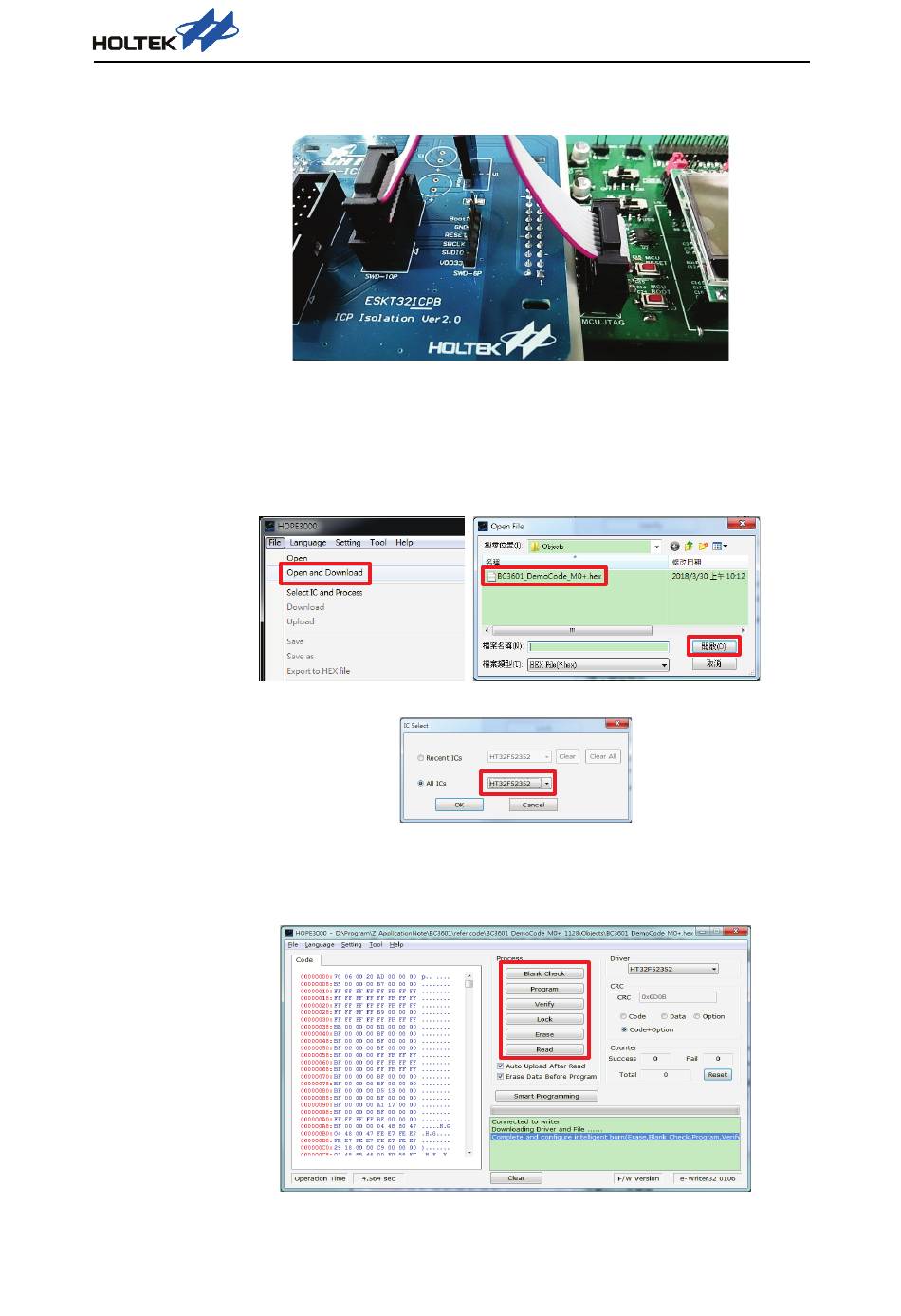

Figure 12. 10pin Cable Connection
Figure 13. Load a 32bit Programming File
Figure 14. IC Select Dialog
Figure 15. HOPE3000F or HT32 Programming User Interface
5 / 7
