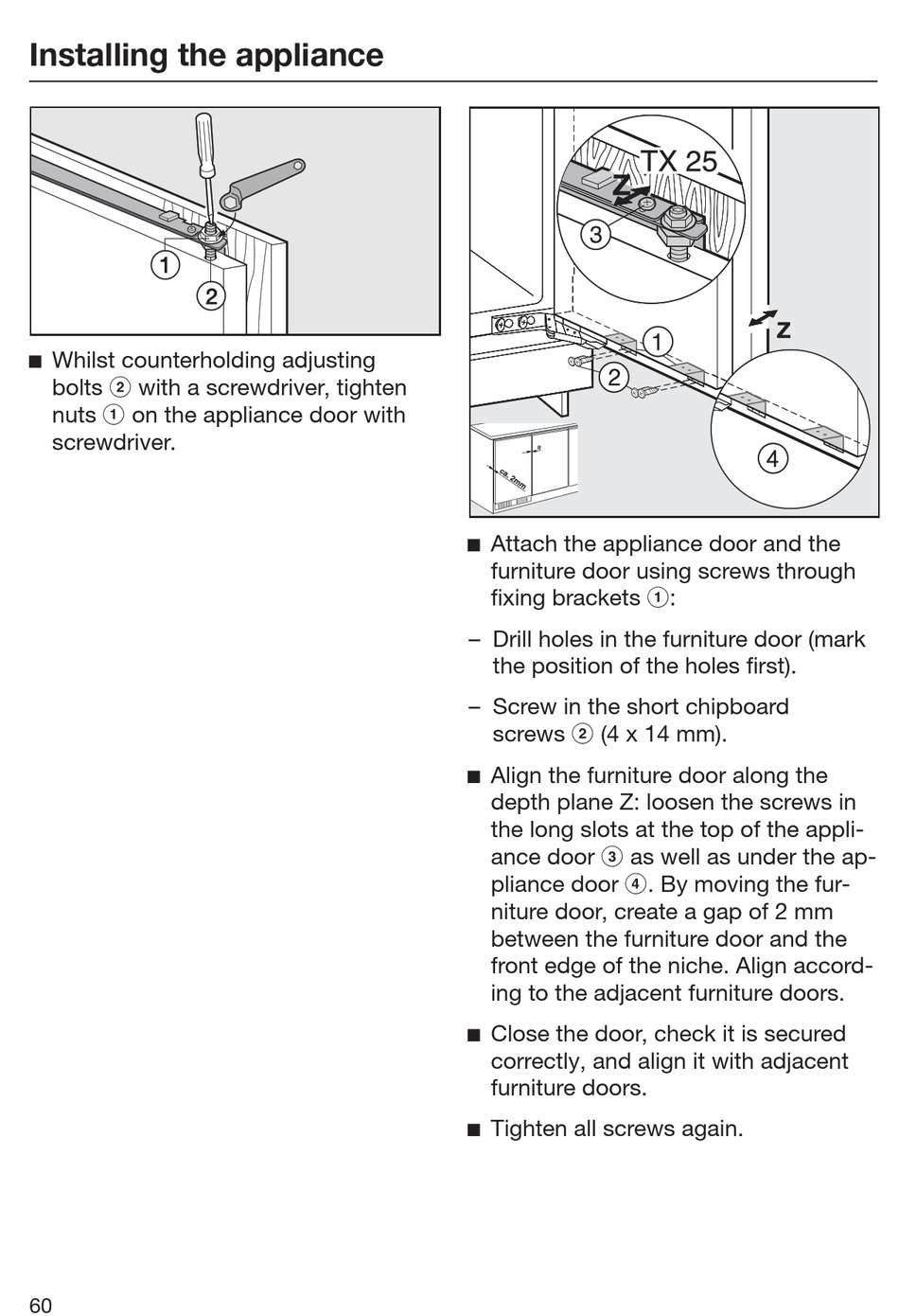

Installing the appliance
 Whilst counterholding adjusting
bolts  with a screwdriver, tighten
nuts  on the appliance door with
screwdriver.
60
 Attach the appliance door and the
furniture door using screws through
fixing brackets :
– Drill holes in the furniture door (mark
the position of the holes first).
– Screw in the short chipboard
screws  (4 x 14 mm).
 Align the furniture door along the
depth plane Z: loosen the screws in
the long slots at the top of the appli-
ance door  as well as under the ap-
pliance door . By moving the fur-
niture door, create a gap of 2 mm
between the furniture door and the
front edge of the niche. Align accord-
ing to the adjacent furniture doors.
 Close the door, check it is secured
correctly, and align it with adjacent
furniture doors.
 Tighten all screws again.
