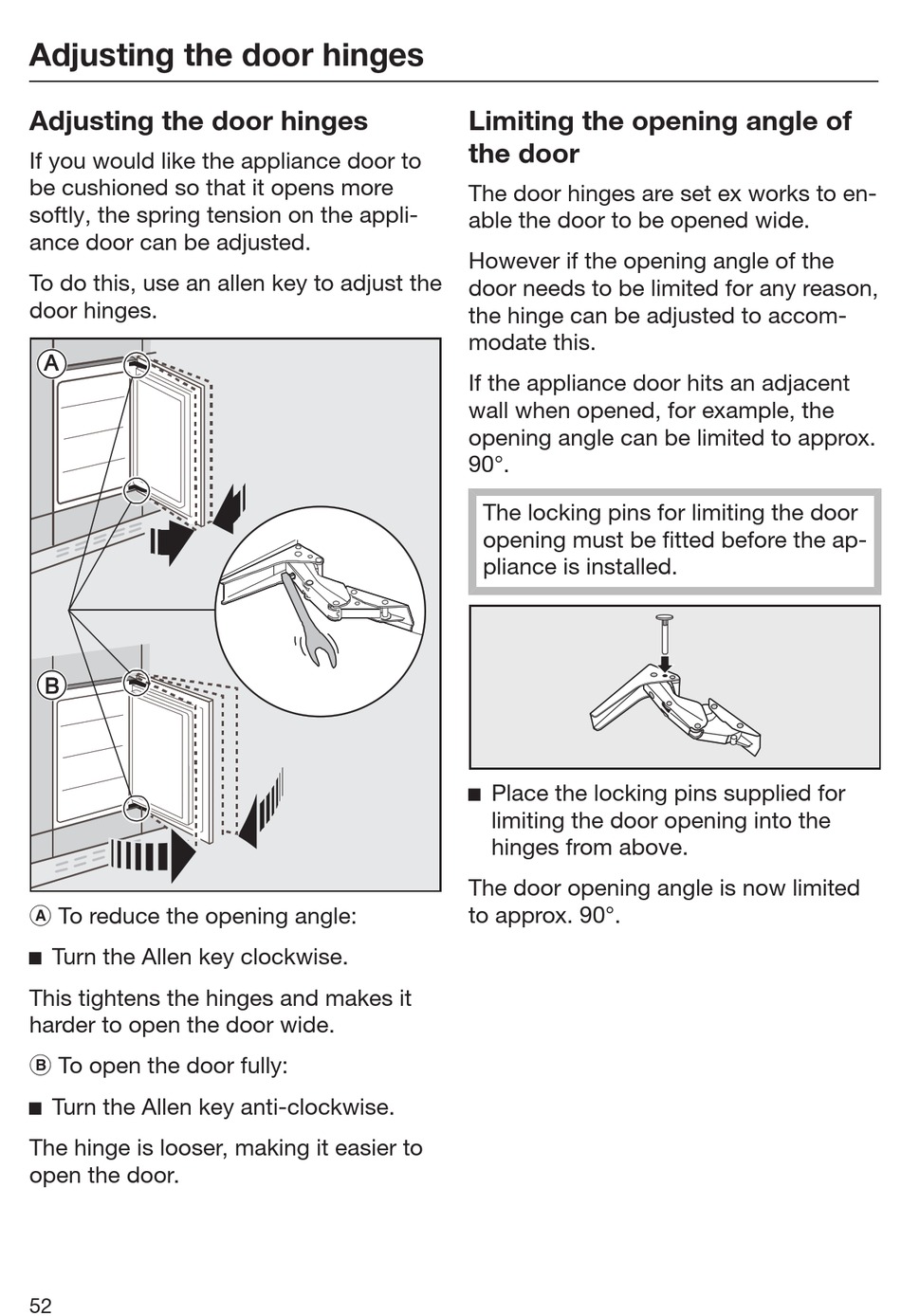

Adjusting the door hinges

Adjusting the door hinges
If you would like the appliance door to
be cushioned so that it opens more
softly, the spring tension on the appli-
ance door can be adjusted.
To do this, use an allen key to adjust the
door hinges.
 To reduce the opening angle:
 Turn the Allen key clockwise.
This tightens the hinges and makes it
harder to open the door wide.
 To open the door fully:
 Turn the Allen key anti-clockwise.
The hinge is looser, making it easier to
open the door.
52
Limiting the opening angle of
the door
The door hinges are set ex works to en-
able the door to be opened wide.
However if the opening angle of the
door needs to be limited for any reason,
the hinge can be adjusted to accom-
modate this.
If the appliance door hits an adjacent
wall when opened, for example, the
opening angle can be limited to approx.
90°.
The locking pins for limiting the door
opening must be fitted before the ap-
pliance is installed.
 Place the locking pins supplied for
limiting the door opening into the
hinges from above.
The door opening angle is now limited
to approx. 90°.
