TMS320C6455
SPRS276M – MAY 2005 – REVISED MARCH 2012
1.1

CTZ/GTZ/ZTZ BGA Package (Bottom View)

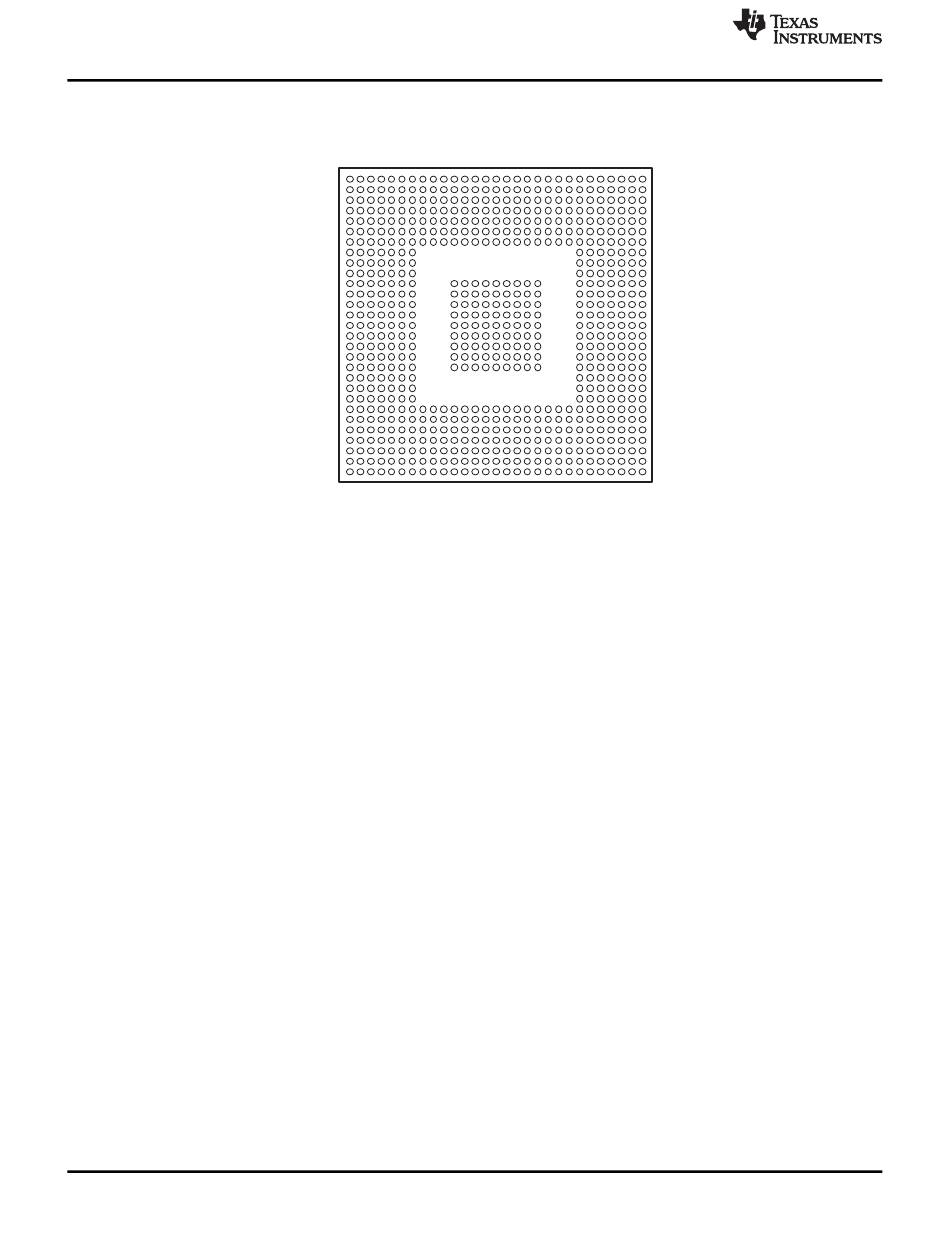

Figure 1-1 shows the TMS320C6455 device 697-pin ball grid array package (bottom view).
1.2

Description

The TMS320C64x+™ DSPs (including the TMS320C6455 device) are the highest-performance fixed-point
DSP generation in the TMS320C6000™ DSP platform. The C6455 device is based on the third-generation
high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture developed by
Texas Instruments (TI), making these DSPs an excellent choice for applications including video and
telecom infrastructure, imaging/medical, and wireless infrastructure (WI). The C64x+™ devices are
upward code-compatible from previous devices that are part of the C6000™ DSP platform.
Based on 90-nm process technology and with performance of up to 9600 million instructions per second
(MIPS) [or 9600 16-bit MMACs per cycle] at a 1.2-GHz clock rate, the C6455 device offers cost-effective
solutions to high-performance DSP programming challenges. The C6455 DSP possesses the operational
flexibility of high-speed controllers and the numerical capability of array processors.
The C64x+ DSP core employs eight functional units, two register files, and two data paths. Like the earlier
C6000 devices, two of these eight functional units are multipliers or .M units. Each C64x+ .M unit doubles
the multiply throughput versus the C64x core by performing four 16-bit x 16-bit multiply-accumulates
(MACs) every clock cycle. Thus, eight 16-bit x 16-bit MACs can be executed every cycle on the C64x+
core. At a 1.2-GHz clock rate, this means 9600 16-bit MMACs can occur every second. Moreover, each
multiplier on the C64x+ core can compute one 32-bit x 32-bit MAC or four 8-bit x 8-bit MACs every clock
cycle.
The TCI6482 device includes Serial RapidIO®. This high bandwidth peripheral dramatically improves
system performance and reduces system cost for applications that include multiple DSPs on a board,
such as video and telecom infrastructures and medical/imaging.
2 Features
AJ
AH
AG
AF
AE
AD
AC
AB
AA
Y
W
V
U
T
R
P
N
M
L
K
J
H
G
F
E
D
C
B
A
1 3 5 7 9
2 4 6 8 10
Figure 1-1. CTZ/GTZ/ZTZ BGA Package (Bottom View)
