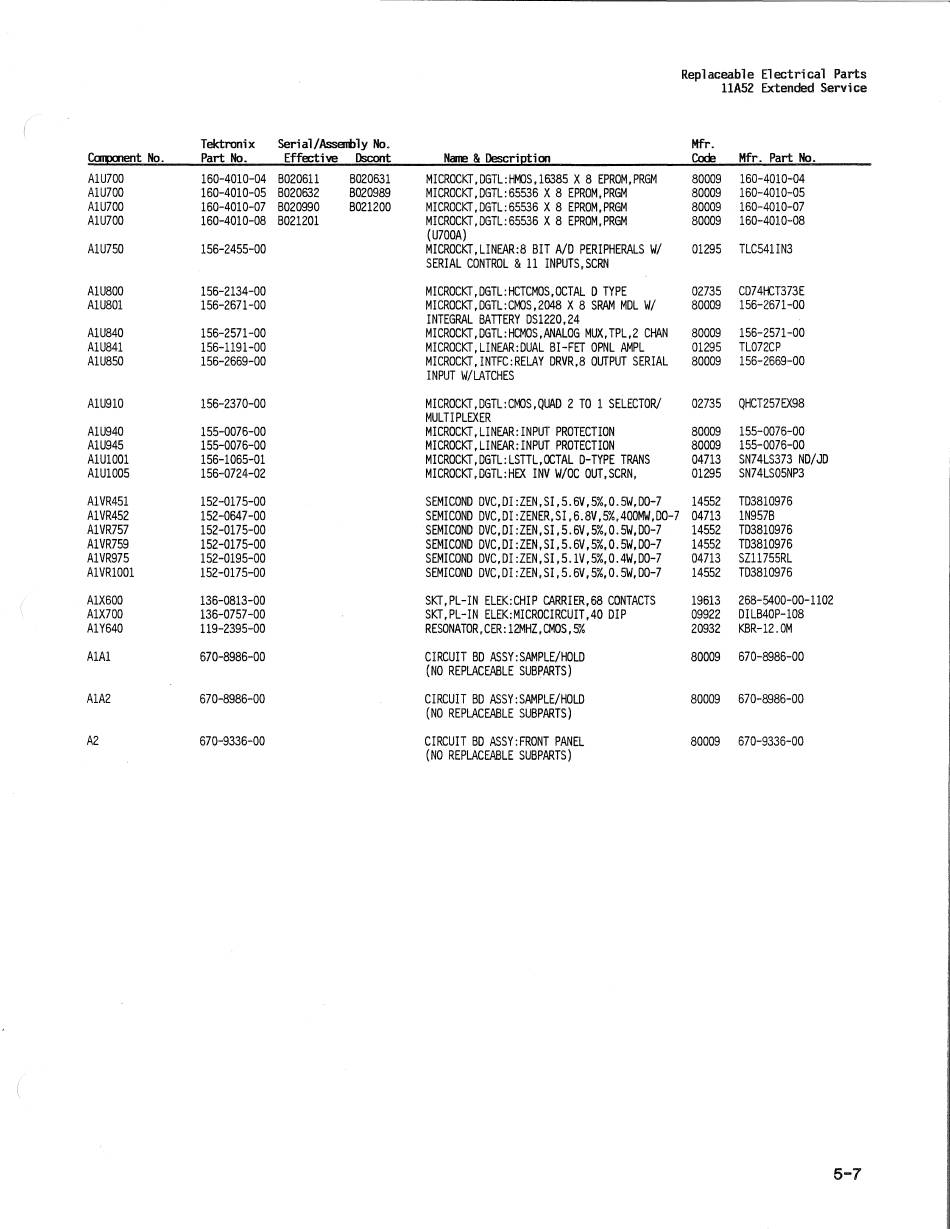

Tektronix 11A52 Service Manual page 99

- - - - -----------------------------------------------~
Replaceable Electrical Parts
11A52 Extended Service
Tektronix SeMal/Assemly
No.
Mfr.
Camaient No.
Part
No.
Effective
Dscont
Nane & Descrifilion
Code
Mfr. Part
No.
A1U700 160-4010-04 B020611 B020631 MICROCKT,D6TL:HMOS,16385 X 8 EPROM,PR6M 80009 160-4010-04
A1U700
160-4010-05 B020632 B020989 MICROCKT,D6TL:65536 X 8 EPROM,PR6M 80009 160-4010-05
A1U700 160-4010-07 B020990 B021200 MICROCKT,D6TL:65536 X 8 EPROM,PR6M 80009 160-4010-07
A1U700 160-4010-08 B021201 MICROCKT,D6TL:65536 X 8 EPROM,PR6M 80009 160-4010-08
(U700A)
A1U750 156-2455-00 MICROCKT,LINEAR:8 BIT AID PERIPHERALS W/ 01295 TLC541IN3
SERIAL CONTROL
&
11 INPUTS,SCRN
A1U800
156-2134-00 MICROCKT,06TL:HCTCMOS,OCTAL D TYPE 02735
CD74HCT373E
A1U801 156-2671-00 MICROCKT,06TL:CMOS,2048 X 8 SRAM MDL W/ 80009 156-2671-00
INTEGRAL BATTERY DS1220,24
A1U840 156-2571-00 MICROCKT,06TL:HCMDS,ANAL06 MUX,TPL,2 CHAN 80009 156-2571-00
A1U841 156-1191-00 MICROCKT,LINEAR:DUAL BI-FET OPNL AMPL 01295 TL072CP
A1U850 156-2669-00 MICROCKT,INTFC:RELAY DRVR,8 OUTPUT SERIAL 80009 156-2669-00
INPUT W/LATCHES
A1U910 156-2370-00 MICROCKT,06TL:CMOS,QU&\D 2 TO 1 SELECTOR/ 02735 QHCT257EX98
MULTIPLEXER
AlU940
155-0076-00 MICROCKT,LINEAR:INPUT PROTECTION 80009
155-0076-00
A1U945 155-0076-00 MICROCKT,LINEAR:INPUT PROTECTION 80009 155-0076-00
AlUlOOl 156-1065-01 MICROCKT,06TL:LSTTL,OCTAL 0-TYPE TRANS 04713
SN74LS373 ND/JO
AlU1005
156-0724-02
MICROCKT,06TL:HEX INV W/OC OUT,SCRN, 01295 SN74LS05NP3
A1VR451
152-0175-00
SEMICOND DVC,OI:ZEN,SI,5.6V,5%,0.5W,D0-7
14552
T03810976
A1VR452 152-0647-00 SEMICOND DVC,DI:ZENER,SI,6.8V,5%,400MW,00-7 04713 1N957B
A1VR757 152-0175-00 SEMICOND DVC,OI:ZEN,SI,5.6V,5%,0.5W,D0-7 14552 TD3810976
A1VR759 152-0175-00 SEMICOND DVC,OI:ZEN,Sl,5.SV,5%,0.SW,00-7 14552 TD3810976
AlVR975
152-0195-00
SEMICOND OVC,Ol:ZEN,Sl,5.1V,5%,0.4W,D0-7 04713 SZ11755RL
AlVRlOOl
152-0175-00
SEMICOND OVC,DI:ZEN,SI,5.6V,5%,0.5W,D0-7
14552
TD3810976
A1X600 136-0813-00 SKT,PL-IN ELEK:CHIP CARRIER,68 CONTACTS 19613 268-5400-00-1102
A1X700 136-0757-00 SKT,PL-IN ELEK:MICROCIRCUIT,40 DIP
09922
DILB40P-108
A1Y640
119-2395-00
RESONATOR,CER:12MHZ,CMOS,5"/,
20932
KBR-12.0M
AlAl
670-8986-00 CIRCUIT BO ASSY:SAMPLE/HOLD 80009 670-8986-00
(NO REPLACEABLE SUBPARTS)
A1A2
670-8986-00 CIRCUIT BO ASSY:SAMPLE/HOLD 80009 670-8986-00
(NO REPLACEABLE SUBPARTS)
A2
670-9336-00 CIRCUIT BO ASSY:FRONT PANEL 80009 670-9336-00
(NO REPLACEABLE SUBPARTS)
(
5-7
