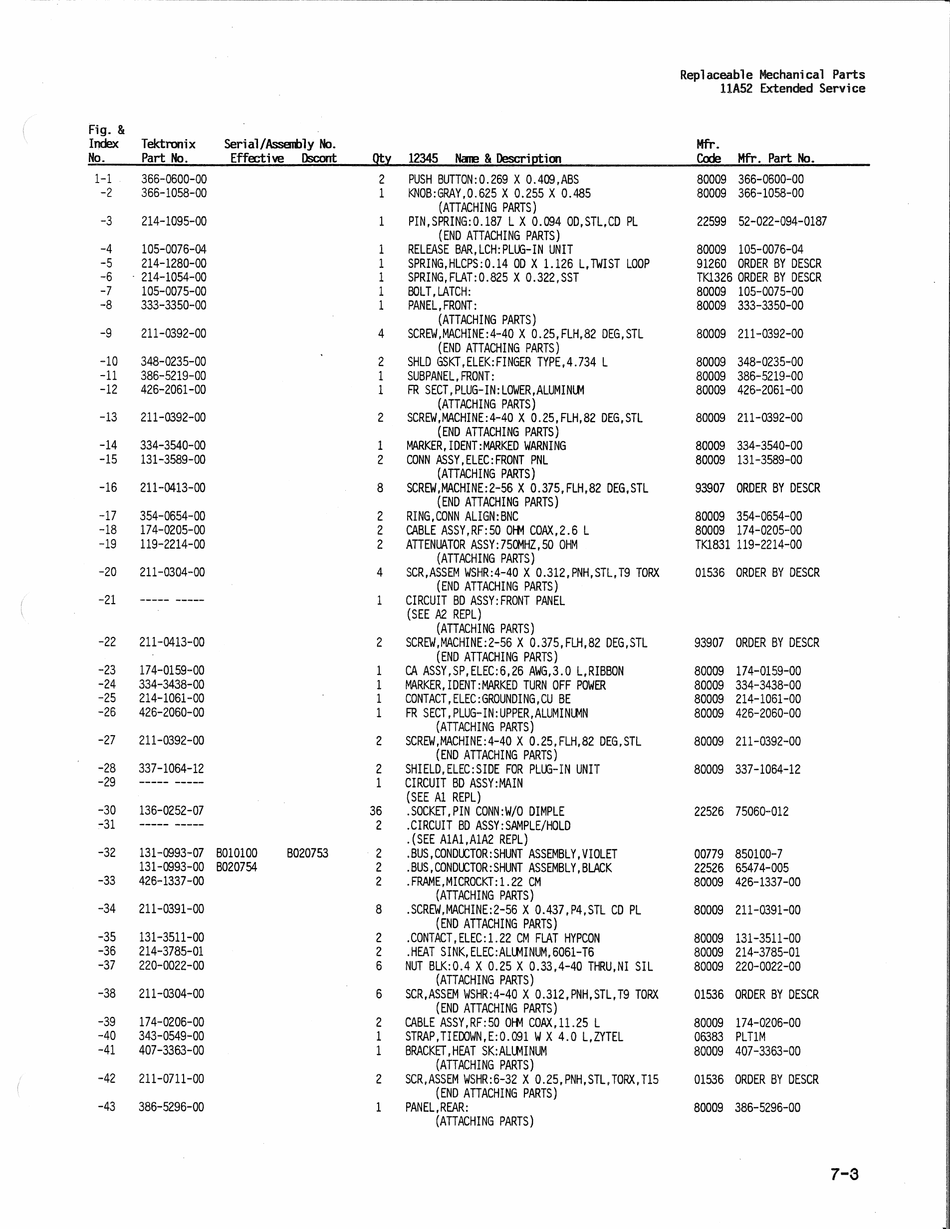

Tektronix 11A52 Service Manual page 125

Replaceable Mechanical Parts
11A52 Extended Service
Fig.
&
Index
Tektronix
Serial/Asselb1y No. Mfr.
No. Part No.
Effecthe
Dscont ~
12345
Nam
&
Descril!!:ion
Code
Mfr. Part No.
1-1 366-0600-00
2 PUSH BUTTON:0.269 X 0.409,ABS 80009 366-0600-00
-2 366-1058-00 1 KNOB:GRAY,0.625 X 0.255 X 0.485 80009 366-1058-00
(ATTACHING PARTS)
-3
214-1095-00 PIN,SPRING:0.187 L X 0.094 OD,STL,CD PL 22599 52-022-094-0187
(END ATTACHING PARTS)
-4
105-0076-04 1 RELEASE BAR,LCH:PLUG-IN UNIT 80009 105-0076-04
-5
214-1280-00 1 SPRING,HLCPS:0.14 DD X 1.126 L,TWIST LOOP 91260 ORDER BY DESCR
-6 . 214-1054-00
1 SPRING,FLAT:0.825 X 0.322,SST TK1326 ORDER BY DESCR
-7
105-0075-00 1 BOLT, LATCH: 80009 105-0075-00
-8 333-3350-00
1
PANEL, FRONT:
80009 333-3350-00
(ATTACHING PARTS)
-9
211-0392-00 4 SCREW,MACHINE:4-40 X 0.25,FLH,82 DEG,STL 80009 211-0392-00
(END ATTACHING PARTS)
-10 348-0235-00 2 SHLD GSKT,ELEK:FINGER TYPE,4.734 L 80009 348-0235-00
-11 386-5219-00
1
SUBPANEL,FRONT: 80009 386-5219-00
-12 426-2061-DD 1 FR SECT,PLUG-IN:LOWER,ALUMINLM 80009 426-2061-00
(ATTACHING PARTS)
-13 211-0392-00 2 SCREW,MACHINE:4-40 X 0.25,FLH,82 DEG,STL 80009 211-0392-00
(END ATTACHING PARTS)
-14 334-3540-00 1 MARKER,IDENT:MARKED WARNING 80009 334-3540-00
-15 131-3589-00 2 CONN ASSY,ELEC:FRONT PNL 80009 131-3589-00
(ATTACHING PARTS)
-16 211-0413-00 8 SCREW,MACHINE:2-56 X 0.375,FLH,82 DEG,STL 93907 ORDER BY DESCR
(END ATTACHING PARTS)
-17 354-0654-00
2 RING.CONN ALIGN:BNC 80009 354-0654-00
-18 174-0205-00
2
CABLE ASSY,RF:50 OHM COAX,2.6 L
80009 174-0205-00
-19
119-2214-00 2 ATTENUATOR ASSY:750MHZ,50 OHM TK1831 119-2214-00
(ATTACHING PARTS)
-20
211-0304-00 4 SCR,ASSEM WSHR:4-40 X 0.312,PNH,STL,T9 TORX 01536 ORDER BY DESCR
(END ATTACHING PARTS)
I
-21
----- -----
1 CIRCUIT BD ASSY:FRONT PANEL
\ (SEE A2 REPL)
(ATTACHING PARTS)
-22
211-0413-00 2 SCREW,MACHINE:2-56 X 0.375,FLH,82 DEG,STL 939D7 ORDER BY DESCR
(END ATTACHING PARTS)
-23 174-0159-00 1 CA ASSY,SP,ELEC:6,26 AWG,3.0 L,RIBBDN 80009 174-0159-00
-24 334-3438-00 1 MARKER,IDENT:MARKED TURN OFF POWER 80009 334-3438-00
-25 214-1061-00 1 CONTACT,ELEC:GROUNDING,CU BE 80009 214-1061-00
-26 426-2060-00 1 FR SECT,PLUG-IN:UPPER,ALUMINLMN
80009 426-2060-00
(ATTACHING PARTS)
-27 211-0392-00 2 SCREW,MACHINE:4-40 X 0.25,FLH,82 DEG,STL
80009 211-0392-00
(END ATTACHING PARTS)
-28 337-1064-12
2 SHIELD,ELEC:SIDE FOR PLUG-IN UNIT 80009 337-1064-12
-29
-----
-----
1 CIRCUIT BD ASSY:MAIN
(SEE Al REPL)
-30 136-0252-07 36
.SOCKET.PIN CONN:W/0 DIMPLE 22526 75060-012
-31
-----
----
2 .CIRCUIT BO ASSY:SAMPLE/HDLD
.(SEE A1Al,A1A2 REPL)
-32 131-0993-07 8010100 B020753
2 .BUS,CONDUCTOR:SHUNT ASSEMBLY.VIOLET
00779 850100-7
131-0993-00 8020754
2 .BUS,CONDUCTOR:SHUNT ASSEMBLY,BLACK 22526 65474-005
-33 426-1337-00
2 .FRAME,MICROCKT:l.22 CM
80009 426-1337-00
(ATTACHING PARTS)
-34 211-0391-00
8 .SCREW,MACHINE:2-56 X 0.437,P4,STL CD PL 80009 211-0391-00
(END ATTACHING PARTS)
-35 131-3511-00 2 .CONTACT,ELEC:l.22 CM FLAT HYPCON
80009 131-3511-00
-36
214-3785-01 2
.HEAT SINK,ELEC:ALLMINUM,6061-T6 80009 214-3785-01
-37 220-0022-00 6
NUT BLK:0.4 X 0.25 X 0.33,4-40 THRU,NI SIL 80009 220-0022-00
(ATTACHING PARTS)
-38 211-0304-00
6 SCR,ASSEM WSHR:4-40 X 0.312,PNH,STL,T9 TORX 01536 ORDER BY DESCR
(END ATTACHING PARTS)
-39
174-0206-00 2 CABLE ASSY,RF:50 OHM COAX,11.25 L 80009 174-0206-00
-40 343-0549-00
1 STRAP,TIEDOWN,E:0.091 W X 4.0 L,lYTEL
06383 PLTlM
-41 407-3363-00 1
BRACKET.HEAT SK:ALLMINUM 80009 407-3363-00
(ATTACHING PARTS)
I
-42 211-0711-00
2 SCR,ASSEM WSHR:6-32 X 0.25,PNH,STL,TORX,T15 01536 ORDER BY DESCR
(
(END ATTACHING PARTS)
-43
386-5296-00 1 PANEL.REAR: 80009 386-5296-00
(ATTACHING PARTS)
7-3
