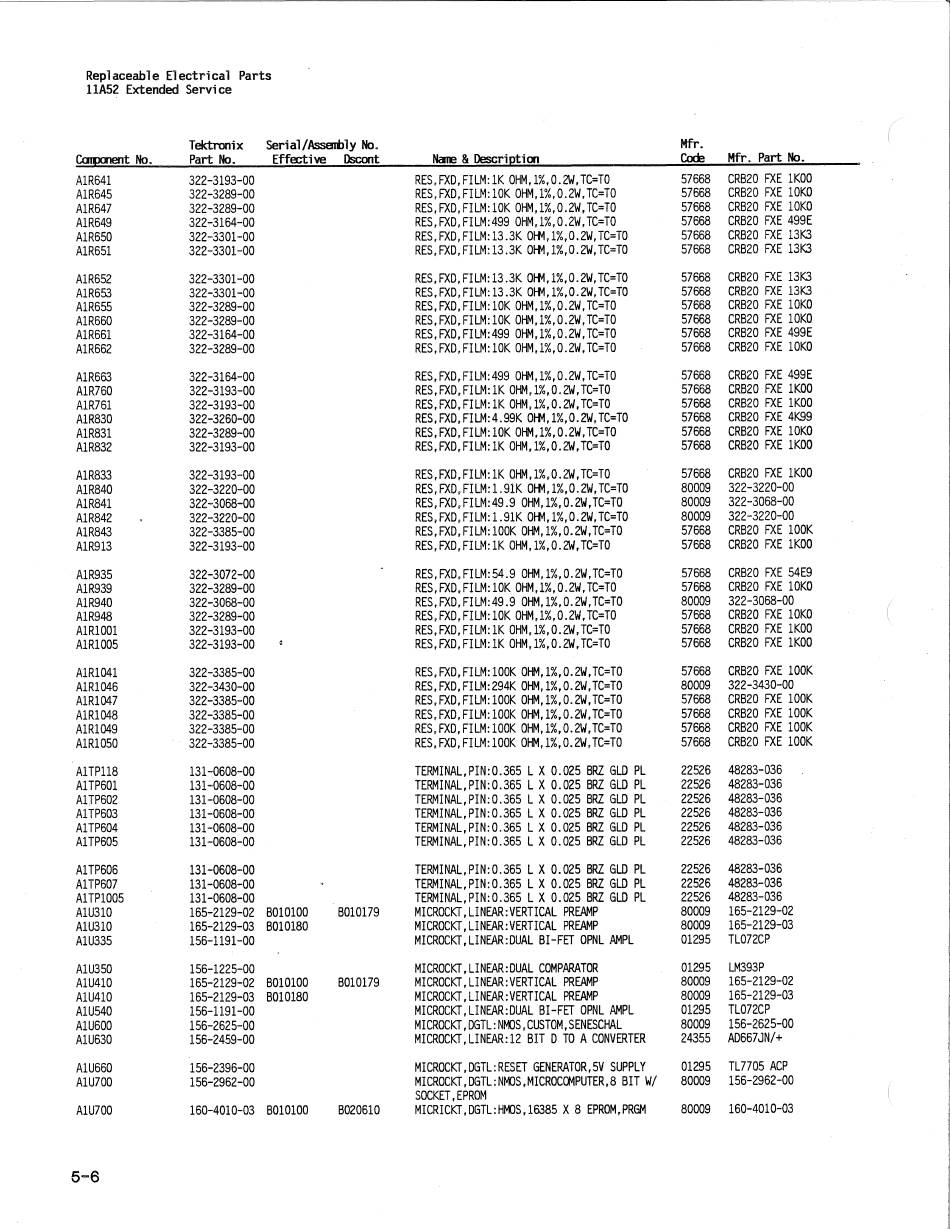

Tektronix 11A52 Service Manual page 98

Replaceable Electrical Parts
11A52 Extended Service
Tektronix
Serial/Assemly No.
Mfr.
(
Cama1ent
No.
Part No.
Effective
llscont Nane &
Descrie!:ion
CocE
Mfr. Part
No.
A1R641 322-3193-00
RES,FXD,FILM:lK OHM,1%,0.2W,TC=TO
57668 CRB20 FXE !KOO
A1R645 322-3289-00
RES,FXD,FILM:lOK OHM,1%,0.2W,TC=TO
57668 CRB20 FXE lOKO
A1R647 322-3289-00
RES,FXD,FILM:lOK OHM,1%,0.2W,TC=TO
57668 CRB20 FXE lOKO
A1R649 322-3164-00
RES,FXD,FILM:499 OHM,1%,0.2W,TC=TO
57668 CRB20 FXE 499E
A1R650 322-3301-00
RES,FXD,FILM:13.3K OHM,1%,0.2W,TC=TO 57668
CRB20 FXE 13K3
A1R651 322-3301-00
RES,FXD,FILM:13.3K OHM,1%,0.2W,TC=TO 57668
CRB20 FXE 13K3
A1R652 322-3301-00
RES,FXD,FILM:13.3K OHM,1%,0.2W,TC=TO 57668
CRB20 FXE 13K3
AlR653 322-3301-00
RES,FXD,FILM:l3.3K OHM,1%,0.2W,TC=TO 57668
CRB20 FXE 13K3
A1R655 322-3289-00
RES,FXD,FILM:lOK OHM,1%,0.2W,TC=TO
57668 CRB20 FXE lOKO
A1R660 322-3289-00
RES,FXD,FILM:lOK OHM,1%,0.2W,TC=TO 57668
CRB20 FXE lOKO
A1R661 322-3164-00
RES,FXD,FILM:499 OHM,1%,0.2W,TC=TO
57668 CRB20 FXE 499E
A1R662 322-3289-00
RES,FXD,FILM:lOK OHM,1%,0.2W,TC=TO 57668
CRB20 FXE lOKO
AlR663 322-3164-00
RES,FXD,FILM:499 OHM,1%,0.2W,TC=TO
57668 CRB20 FXE 499E
AlR760 322-3193-00
RES,FXD,FILM:lK OHM,1%,0.2W,TC=TO 57668
CRB20 FXE !KOO
A1R761 322-3193-00
RES,FXD,FILM:lK OHM,1%,0.2W,TC=TO 57668
CRB20 FXE !KOO
A1R830 322-3260-00
RES,FXD,FILM:4.99K OHM,1%,0.2W,TC=TO 57668
CR820 FXE 4K99
A1R831
322-3289-00
RES,FXD,FILM:lOK OHM,l%,0.2W,TC=TO 57668
CRB20 FXE lOKO
AlR832 322-3193-00
RES,FXD,FILM:lK OHM,1%,0.2W,TC=TO
57668 CRB20 FXE !KOO
A1R833 322-3193-00
RES,FXD,FILM:lK OHM,1%,0.2W,TC=TO 57668
CRB20 FXE !KOO
A1R840 322-3220-00
RES,FXD,FILM:l.91K OHM,1%,0.2W,TC=TO
80009 322-3220-00
A1R841 322-3068-00
RES,FXD,FILM:49.9 OHM,1%,0.2W,TC=TO 80009 322-3068-00
A1R842 322-3220-00
RES,FXD,FILM:l.91K OHM,1%,0.2W,TC=TO
80009 322-3220-00
A1R843 322-3385-00
RES,FXD,FILM:lOOK OHM,1%,0.2W,TC=TO
57668 CRB20 FXE lOOK
A1R913 322-3193-00
RES,FXD,FILM:lK OHM,1%,0.2W,TC=TO 57668
CRB20 FXE !KOO
A1R935 322-3072-00
RES,FXD,FILM:54.9 OHM,1%,0.2W,TC=TO
57668 CRB20 FXE 54E9
A1R939 322-3289-00
RES,FXD,FILM:lOK OHM,1%,0.2W,TC=TO 57668 CRB20 FXE lOKO
A1R940 322-3068-00
RES,FXD,FILM:49.9 OHM,1%,0.2W,TC=TO
80009 322-3068-00
(
A1R948 322-3289-00
RES,FXD,FILM:lOK OHM,1%,0.2W,TC=TO 57668 CRB20 FXE lOKO
AlRlOOl 322-3193-00
RES,FXD,FILM:lK OHM,1%,0.2W,TC=TO
57668 CR820 FXE lKOO
A1R1005
322-3193-00 RES,FXD,FILM:lK OHM,1%,0.2W,TC=TO
57668 CRB20 FXE !KOO
A1Rl041 322-3385-00
RES,FXD,FILM:lOOK OHM,1%,0.2W,TC=TO
57668 CRB20 FXE lOOK
A1R1046 322-3430-00
RES,FXD,FILM:294K OHM,1%,0.2W,TC=TO
80009 322-3430-00
A1R1047 322-3385-00
RES,FXD,FILM:lOOK OHM,1%,0.2W,TC=TO
57668 CRB20 FXE lOOK
A1R1048 322-3385-00
RES,FXD,FILM:lOOK OHM,1%,0.2W,TC=TO 57668
CR820 FXE lOOK
A1Rl049 322-3385-00
RES,FXD,FILM:lOOK OHM,1%,0.2W,TC=TO 57668
CRB20 FXE lOOK
A1R1050 322-3385-00
RES,FXD,FILM:lOOK OHM,1%,0.2W,TC=TO 57668 CRB20 FXE lOOK
A1TP118 131-0608-00 TERMINAL,PIN:0.365 L X 0.025 BRZ GLD PL
22526 48283-036
A1TP601 131-0608-00
TERMINAL,PIN:0.365 L X 0.025 BRZ GLD PL
22526 48283-036
Al;rP602 131-0608-00
TERMINAL,PIN:0.365 L X 0.025 BRZ GLD PL 22526
48283-036
A1TP603 131-0608-00
TERMINAL,PIN:0.365 L X 0.025 BRZ GLD PL 22526
48283-036
A1TP604 131-0608-00
TERMINAL,PIN:0.365 L X 0.025 BRZ GLD PL 22526
48283-036
A1TP605
131-0608-00
TERMINAL,PIN:0.365 L X 0.025 BRZ GLD PL 22526
48283-036
A1TP606 131-0608-00
TERMINAL,PIN:0.365 L X 0.025 BRZ GLD PL 22526
48283-036
A1TP607 131-0608-00 TERMINAL,PIN:0.365 L X 0.025 BRZ GLD PL
22526 48283-036
A1TP1005 131-0608-00
TERMINAL,PIN:0.365 L X 0.025 BRZ GLD PL 22526 48283-036
A1U310
165-2129-02 B010100 B010179 MICROCKT,LINEAR:VERTICAL PREAMP
80009 165-2129-02
A1U310 165-2129-03 B010180 MICROCKT,LINEAR:VERTICAL PREAMP
80009 165-2129-03
A1U335 156-1191-00
MICROCKT,LINEAR:DUAL BI-FET OPNL AMPL
01295 TL072CP
A1U350 156-1225-00
MICROCKT, LINEAR:DUAL COMPARATOR
01295 LM393P
A1U410
165-2129-02 B010100 B010179 MICROCKT,LINEAR:VERTICAL PREAMP
80009 165-2129-02
A1U410 165-2129-03 B010180
MICROCKT,LINEAR:VERTICAL PREAMP
80009 165-2129-03
A1U540 156-1191-00
MICROCKT,LINEAR:DUAL BI-FET OPNL AMPL 01295
TL072CP
A1U600 156-2625-00
MICROCKT,DGTL:NMOS,CUSTOM,SENESCHAL 80009 156-2625-00
A1U630
156-2459-00
MICROCKT,LINEAR:12 BIT D TO A CONVERTER
24355
AD667JN/+
A1U660 156-2396-00
MICROCKT,DGTL:RESET GENERATOR,5V SUPPLY 01295
TL7705 ACP
A1U700 156-2962-00
MICROCKT,DGTL:NMOS,MICROCOMPUTER,8 BIT W/ 80009
156-2962-00
SOCKET,EPROM
A1U700 160-4010-03 B010100 B020610
MICRICKT,DGTL:HMOS,16385 X 8 EPROM,PRGM 80009
160-4010-03
5-6
