StarTech.com ARMCBCLB User Manual

StarTech.com ARMCBCLB User Manual

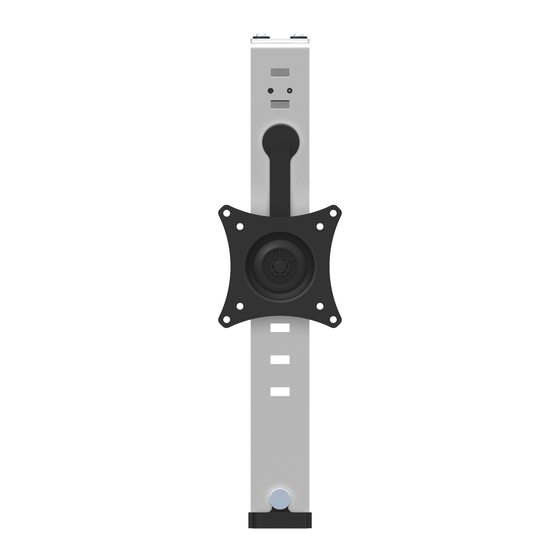

Cubicle monitor hanger with height adjustment, silver

Advertisement

Quick Links

Cubicle Monitor Hanger with Height
Adjustment | Silver
Actual product may vary from photos
User Manual
SKU#: ARMCBCLB
For the latest information and specifications visit
www.startech.com/ARMCBCLB
Manual Revision: 12/09/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARMCBCLB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com ARMCBCLB

  • Page 1 Cubicle Monitor Hanger with Height Adjustment | Silver Actual product may vary from photos User Manual SKU#: ARMCBCLB For the latest information and specifications visit www.startech.com/ARMCBCLB Manual Revision: 12/09/2019...
  • Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
  • Page 3: Warning Statements

    Freien verwendet werden. Dichiarazioni di avvertenza • Assicurarsi di Assemblare il prodotto secondo le istruzioni. • Non superare la capacità di carico del prodotto. Il sovraccarico del prodotto To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 4 • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 • 本製品で定められた最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした 場合、 怪我をする恐れや器物破損の恐れがあります。 本製品は、 モニター1台あたり8kgまで支持 できます。 • 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 5: Table Of Contents

    Attaching a Monitor ..........................15 Routing Cables ............................18 Tightening the VESA Mount ......................... 19 Making Micro Adjustments ........................19 Adjusting the Height of the Monitor ....................19 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 6: Product Diagram

    Product Diagram Cubicle Mount Adjustment Screws (x 2) Height Adjustment Handle VESA Mount Height-Adjustment Holes To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 7: Product Dimensions

    Product Dimensions To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 8 No Bracket Extension To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 9 Full Bracket Extension To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 10: Product Information

    Product Information Package Contents Cubicle Mount EVA Foam Pad Qty: One Qty: One Hex Key M4x12 mm Screws Qty: One Qty: Four To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 11 M4x16 mm Screws M5x12 mm Screws Qty: Four Qty: Four M5x16 mm Screws Washers Qty: Four Qty: Four Spacers Qty: Four To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 12: Product Specifications

    Product Specifications 75 x 75 100 x 100 VESA 17.6 lb. (8 kg) Weight Max. 32 “ Screen Size Rotation To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 13: Requirements

    - 10 to + 10 Tilt - 10 to + 10 Swivel Requirements Phillips Head Screwdriver • Pliers • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 14: Installation

    Cubicle Mount to fit closer to the Cubicle Wall. For example EVA Padding can be placed on the inside of the Bracket to provide a tighter fit to the Cubicle Wall. EVA Padding Placement To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 15 When the Cubicle Mount is in the desired position on the Cubicle Wall, use the Hex Key (included) to re-tighten the two Adjustment Screws on the top of the Cubicle Mount. Tightening the Adjustment Screws To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 16: Attaching A Monitor

    VESA Mount Screw on the side of the VESA Mount. Pull the VESA Mount up to disengage the VESA Mount from the Holder on the Cubicle Mount. Removing the VESA Mount To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 17 While supporting the weight of the Monitor, slide the VESA Mount overtop of the Holder. Tighten the VESA Mount Screw to secure the Monitor in place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 18 Use a Phillips Head Screwdriver to tighten the screws, being careful not to over-tighten. While supporting the weight of the Monitor, slide the VESA Mount overtop of the Holder. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 19: Routing Cables

    Monitor Cables can be routed down the Cubicle Mount • and out through the Cable Management Clip located at the bottom of the Cubicle Mount. Routing the Cables To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 20: Tightening The Vesa Mount

    Adjustment Handle out of its current position. Slide the Monitor up or down until the Latch Hook on the Height Adjustment Handle is aligned with the desired Adjustment Hole. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 21 Slowly release the Height Adjustment Handle allowing the Latch Hook to catch, securing the Monitor in place. Please ensure that the Latch Hook is properly engaged before releasing the Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
  • Page 22 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 23 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
