Proline Promag 50H, 53H
Endress+Hauser

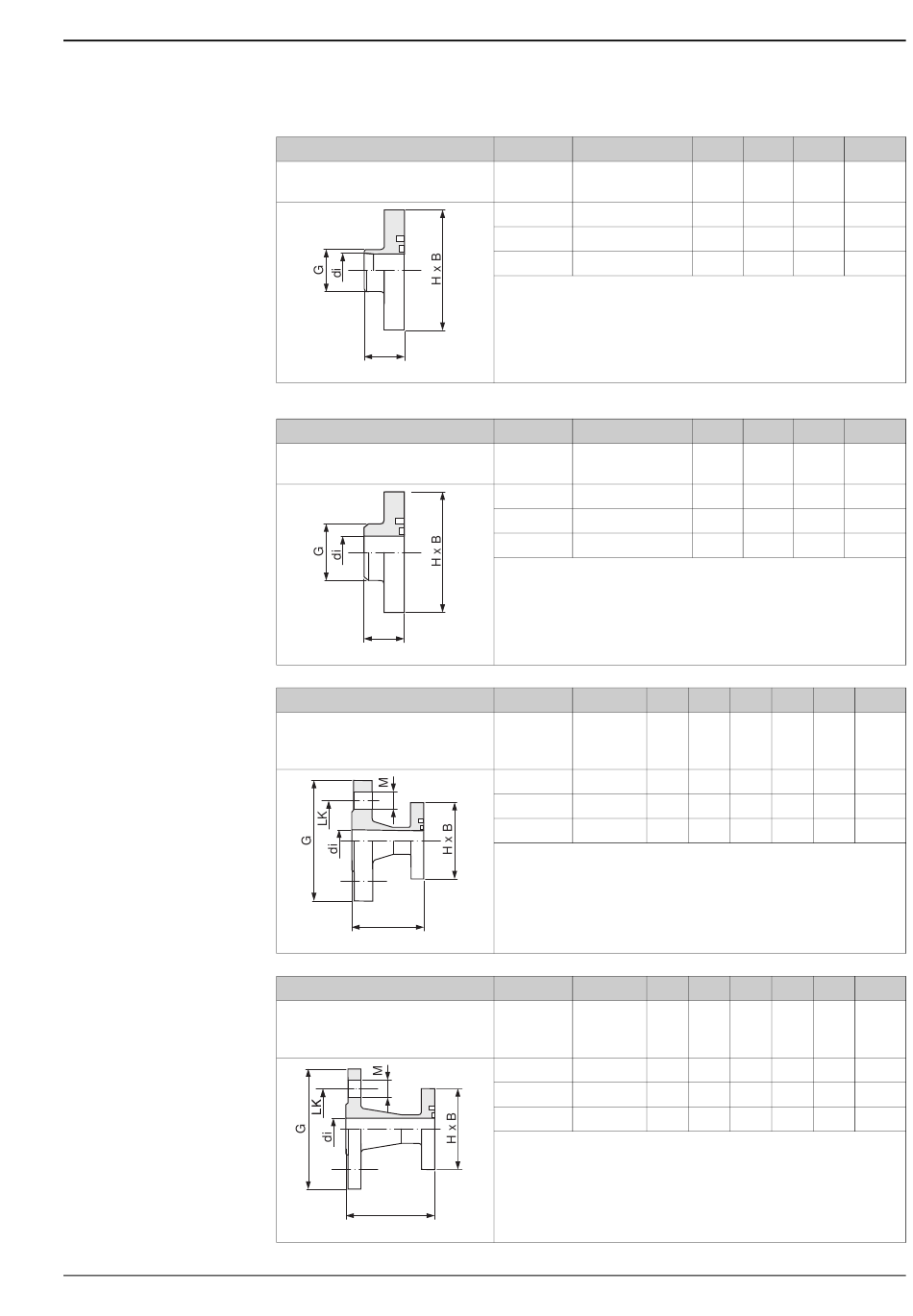

Process connections with O-ring seal (DN 2 to 25 / 1/12 to 1")
Weld socket for DIN
1.4404 / 316L
5*H**-B***********
L
Weld socket for ODT/SMS
1.4404 / 316L
5*H**-C***********
L
Flange
PN 40/EN 1092-1 (DIN 2501), Form B
1.4404 / 316L
5*H**-D***********
L
Flange
Cl. 150/ ANSI B16.5
1.4404 / 316L
5*H**-E***********
L
Sensor Fits to
DN Piping
[mm] DIN EN ISO 1127
2 to 8 13.5 × 1.6
15 21.3 × 1.6
25 (DIN) 33.7 × 2.0
• Fitting length = (2 × L) + 86 mm
A0005547
Sensor Fits to
DN Piping ODT/SMS
[mm] [mm]
2 to 8 13.5 × 2.3
15 21.3 × 2.65
25 (DIN) 33.7 × 3.25
• Fitting length = (2 × L) + 86 mm
A0005548
Sensor Fits to
1)
DN Flange
[mm] [mm]
2 to 8 DN 15
15 DN 15
25 (DIN) DN 25
1)
EN 1092-1 (DIN 2501)
• Fitting length = (2 × L) + 86 mm
• Fitting length to DVGW (200 mm)
A0005549
Sensor Fits to
Flange
DN ANSI B16.5
[mm] [inch]
2 to 8 ½"
15 ½"
25 (1" ANSI) 1"
• Fitting length = (2 × L) + 86 mm
A0005550
di G L
[mm] [mm] [mm]
10.3 13.5 20.3
18.1 21.3 20.3
29.7 33.7 20.3
di G L
[mm] [mm] [mm]
17.3 13.5 20.3
17.3 21.3 20.3
28.5 33.7 20.3
di G L LK
[mm] [mm] [mm] [mm] [mm]
17.3 95 56.2 65
17.3 95 56.2 65
28.5 115 56.2 85
di G L LK
[mm] [mm] [mm] [mm] [mm]
15.7 89 66.0 60.5 15.7
16.0 89 66.0 60.5 15.7
26.7 108 71.8 79.2 15.7
H × B
[mm]
62 × 42
62 × 42
62 × 52
H × B
[mm]
62 × 42
62 × 42
72 × 55
M H × B
[mm]
14 62 × 42
14 62 × 42
14 72 × 55
M H × B
[mm]
62 × 42
62 × 42
72 × 55
