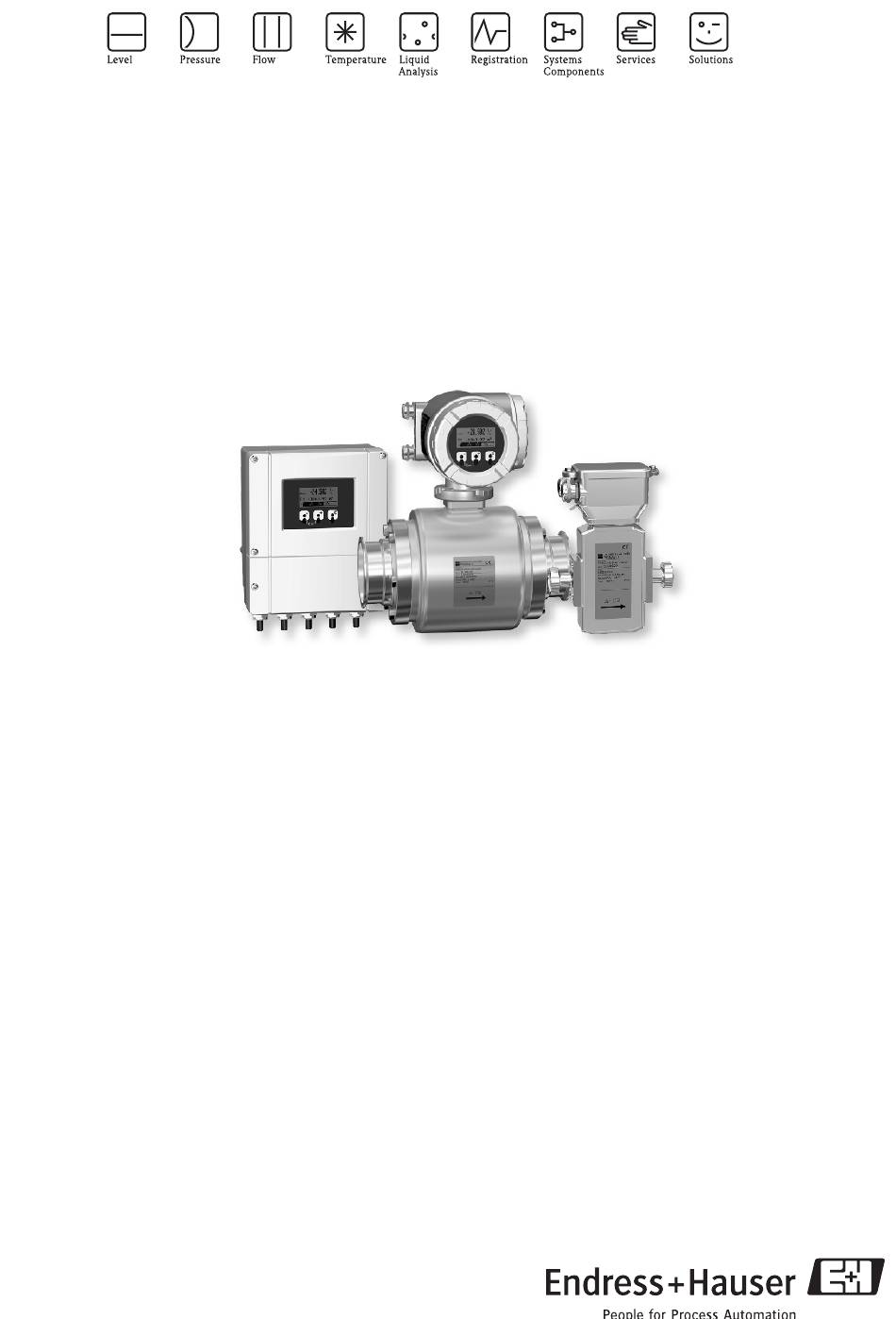

Technical Information

Proline Promag 50H, 53H
Electromagnetic Flow Measuring System
Flow measurement in hygiene, food and beverage or
process applications
Applications
Electromagnetic flowmeter for bidirectional
measurement of liquids with a minimum conductivity
of ≥ 5 µS/cm:
• Beverages, e.g. fruit juice, beer, wine
• Milk products, fruit mixtures
• Salt solutions
• Acids and causic solutions, etc.
• Flow measurement up to 4700 m
• Fluid temperature up to +150 °C
• Process pressures up to 40 bar
• CIP/SIP cleaning
• Stainless steel housing
Approvals in the food industry/hygiene sector:
• 3A authorization, EHEDG-tested, conformity with
FDA
Application-specific lining materials:
• PFA
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS
Connection to process control system:
• HART, PROFIBUS DP/PA, FOUNDATION Fieldbus,
MODBUS RS485
TI048D/06/en/07.05
50096457
Features and benefits
Promag measuring devices offer you cost-effective flow
measurement with a high degree of accuracy for a wide
range of process conditions.
The Proline transmitter concept comprises:
• Modular device and operating concept resulting in a
higher degree of efficiency
• Software options for batching, electrode cleaning and
3
/h
pulsating flow
• Uniform operating concept
The tried-and-tested Promag sensors offer:
• No pressure loss
• Insensitivity to vibrations
• Simple installation and commissioning
