Fitted electrodes

Process connections

Surface roughness

46

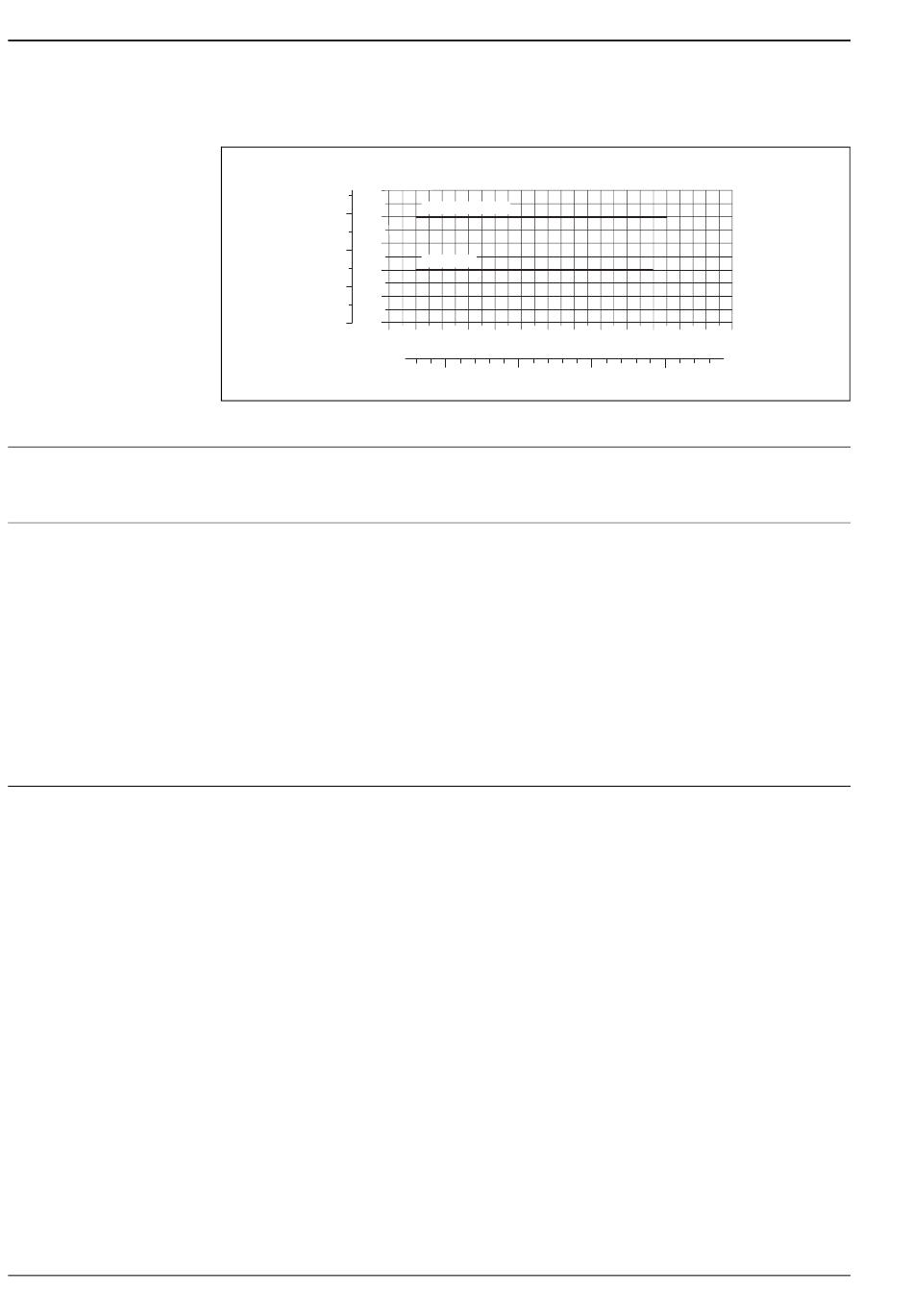

Flange connection to JIS B2220
Material: 1.4404 / 316L, PVDF
[psi] [bar]
25
300
20
15
200
10
100
5
0
0
-60 -40 -20
Measuring electrodes and empty pipe detection electrodes
• Standard with: 1.4435/316L, Alloy C-22, Tantalum, Platinum
• DN 2 to 15 (1/12 to ½"): without empty pipe detection electrode
With O-ring:
• Weld sockets (DIN EN ISO 1127, ODT/SMS)
• Flange (EN (DIN), ANSI, JIS)
• PVDF flange (EN (DIN), ANSI, JIS)
• External pipe thread
• Internal pipe thread
• Hose connection
• PVC adhesive fittings
With gasket seals:
• Weld sockets DIN 11850, ODT/SMS
• Clamps (ISO 2852, DIN 32676, L14 AM7)
• Threaded joint DIN 11851, DIN 11864-1, ISO 2853, SMS 1145
• Flange DIN 11864-2
(All data refer to parts in contact with medium)
• Measuring tube lining with PFA: ≤ 0.4 μm (15 μin)
• Electrodes
– 1.4435/316L, Alloy C-22, Tantalum, Platinum: ≤ 0.3 to 0.5 μm (12 to 20 μin)
• Process connection made of stainless-steel: ≤ 0.8 μm (31 μin)
20K (1.4404 / 316L)
10K (PVDF)
0 20 40 60 80 100 120 140 160 180 [°C]
-40 0 100
Proline Promag 50H, 53H
200 300
360 [°F]
