Installing the application

The Flying Shear for Roll Forming machines application must be installed on the ADV200(/S) drive to be
used.
The operations to be performed are listed below.
• Run the rffs_x_x_47_x_setup.exe application to set up the installation on a PC.
• Open the GF_eXpress configurator (catalogue version > 2.42)
• Connect the PC to the drive using the serial cable.
• On the GF_eXpress, select the ADV200 inverter (for asynchronous motors) and ADV200S inverter (for
synchronous motors).

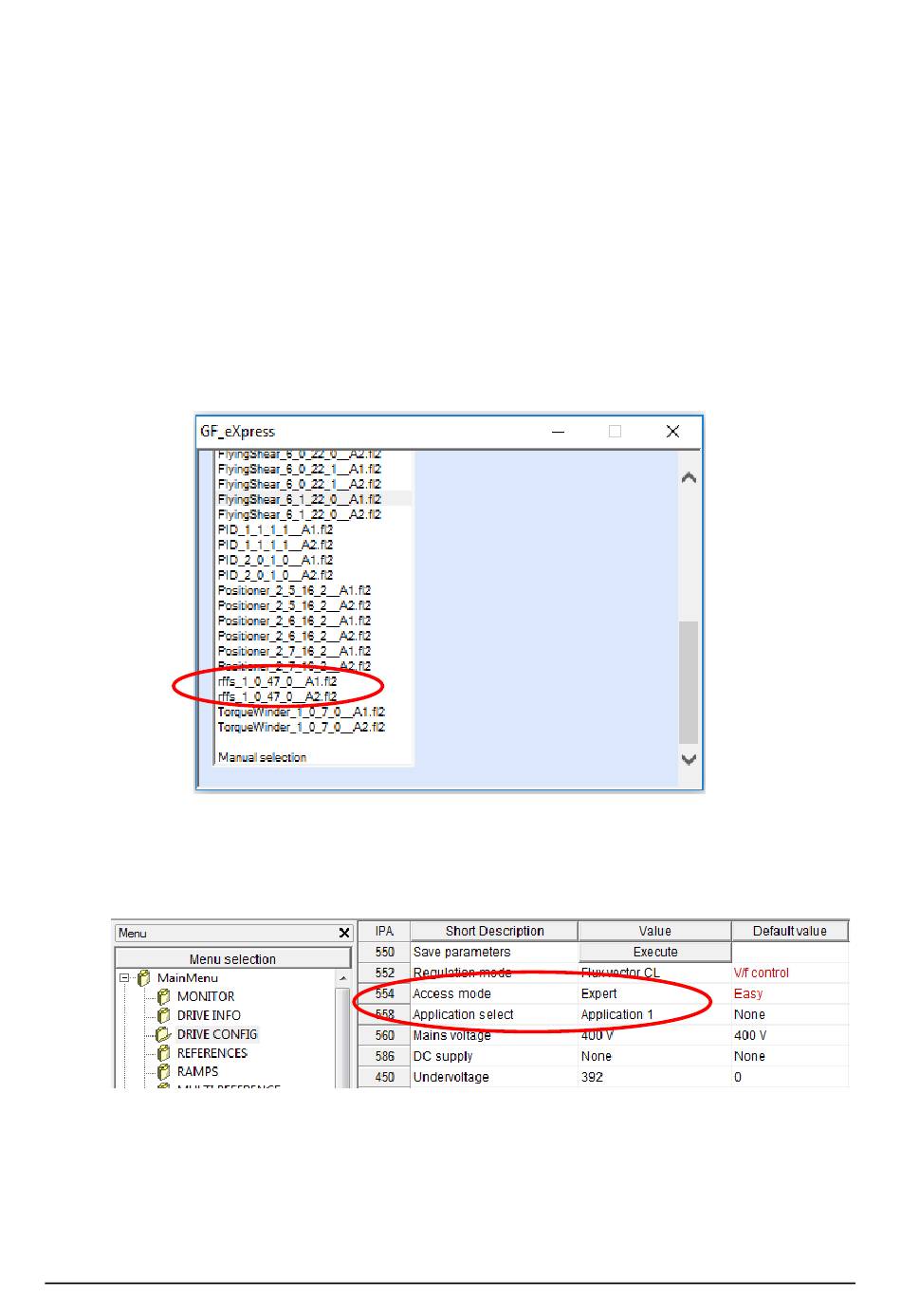

• Once communication with the drive has been established, select the Download Firmware item on the
command bar. Then the window depicted below will appear. In that window, select the Flying Shear
for Roll Forming machines application (A1 to load the application on memory sector 1, A2 to load
the application on memory sector 2).
During this operation, do not turn off the drive.
• Once the firmware has been loaded, the application has to be enabled on the drive:
- Select the "expert" mode using the Access Mode parameter (PAR 554, - DRIVE CONFIG menu).
- Select the application:
o Save and reset the drive. At the start, the drive will show the message, "ADV200 rffs V..." on
the display to confirm that the drive has been loaded.
• Perform a default load of the application parameters (App load def, PAR 11524) and then save.
Restart GF_eXpress. This will automatically recognize the application version and select the
appropriate parameters.
Then, configuration can begin.
.
Flying Shear for Roll Forming machines – Instruction manual
Application 1 if the rffs _..._A1 application was loaded
Application 2 if the rffs _..._A2 application was loaded
