(F3Lp02-0N) Fiber-Optic Fa Link H Module - YOKOGAWA Revolution FA-M3 R Technical Information

P L C
P L C
High-speed data transmission between FA-M3 R controllers for data
sharing, Fiber-optic cable
F3LP12-0N
Item
Up to 8192
Link relays
Up to 8192
Link registers
Transmission
Max. 1.25 Mbps
speed
Maximum
1 km between units
transmission
10 km of total extension
distance
Network
Daisy chain
topology
Transmission
Two-core fiber-optic cable
media
F3LP12-0N Fiber-optic FA Link H Module
Fiber-optic FA link H is a high-speed fiber-optic network for data exchange between FA-M3 R
controllers. Up to 32 stations, where one station corresponds to one FA link H module, can be
linked together for data sharing.
Up to 8 fiber-optic FA link H modules can be installed in an FA-M3 R main unit (for the
SP28, SP38, SP53 or SP58; up to 2 modules for the SP21) to allow data links to be
structured hierarchically.
The numbers of link devices can be set arbitrarily for each CPU.
There are two operation modes for each FA link H: normal mode and high-speed mode. In
the normal mode,up to 2048 link relays and 2048 link registers can be used per module. In
the high-speed mode, up to 1024 link relays and 1024 link registers can be used per
module.
High noise immunity of fiber-optic cables allows a transmission speed of as fast as 1.25
Mbps over maximum inter-station distances of 1 km and the total extension of 10 km.
The network topology is daisy chain.
TI 34M6A01-01E
Fiber-optic FA Link H Module
Specification
(up to 2048 per system)
(up to 2048 per system)
F3LP12-0N
Fiber-optic FA Link H
FA-M3 R
(max. 1.25 Mbps,max. 10 km,
connecting max. 32 stations)
Fiber-optic cables
F3LP12-0N

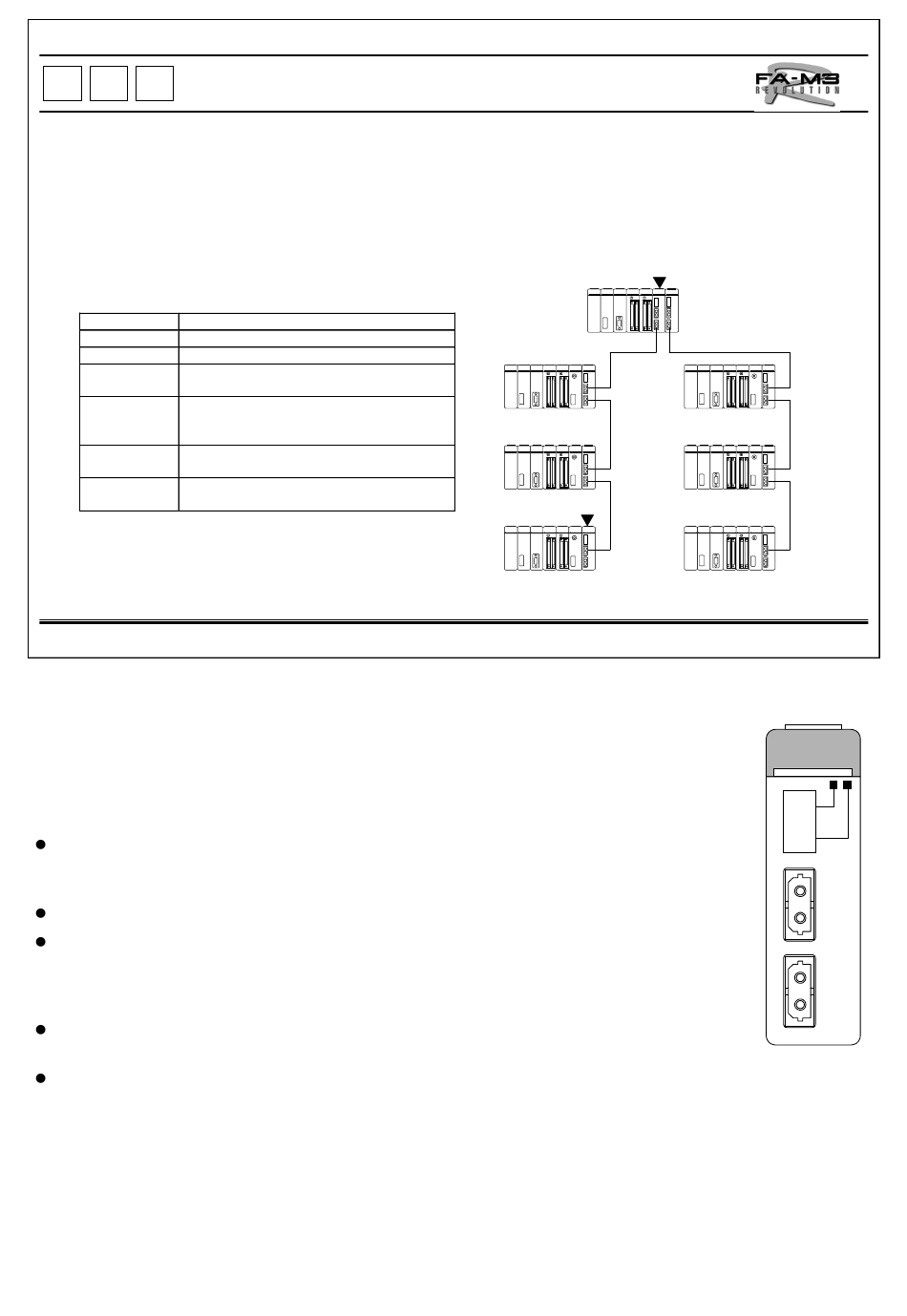

Daisy chain configuration
RDY
SND
ERR
LP12-0N
FA LINK
STATION NO.
1
2
F3LP12-0N
41
