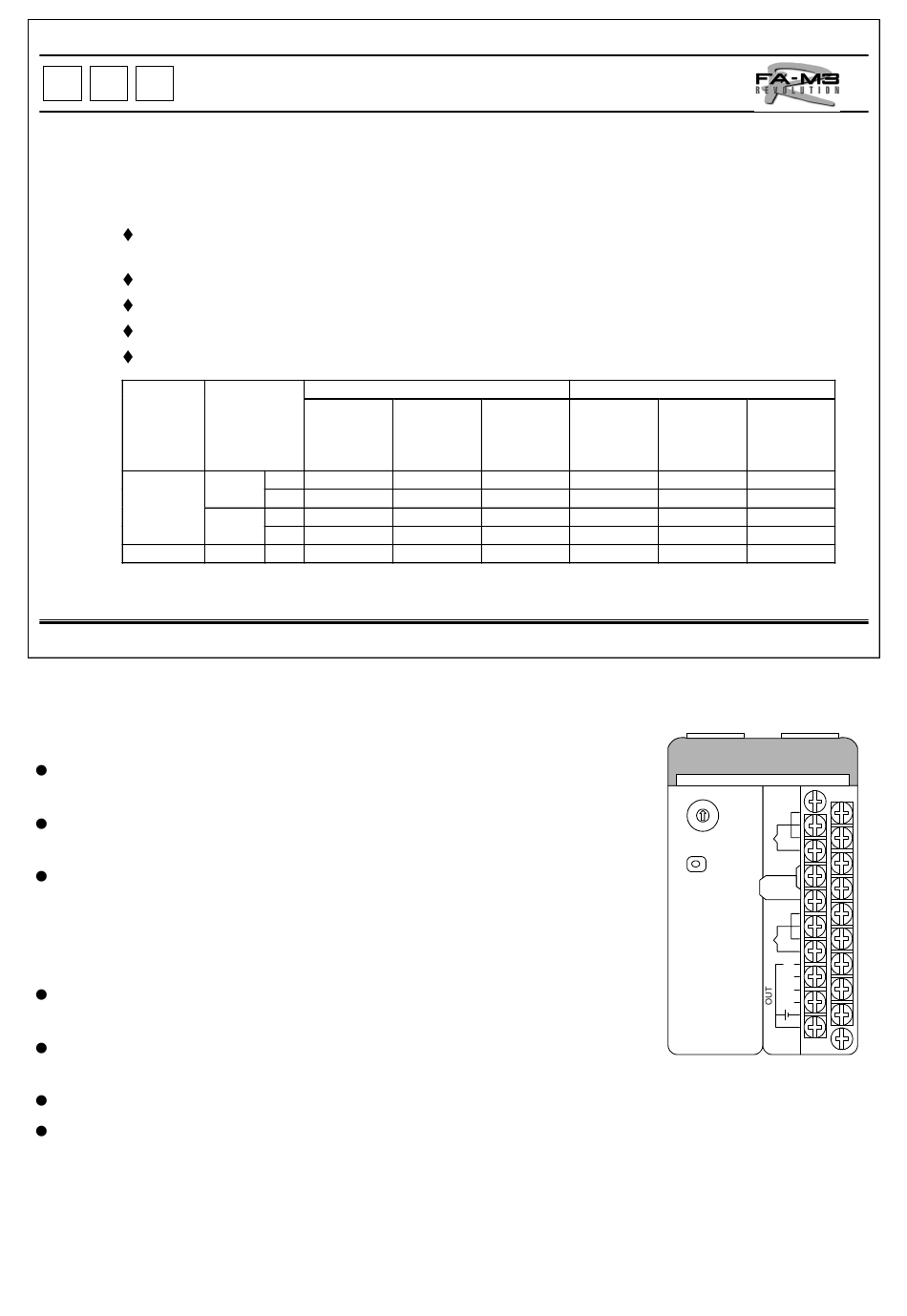

Four Temperature Controllers in One Compact FA-M 3 R Module
Wide range of temperature controller module lineups for all types of inputs and outputs.
Selectable speed of control span according to the application requirement: 500 ms/4 channels,
250 ms/2 channels, 125 ms/channel
Auto/manual mode switching useful for sequence maintenance at machine startup.
PID control for heating/cooling
Overshoot protection feature
Cascade control using multiple channels
Module
name
Temperature
control and
monitoring F3CR04
PID control F3CV04
F3CT04-0N and F3CT04-1N Temperature Control and Monitoring
Modules for Thermocouple input
One module can control and monitor up to 4 thermocouples or 4 mv
input loops.
Provided with the multi-range input system, the input ranges of all 4
channels can be set by a rotary switch.
The universal control output system enables the output type for each
channel to be selected between time-proportional PID output (open
collector or voltage pulse) and continuous PID output (4-20 mA).
However, a continuous PID output is only available on the F3CT04-
1N module.
Can be used as a heating/cooling controller, though a different
output module is required for the cooling output.
Multiloop control using multiple channels, such as cascade control,
can be performed using ladder and BASIC programs.
Loop-back feature facilitates system debugging.
Auto tuning function as well as overshoot suppression function,
which uses fuzzy logic and is called the "SUPER" function, are
provided as standard for optimum control.
TI 34M6A01-01E
Temperature Control Modules
Model
TC/mV
4
-0N
F3CT04
4
-1N
-0N
-1N
-1N
Input Type
RTD
DC Voltage
Pt100Ω
4
4
4
Output Type
Time- Time-
proportional proportional
Open Voltage
Collector Pulse
4 4
4 4
4 4
4 4
4 4
RDY
ALM
ERR
CT04-1N
INPUT
50 60Hz
F3CT04-1N
4-20 mA
Continuous
4
4
4
TC/PID
IN4
IN3
+
V
·
TC
-
IN2
IN1
+
V
·
TC
-
4
3
2
1
COM
