A personal computer or display unit can be connected to the programming port of a
sequence CPU module, providing an instant and low-cost personal computer link.
The same commands are used for personal computer link modules are sequence CPU modules.
Note: The following cables are available for connection from Yokogawa.
Model:
Specification:
Model :
Specification :
Note: For details, see the General Specifications, FA-M3 CPU Port Cables (GS 34M6C91-01E).
TI 34M6A01-01E

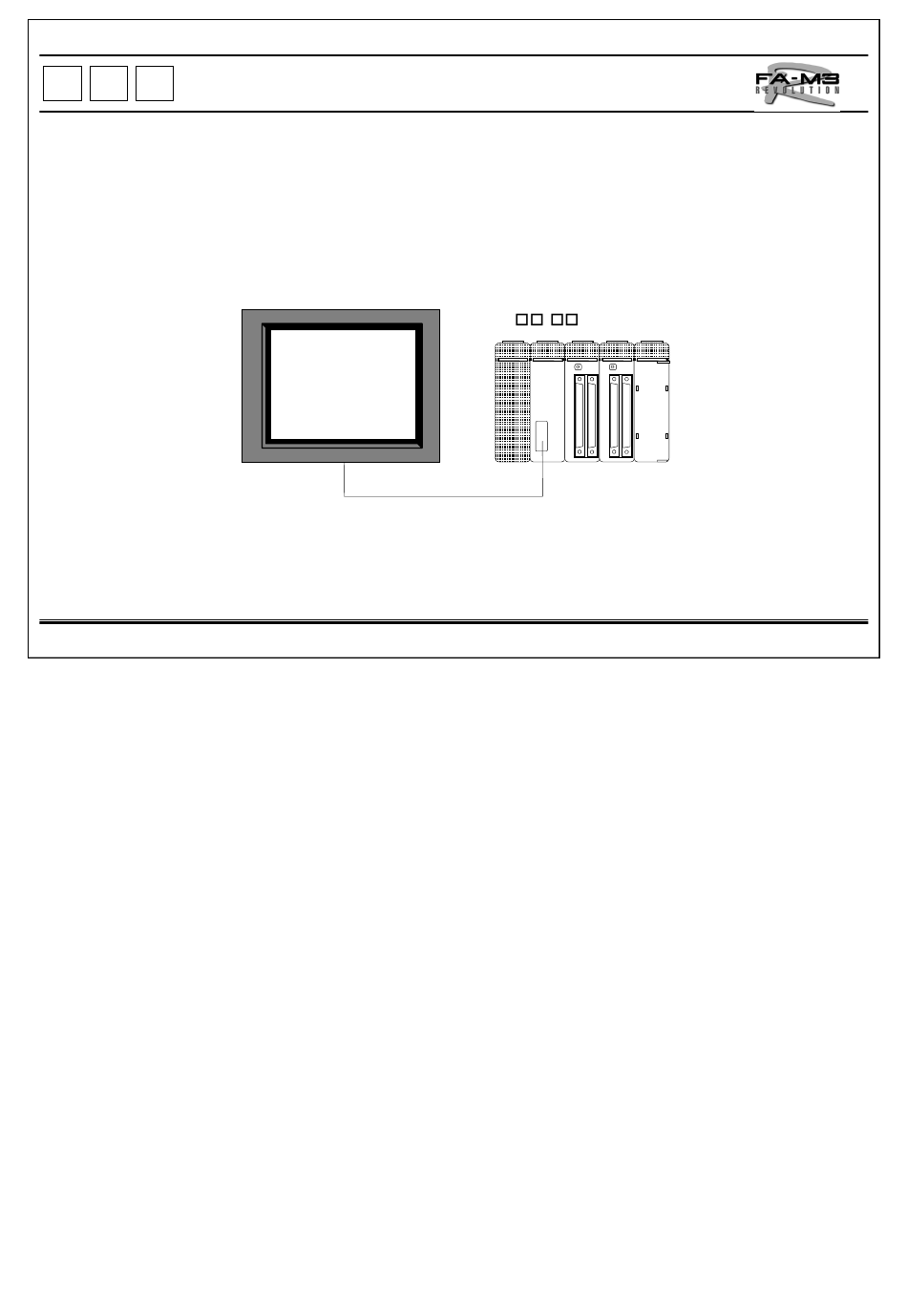

Personal Computer Link via Programming Port
Display Unit
KM11-2T, -3T or -4T
D-sub 9-pin female; approx. 3, 5, or 10 meters long, respectively
KM10C-0C
D-sub 9-pin female; approx. 0.5 meter long
F3SP
-
RS-232-C
FA-M3 R
38
