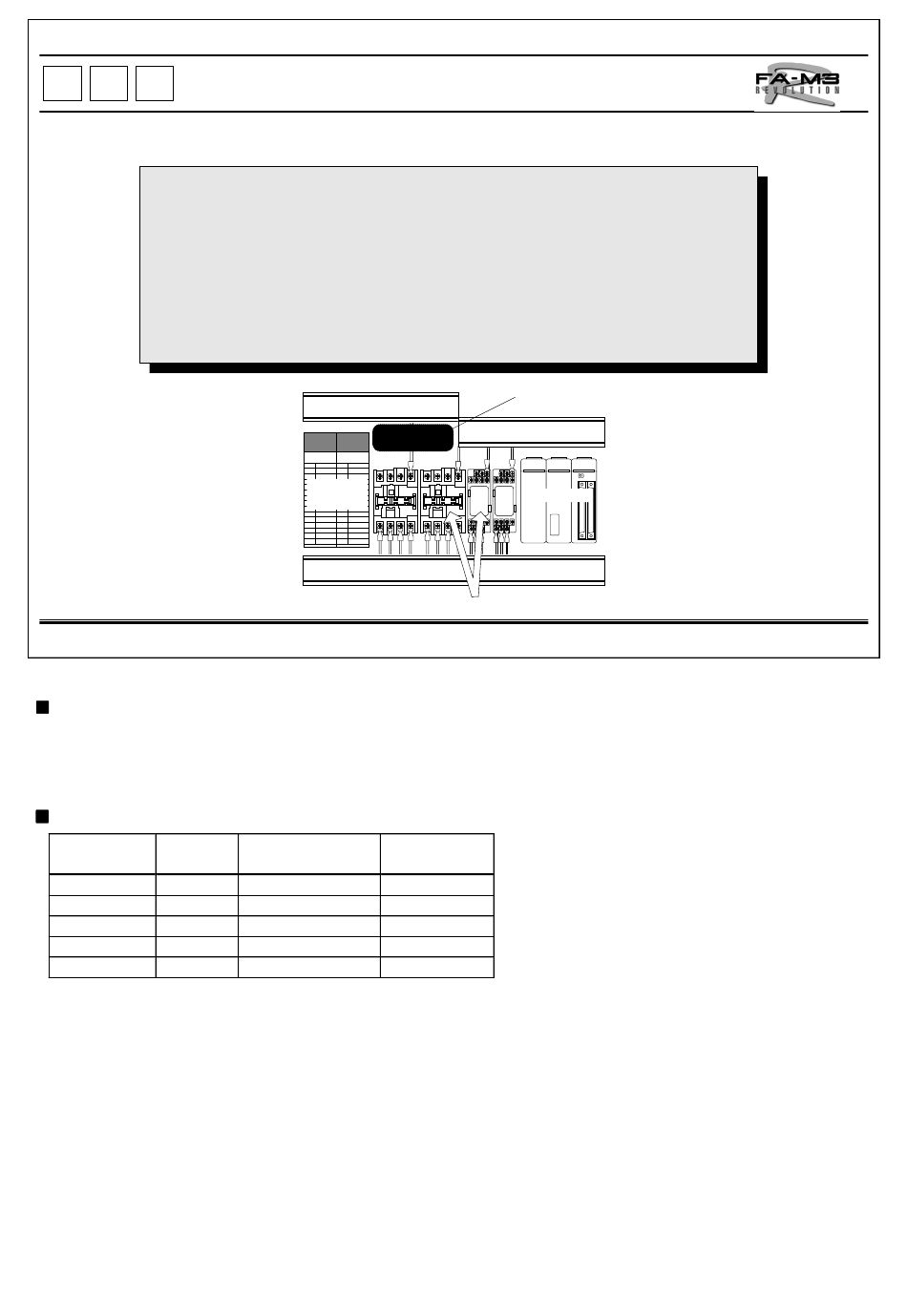

Compact Size - YOKOGAWA Revolution FA-M3 R Technical Information

P L C
P L C
• To provide ample room for additional modules
• To allow installation of the controllers without affecting the machine design and
safety of the user factory (allowing perspective facilities)
• To help standardize control panels
• To reduce the size of the control panel to be minimized regardless of the
controller scale
• To reduce costs
Design concept: PLC is a substitute for relays
The FA-M3 R is packaged into the size of usual relays and conductors, and is designed for installation in the
same row with those inside a panel, thus allowing effective internal design of the panel.
Dimensions
Base
Slots
Module
F3BU04-0N 4
F3BU06-0N 6
F3BU09-0N 9
F3BU13-0N 13
F3BU16-0N 16
* Dimensions of a base module with I/O modules installed in it (excluding connectors and terminals blocks)
TI 34M6A01-01E

Compact Size

Postcard-size Controller
Why does a controller need to be smaller?
Duct
Other
manufacturer's
PLC
Duct
Mounting Depth of
Dimensions Module
(mm)
100 x 147
100 x 205
100 x 322
100 x 439
100 x 537
Waste space
Duct
FA-M3 R
Relays, conductors, etc.
*
(mm)
88.5
88.5
88.5
88.5
88.5
5
