(F3Rs22-0N, F3Rs41-0N) Fa-M3 Value - YOKOGAWA Revolution FA-M3 R Technical Information

P L C
P L C
FA-M3's extensive functions and unrivaled performance come at an economic price.
A special set of CPU, power supply and I/O modules is offered
The FA-M3 value pack,F3SC21-1N,is a compact controller composed of:
An F3BU04-0N four-slot base module
An F3SP05-0P sequence CPU module with power supply unit and memory
An F3WD64-3N input/output module with 32 input and 32 outputs
F3BU04-0N base
module
F3SP05-0P
sequence CPU
module
F3WD64-3N
input/output module

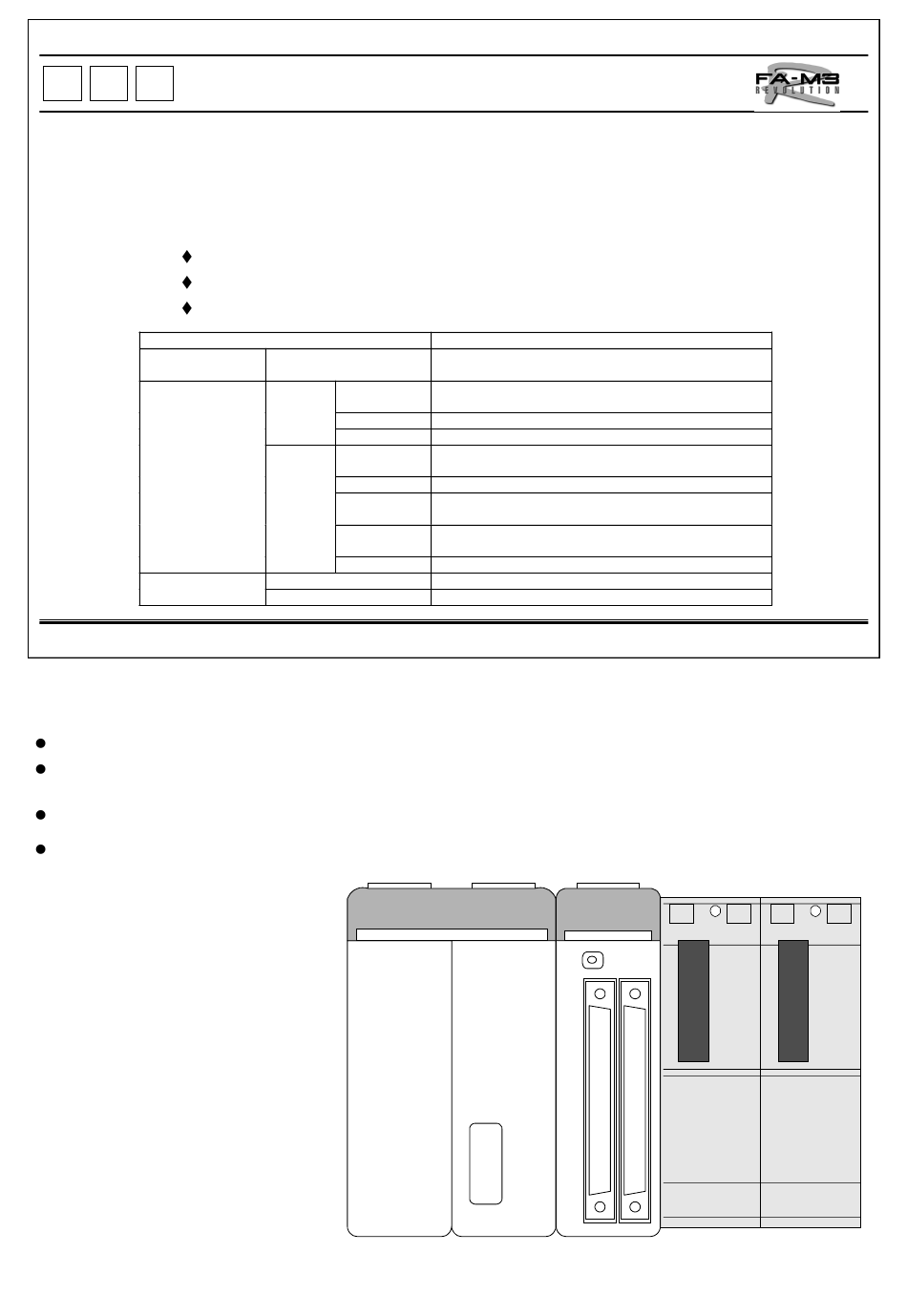

F3SC21-1N Value Pack
Ultra-compact to save space inside the panel.
The sequence CPU module can receive a universal power supply voltage ranging from 100 to 240 V AC, so
the power supply need not be considered.
High-speed execution of instructions facilitates development of applications with a fast response.
Installing an optional ROM pack allows programs and data to be saved.
TI 34M6A01-01E
FA-M3 Value
at a discount price as a value pack
Item
Number of slots 4 (available spare slots: 2)
Input power
100-240 V AC, single phase, 50/60 Hz
Power supply voltage
supply unit Rated output 5 V DC, 2.0 A
Others The same as F3PU10-0N
Programming
Structured ladder, mnemonic
language
Instructions BASIC instructions:25 kinds; application instructions:227 kinds
Sequence Program
5K steps (can be saved to a ROM)
CPU capacity
Number of I/O
Max.2048
points
Others The same as F3SP21-0N
Input 32 DC voltage inputs,rated voltage: 24 VDC
Output 32 transistor contacts(sink);rated voltage: 24 VDC
RUN
SP05-0P
Specification
14 91317212529
RDY
26101418221630
37111519232731
RUN
48121620242832
WD64-3N
CPU
DC IN
DISPLAY
1 2
PROGRAMMER
F3SC21-1N
