YOKOGAWA Revolution FA-M3 R Technical Information page 30

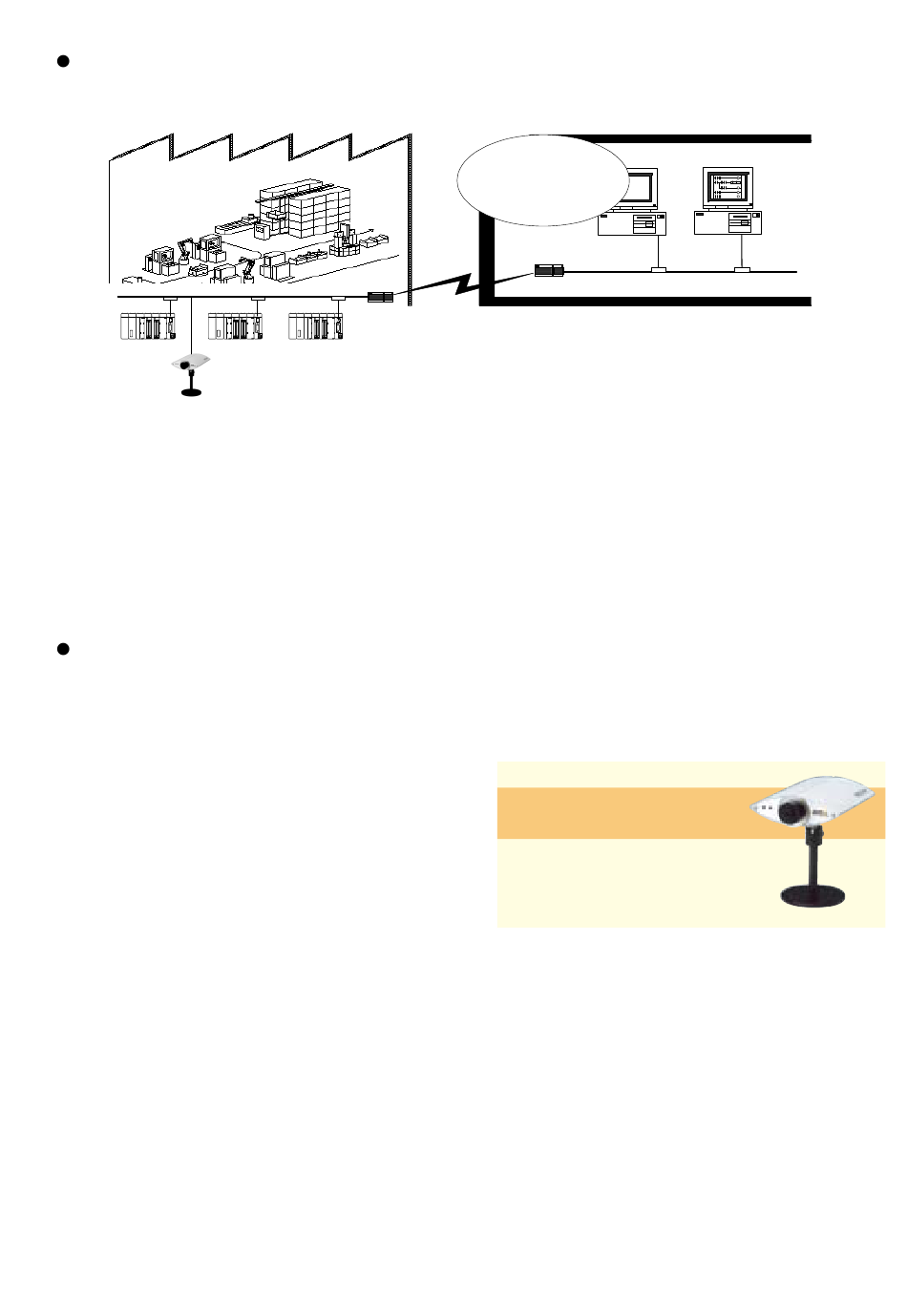

Remote OME via Ethernet and Dial-up Router
Factory / Plant
F3LE0
FA-M3 R FA-M3 R
1-5T
• Remote OME is made available in various facilities at plants via Ethernet. Moreover, by using a public
phone line with dial-up routers as shown in the figure above, remote OME of equipment from
headquarters is possible through the FA-M3 R controllers connected to the Ethernet network inside
respective plants, even if they are located abroad.
Remote Maintenance Camera*
• Ethernet is fast enough to transmit large amounts of data such as images and sounds. By installing a
network camera and sound interface, you can perform remote OME while monitoring live images of the
equipment status captured by the camera.
Features of the remote maintenance camera:
• Nothing else needed for connection to Ethernet, as
web sever capabilities are built in.
• The captured image can be viewed using general
browsers including Netscape Navigator and Internet
Explorer.
• Manufactured by Axis Communications.
TI 34M6A01-01E
Ethernet
FA-M3 R
Dial-up router
Remote maintenance
camera
Engineering Dept. / Headquarters
Operating status
monitoring, program
modofication, program
start/stop, and error log
reading
Public
Windows-based
phone
Line
Dial-up router
Image Viewing via Ethernet
Network Camera for
Remote Maintenance
AXIS 200 + Camera Server
The AXIS 200 full-color, digital network
camera and the Camera Server from
AXIS Communications bring you a real-
time view of the remote location.
DOS-based
PC PC
Ethernet
26
