A.4 Remove the Floppy Disk Enclosure
To access the jumpers, remove the floppy disk drive enclosure.

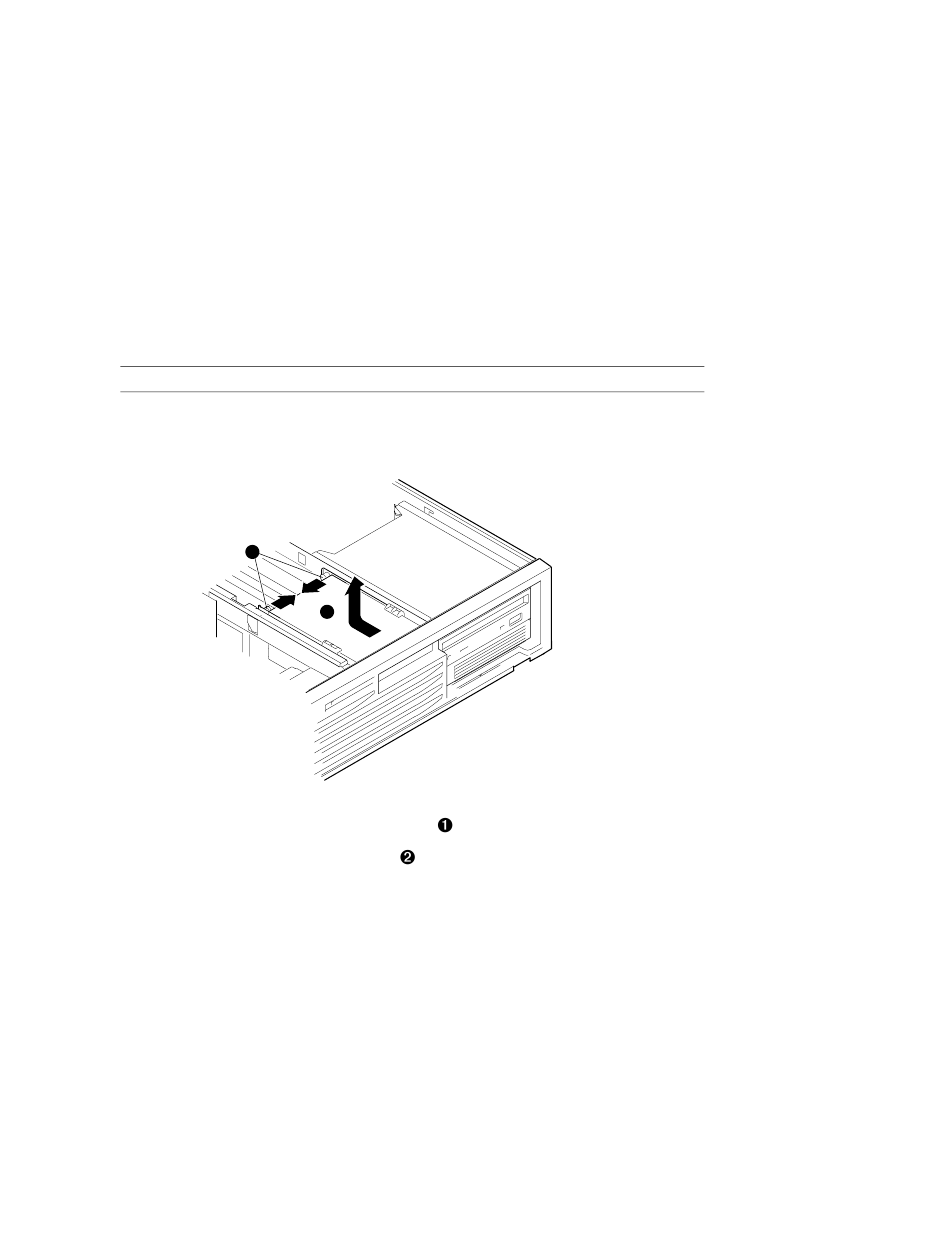

Figure A–3 Removing the Floppy Disk Enclosure
1. Hold on to the cylinder pins, which secure the floppy disk enclosure. Pull
the pins toward the center (see Figure A–3
2. Pull the floppy drive unit back and up
3. Place the unit on top of the CD-ROM drive. You do not need to remove the
cables. Cable lengths have been designed to move the unit out of the way
without disconnecting.
1
2
.
PK1018-99
)
.
Setting Jumpers A-5
