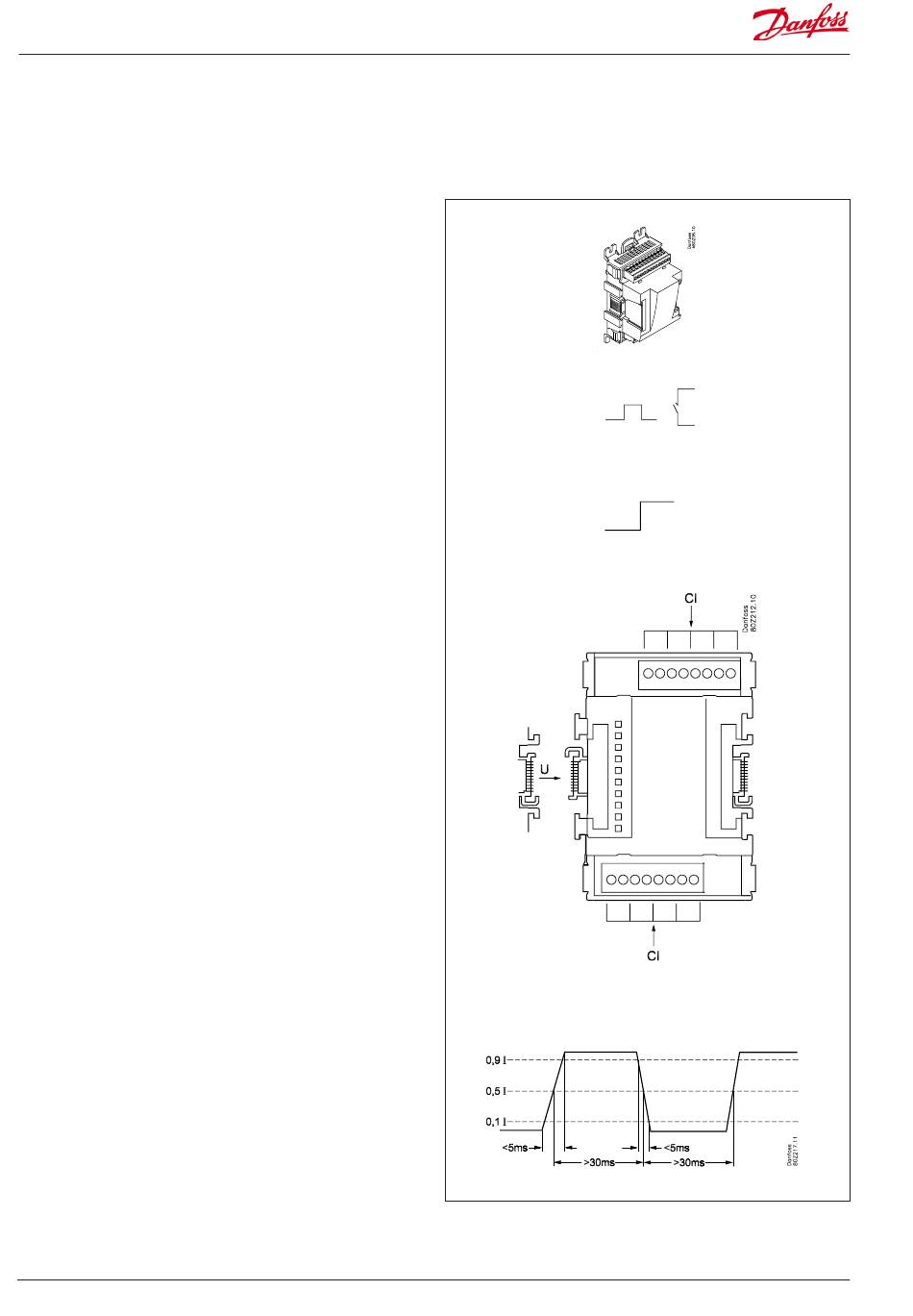

Extension module AK-XM 107A

Function
The module contains eight inputs for pulse counting.
AK-LM 340 can detect signals from 8 pulse signals.
Supply voltage
The supply voltage for the module comes from the previous mod-
ule in the sequence.
LEDs
These indicate the following:
• Voltage of the module
• Communication with the controller is active (red = error)
(There is no LED indication for the individual signal inputs)
Signal
The signal is registered in accordance with DIN 43864.
Rise times and fall times must be less than 5 ms.
On and off times must be greater than 30 ms.
