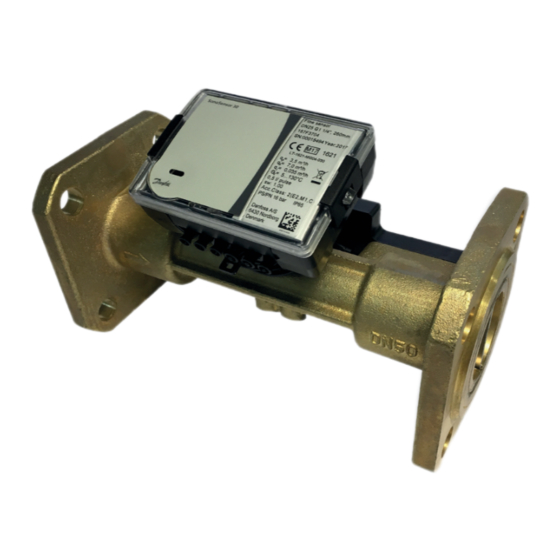

- Page 1 Installation & User Guide SonoSensor 30 Ultrasonic flow meter for heating and cooling applications...
- Page 2 Installation & User Guide SonoSensor 30 Note! To ensure latest version of declaration, please visit danfoss.com. 2 | © Danfoss | Energy Meters | 2020.11 AN271156466186en-010201...
-
Page 3: Table Of Contents
3.3 Wiring SonoSensor 30 to energy calculator Infocal 9 ....... . -
Page 4: Safety Notes And Product Information
Pipe position: No limitations but avoid positions Rotation in pipe axis: Flow sensor should be where air can be collected. angled in 45 to 315° to avoid air collection in flow sensor. 4 | © Danfoss | Energy Meters | 2020.11 AN271156466186en-010201... -
Page 5: Mounting Of Electronic Unit
SonoSensor 30 Inlet/outlet conditions SonoSensor 30 sizes from DN15 to DN50 don’t need any calming sections before and after the flow sensor. In order to maximize performance for sizes DN65, DN80 and DN100 it is necessary to have straight inlet and outlet flow conditions 5xDN before and 3xDN after the flow sensor. -
Page 6: Electrical Wiring
Description Mains supply 24 V AC/DC (bipolar) Mains supply 24 V AC/DC (bipolar) 3.3 Wiring SonoSensor 30 to energy calculator Infocal 9 SonoSensor 30 in return pipe Infocal 9 terminal SonoSensor 30 in return pipe Infocal 9 terminal 18 (flow pulse) -
Page 7: Commissioning
3: Mounting seal after installation 5. Power supply SonoSensor 30 can be powered from lithium battery (12 years life time) or from external supply. Battery 3,6V, 2,4Ah lithium battery with 12 years of battery lifetime is fitted in flow sensor. The battery is not to be charged, replaced or short-circuited. -
Page 8: Disposal
Other plastic parts PC, PPS, PEI, TPE Plastic recovery 7. Local Importer name and address For goods delivered to UK, importer name and address is: Danfoss Ltd. Oxford Road UB9 4LH Denham AN271156466186en-010201 © Danfoss | Energy Meters | 2020.11 | 8...
