Set plant type

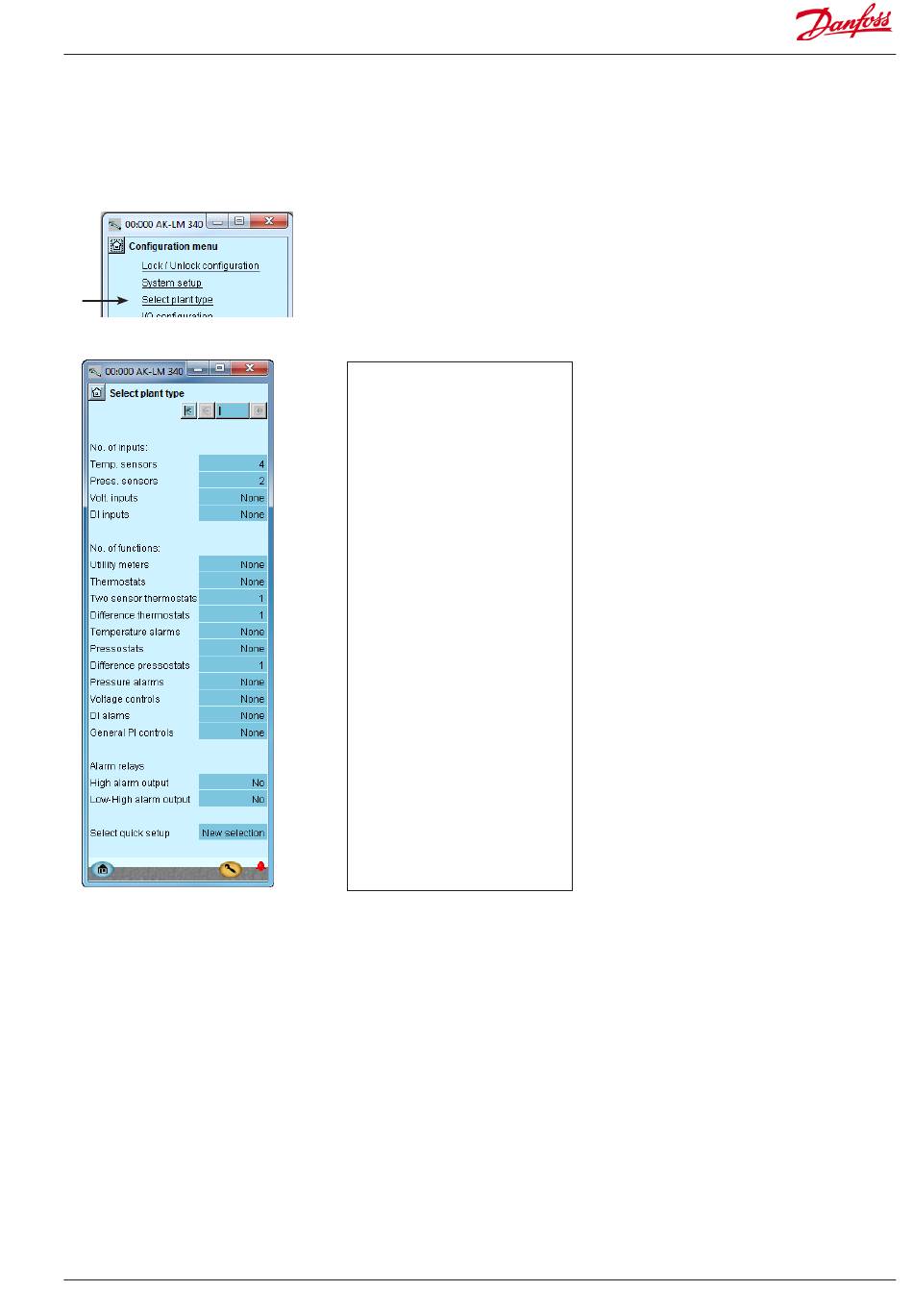

1. Go to Configuration menu
2. Select plant type
Press the line Select plant type.
3. Set plant type
AK-LM 340
In the example, we have decided to
use the following number of input
signals :
• 4 temperature sensors
• 2 pressure sensors
and following functions::
1 two sensor thermostat
1 difference thermostat
1 difference pressostat
RS8GV202 © Danfoss 2016-06
3-
Select plant type
Select how many measurements of each type that will be
used by the controller here.
One measurement can be used by several functions,
so that, later, when setting the individual function, you
select the measurement that will be used.
Measurements
Number of temperature sensors:
Number of pressure readings:
Number of voltage inputs:
Number of digital inputs (DIs):
Function
Number of energy readings:
Number of thermostats
Number two-sensor thermostats
Number difference thermostats
Number temperature alarms
Number of pressostats
Number of difference pressostats
Number of pressure alarms
Number of voltage controls
Number of DI alarms
Number of PI controls
Alarm relays
Define whether a relay which is enabled for alarms with
high priority is to be used.
Define whether a relay which is enabled for alarms with
all priorities is to be used.
If an alarm relay is defined, it will activate an alarm that
must be reset externally.
Quick setup
The function is reserved for a later, quick setup
sequence.
It also contains a "return to factory settings" function.
