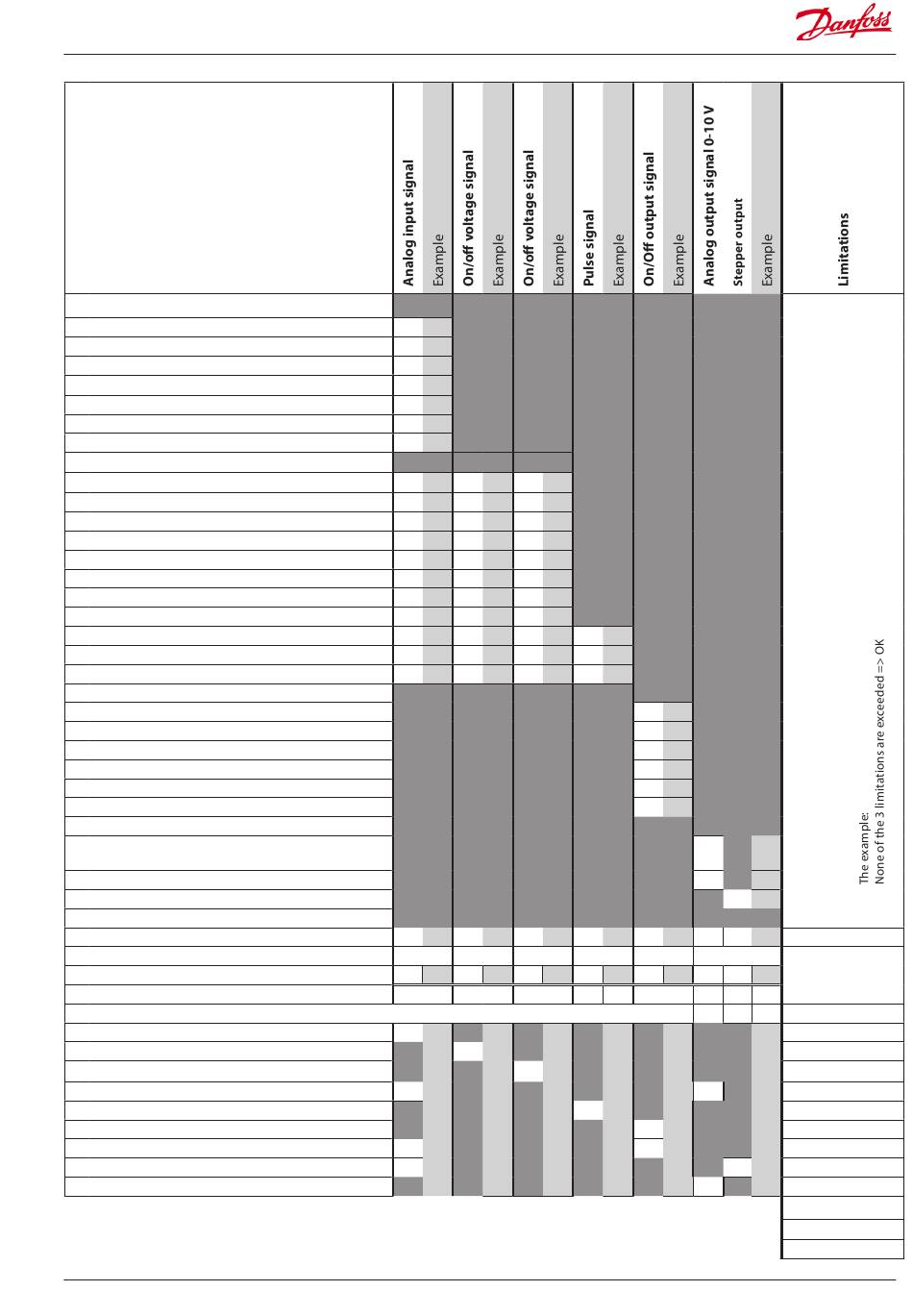

Planning table

The table helps you establish whether there are
enough inputs and outputs on the basic controller.
If there are not enough of them, the controller must
be extended by one or more of the mentioned
extension modules.
Note down the connections you will require and
add them up
Analog inputs
Temperature sensors S1- S40
Voltage signals Volt-input 1-20
Pressure transmitter P1 - P20
On/off inputs (DI1 - DI20)
Monitoring
Extended defrost delays
Case cleaning signal
Signal to reset alarm relay
Pulse inputs
Energy measurement (1-4)
On/off outputs
Relays for thermostat functions (1-25)
Relays for voltage signals (1-5)
Relays for pressostat functions (1-25)
Relays for digital input functions (1-16)
Relays for alarm function (1-2)
Analog control signal, 0-10 V
Frequency converter, Compressor, fans, pumps, valves
etc.
Valves with stepper motor. Parallel valves, if applicable
5
Sum of connections for the regulation
Number of connections on a controller module
Missing connections, if applicable
6
The missing connections to be supplied by one or more extension modules:
AK-XM 101A (8 analog inputs)
AK-XM 102A (8 digital low voltage inputs)
AK-XM 102B (8 digital high voltage inputs)
AK-XM 103A (4 analog inputs. 4 analog outputs)
AK-XM 107A (8 pulse inputs)
AK-XM 204A / B (8 relay outputs)
AK-XM 205A / B (8 analog inputs + 8 relay outp.)
AK-XM 208C (8 analog inputs + 4 stepper outputs)
AK_OB 110 (2 analog outputs)
AK-LM 340
4
2
Contact
6
11 11
0
RS8GV202 © Danfoss 2016-06
24 V 230 V
0 0 0 0 0 0
7
P = Max. 5
2
1
Sum = max. 120
3
8 8 0 0 0
0
Sum of power
___ pcs. á 2 VA = __
___ pcs. á 2 VA = __
___ pcs. á 2 VA = __
___ pcs. á 2 VA = __
___ pcs. á 2 VA = __
___ pcs. á 5 VA = __
___ pcs. á 5 VA = __
___ pcs. á 5 VA = __
___ pcs. á 0 VA = __
1 pcs. á 8 VA = 8
Sum =
Sum = max. 32 VA
