Thermostat functions

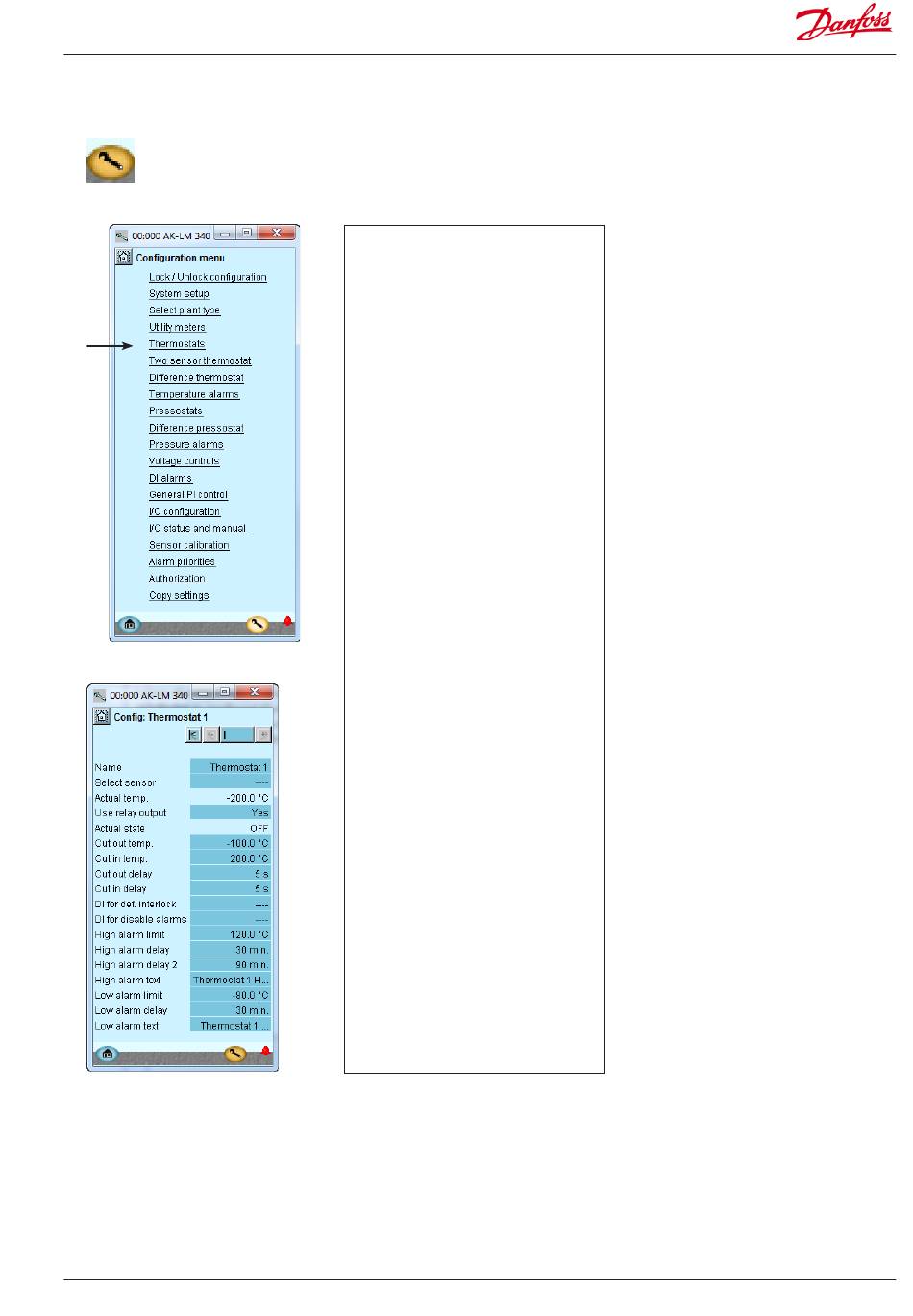

1. Go to Configuration menu
2. Select Thermostats
3. Thermostats
AK-LM 340
We have not used this function in our
example. The image is included for guidance
only.
The name of the function may be xx and
further down in the display the alarm texts
may be entered.
RS8GV202 © Danfoss 2016-06
3 - Thermostats
The general thermostats can be used for thermo-
stat functions with relay output.
The function can be connected to alarm limits
and alarm texts.
For each thermostat set / readout
• Name
• Which of the sensors is used
• Actual temp.
Temperature measurement on the sensor that is
attached to the thermostat
• Relay
Define whether a relay will be used for this func-
tion.
• Actual state
Actual status on the thermostat outlet
• Cut out temp.
Cut-out value for the thermostat
• Cut in temp.
Cut-in value for the thermostat
• Cut out delay
• Cut in delay
• DI-input for defrost interlock
DI signal, which will change the delay time to
"High Alarm delay 2"
• DI input for omitting alarms
If a signal is received, all alarms will be omitted
from the function
• High alarm limit
High alarm limit
• Alarm delay high
Time delay for high alarm
• High alarm delay 2
Time delay for high alarm
A slightly longer delay period used for signals
on the input "DI for def. Interlock"
• Alarm text high
Indicate alarm text for the high alarm
• Low alarm limit
Low alarm limit
• Alarm delay low
Time delay for low alarm
• Alarm text low
Indicate alarm text for low alarm
