Voltage controls

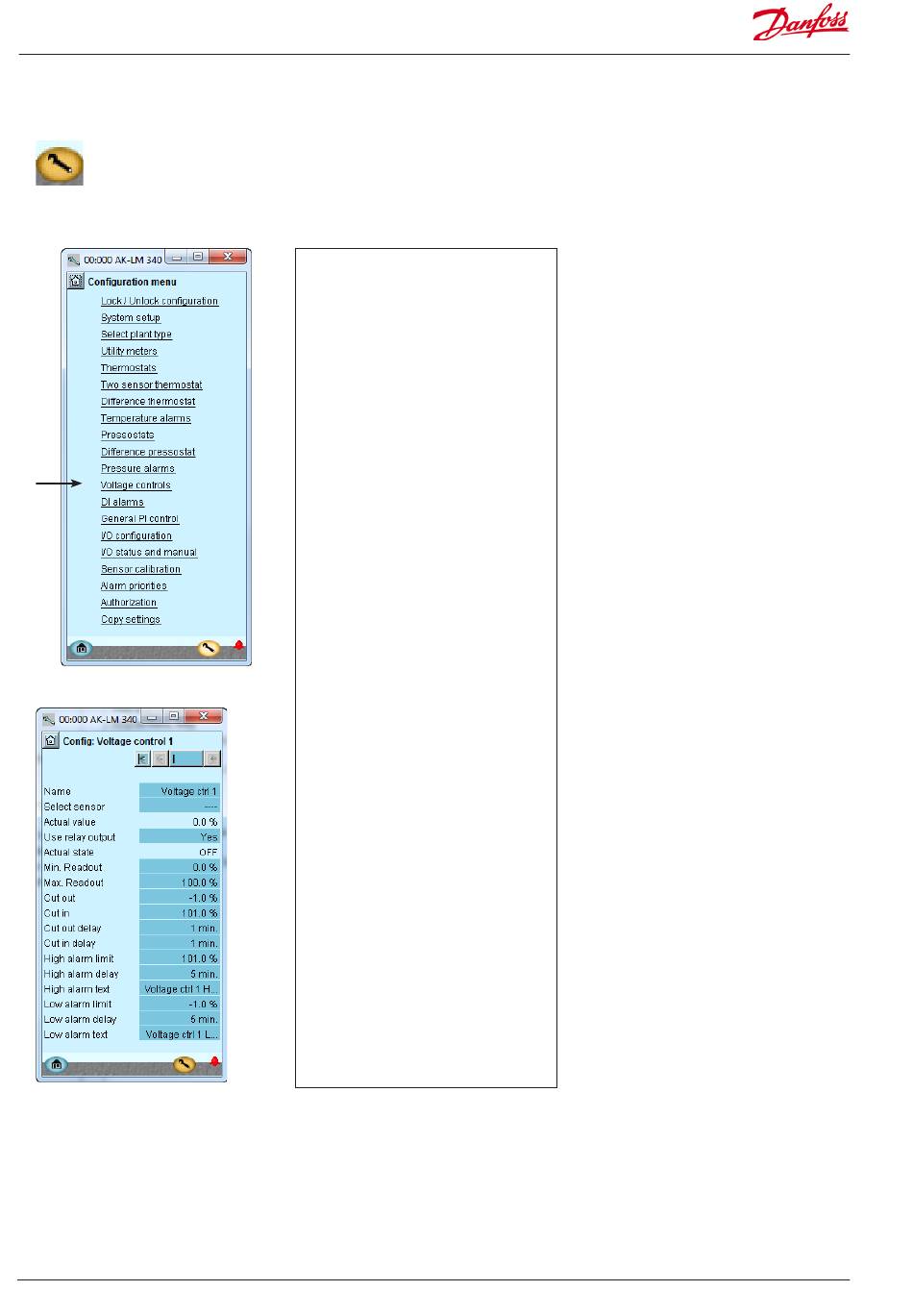

1. Go to Configuration menu
2. Select Voltage control
3. Voltage control
62
We have not used this function in our
example. The image is included for guidance
only.
The name of the function may be xx and
further down in the display the alarm texts
may be entered.
The "Min. and Max. reading" values are your
settings that represent the voltage range's
lower and upper values. For example, 2 V and
10 V (the voltage range is selected under I/O
set-up).
RS8GV202 © Danfoss 2016-06
3 - Voltage inputs
The general volt inlet can be used to monitor
external voltage signals. Each volt inlet has a
separate outlet to control external automatic
controls.
For each voltage function setup /:
• Name
• Which voltage measurement is used
• Actual value
= read-out of the measurement in %
• Choose whether the function is to use a relay
• Actual state
= read-out of outlet status
• Min. readout
State read-out values at minimum voltage
signal
• Max. readout
State read-out values at maximum voltage
signal
• Cutout
Cut-out value for outlet (scaled value)
• Cutin
Cut-in value for outlet (scaled value)
• Cutout delay
Time delay for cut-out
• Cut in delay
Time delay for cut-in
• High alarm limit
High alarm limit
• High alarm delay
Time delay for high alarm
• High alarm text
Set alarm text for high alarm
• Low alarm limit
Low alarm limit
• Low alarm delay
Time delay for low alarm
• Low alarm text
Indicate alarm text for low alarm
AK-LM 340
