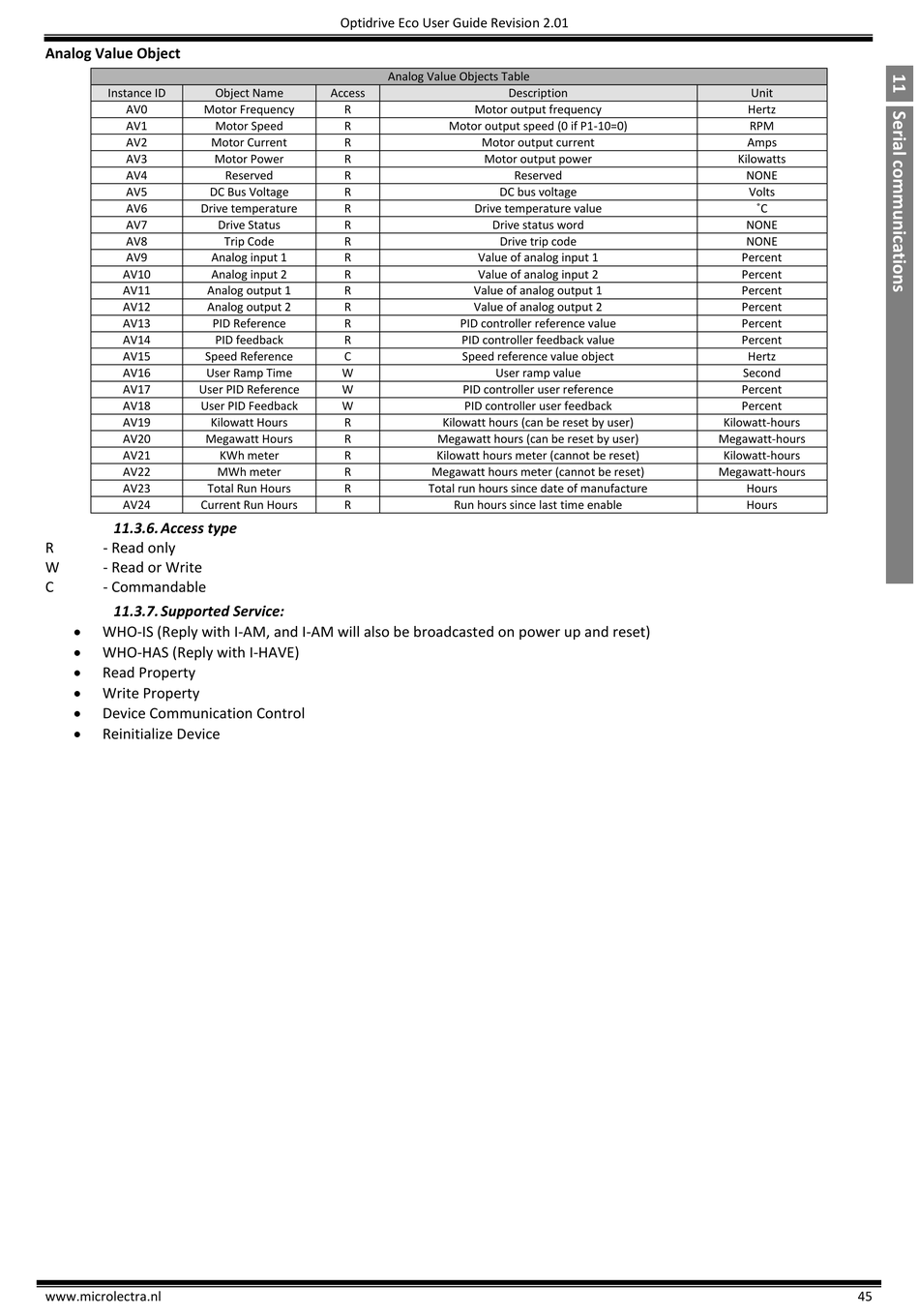

Analog Value Object
Instance ID Object Name
AV0 Motor Frequency
AV1 Motor Speed
AV2 Motor Current
AV3 Motor Power
AV4
AV5 DC Bus Voltage
AV6 Drive temperature
AV7 Drive Status
AV8
AV9 Analog input 1
AV10 Analog input 2
AV11 Analog output 1
AV12 Analog output 2
AV13 PID Reference
AV14 PID feedback
AV15 Speed Reference
AV16 User Ramp Time
AV17 User PID Reference
AV18 User PID Feedback
AV19 Kilowatt Hours
AV20 Megawatt Hours
AV21
AV22 MWh meter
AV23 Total Run Hours
AV24 Current Run Hours
11.3.6. Access type
R - Read only
W - Read or Write
C - Commandable
11.3.7. Supported Service:

WHO-IS (Reply with I-AM, and I-AM will also be broadcasted on power up and reset)

WHO-HAS (Reply with I-HAVE)

Read Property

Write Property

Device Communication Control

Reinitialize Device
www.microlectra.nl
Optidrive Eco User Guide Revision 2.01
Analog Value Objects Table
Access
R
R
R
R
Reserved R
R
R
R
Trip Code R
R
R
R
R
R
R
C
W
W
W
R
R
KWh meter R
R
R
R
Description
Motor output frequency
Motor output speed (0 if P1-10=0)
Motor output current
Motor output power
Reserved
DC bus voltage
Drive temperature value
Drive status word
Drive trip code
Value of analog input 1
Value of analog input 2
Value of analog output 1
Value of analog output 2
PID controller reference value
PID controller feedback value
Speed reference value object
User ramp value
PID controller user reference
PID controller user feedback
Kilowatt hours (can be reset by user)
Megawatt hours (can be reset by user)
Kilowatt hours meter (cannot be reset)
Megawatt hours meter (cannot be reset)
Total run hours since date of manufacture
Run hours since last time enable
Unit
Hertz
RPM
Amps
Kilowatts
NONE
Volts
˚C
NONE
NONE
Percent
Percent
Percent
Percent
Percent
Percent
Hertz
Second
Percent
Percent
Kilowatt-hours
Megawatt-hours
Kilowatt-hours
Megawatt-hours
Hours
Hours
