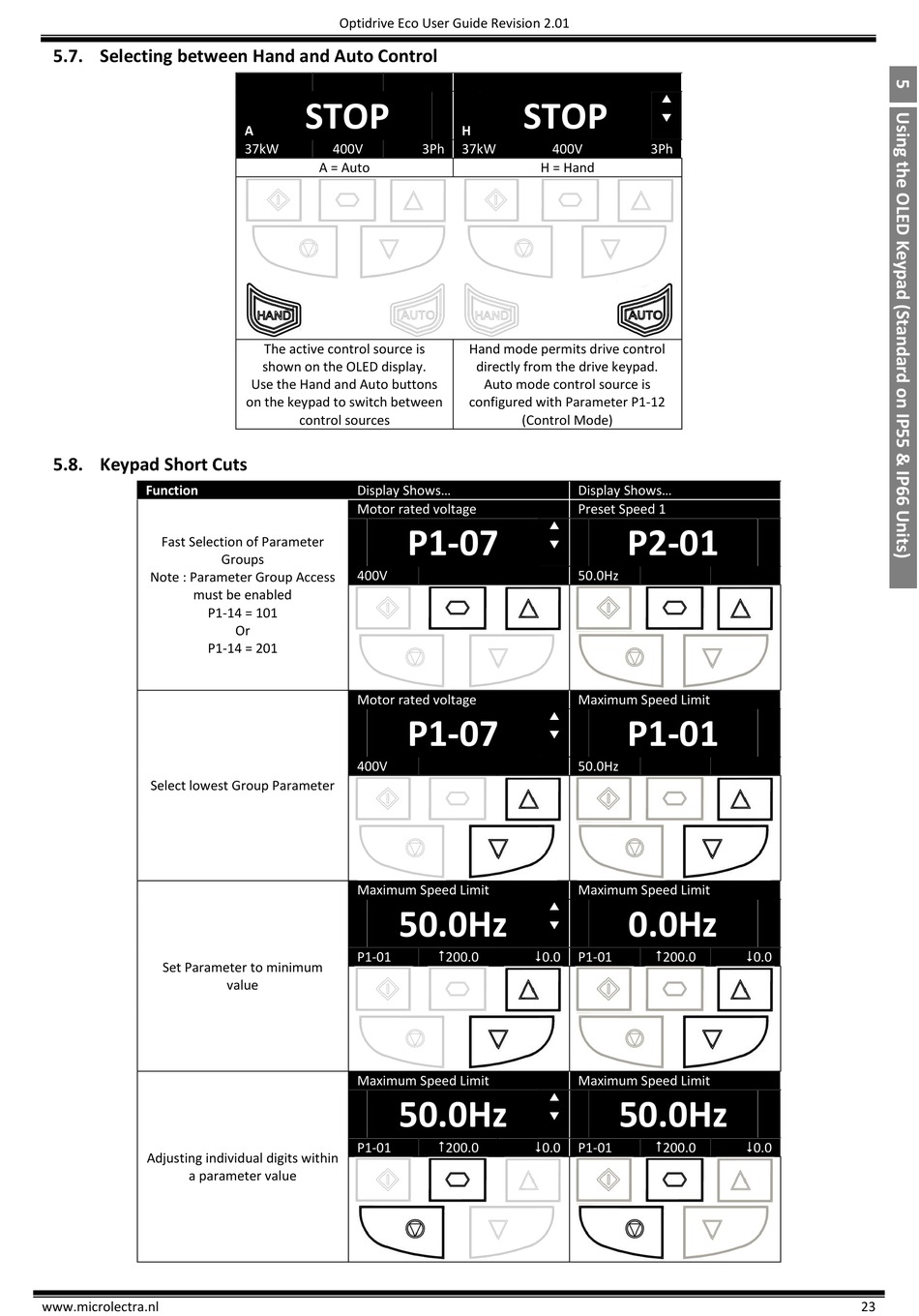

5.7. Selecting between Hand and Auto Control

5.8. Keypad Short Cuts

Function
Fast Selection of Parameter
Note : Parameter Group Access
must be enabled
P1-14 = 101
P1-14 = 201
Select lowest Group Parameter
Set Parameter to minimum
Adjusting individual digits within
a parameter value
www.microlectra.nl
Optidrive Eco User Guide Revision 2.01
STOP
A
37kW 400V
A = Auto
The active control source is
shown on the OLED display.
Use the Hand and Auto buttons
on the keypad to switch between
control sources
Display,Shows
Motor rated voltage
Groups
400V
Or
Motor rated voltage
400V
Maximum Speed Limit
P1-01
value
Maximum Speed Limit
P1-01
STOP
H
3Ph 37kW 400V
H = Hand
Hand mode permits drive control
directly from the drive keypad.
Auto mode control source is
configured with Parameter P1-12
(Control Mode)

P1-07


P1-07


50.0Hz

200.0 0.0

50.0Hz

200.0 0.0


3Ph
Display,Shows
Preset Speed 1
P2-01
50.0Hz
Maximum Speed Limit
P1-01
50.0Hz
Maximum Speed Limit
0.0Hz
200.0 0.0
P1-01
Maximum Speed Limit
50.0Hz
200.0 0.0
P1-01
